MK1009483 Axle with Wheel Bearing and Seal Kit Product Info:

• NICHE Bearing 30x55x30; Diameters Inner (ID) 30mm; Outer (OD) 55mm; Height 30mm
• Axle Compressed Length 16 1/2, Inboard Splines 20T, Inboard Spline Diameter 2 11/16, Outboard Splines 21T, Outboard Spline Diameter 2 3/4, Shaft Diameter 7/8, Thread Measurement M18x1.5

Included in This Kit:

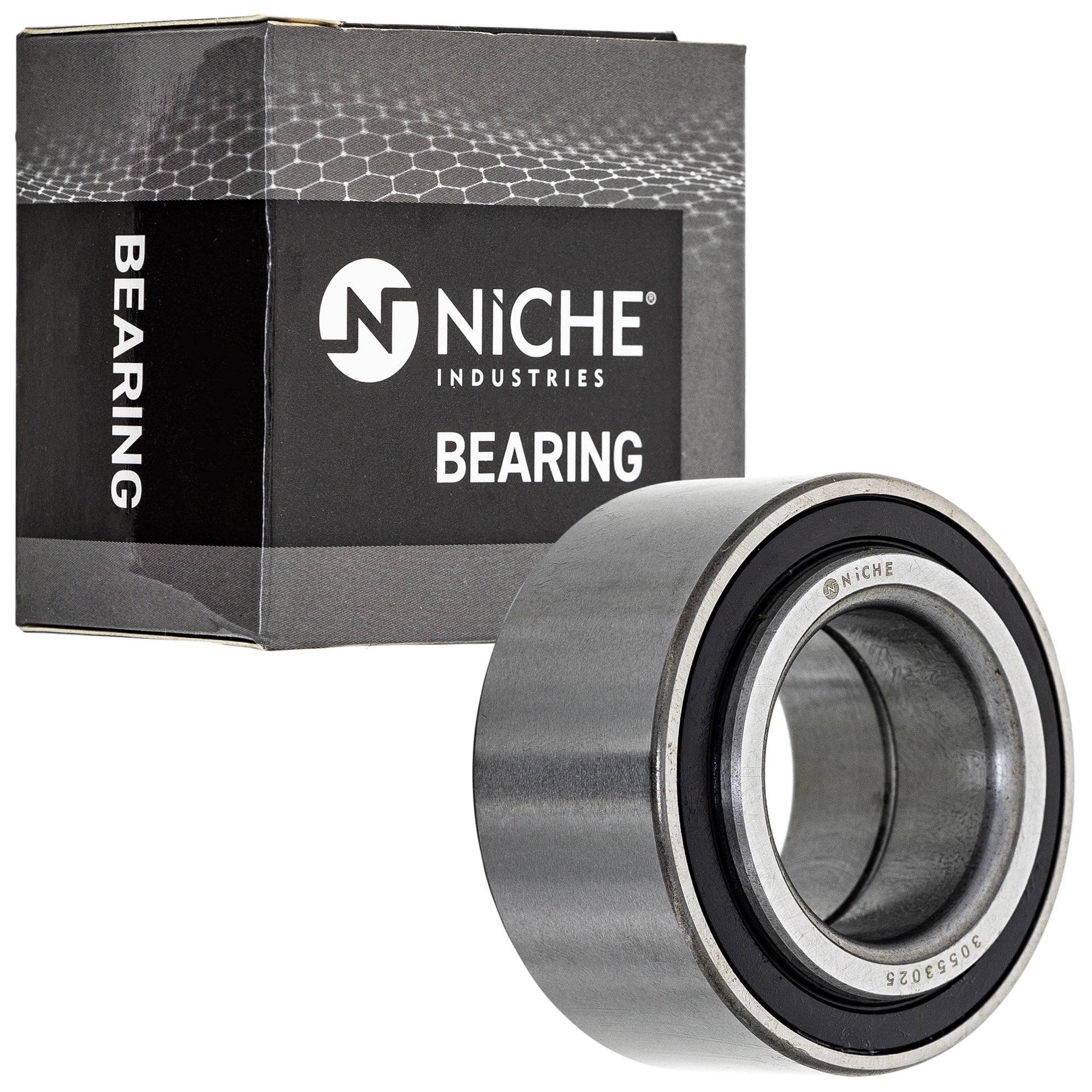

(QTY 1) NICHE 519-CBB2263R Ball Bearing

Substitute For OEM Part Numbers(s): 0402-275, 0402-085

(QTY 1) NICHE 519-CSE2227A Seal Type TCY 40x58x7/12

Substitute For OEM Part Numbers(s): 91209-HN2-003, 91209-HA7-773, 91209-HA7-772, 91209-HA7-771, 2402-610, 09283-40018, 0402-069

(QTY 1) NICHE 519-CSE2276A Seal Type TC 40x55x8

Substitute For OEM Part Numbers(s): 93110-33022-00, 92049-1376

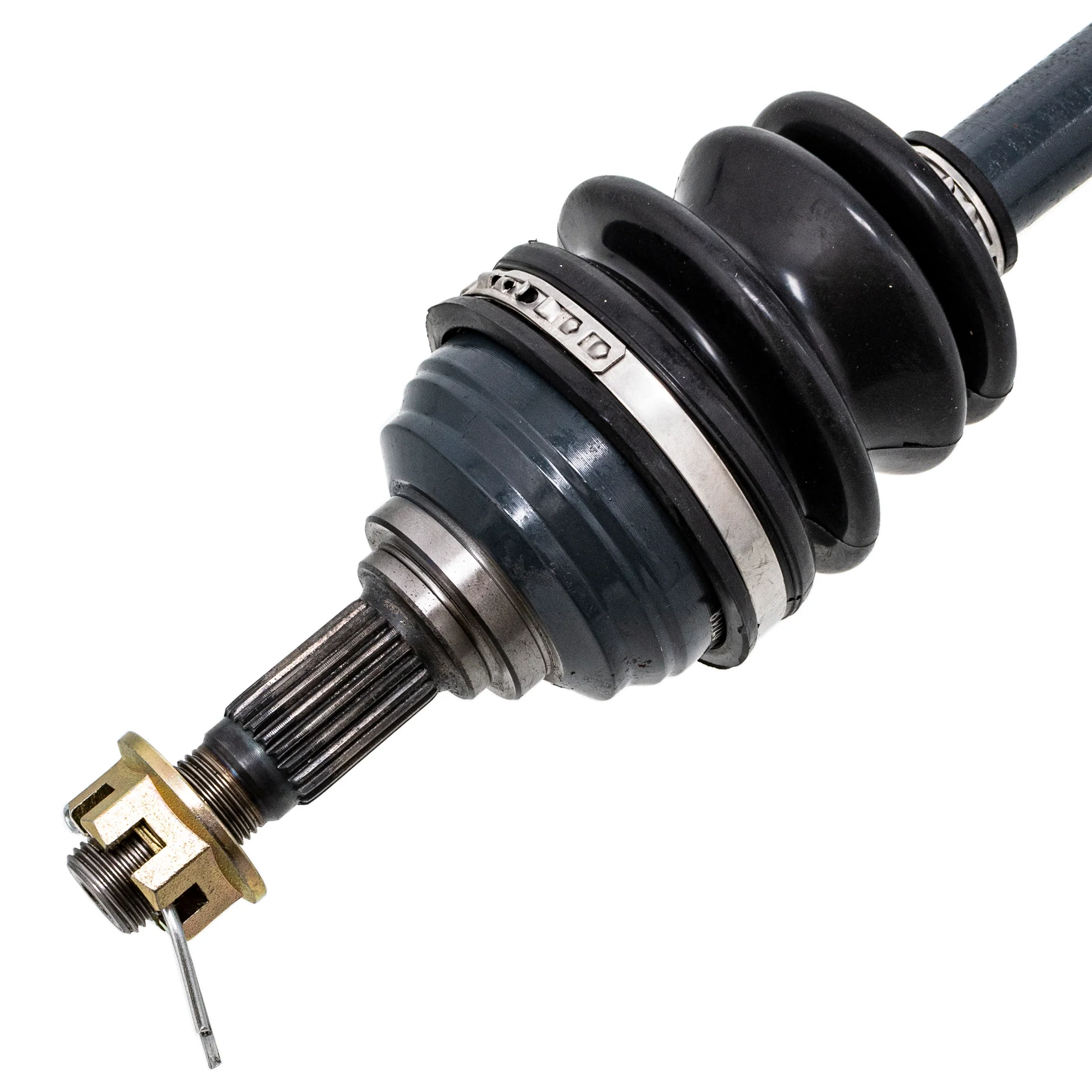

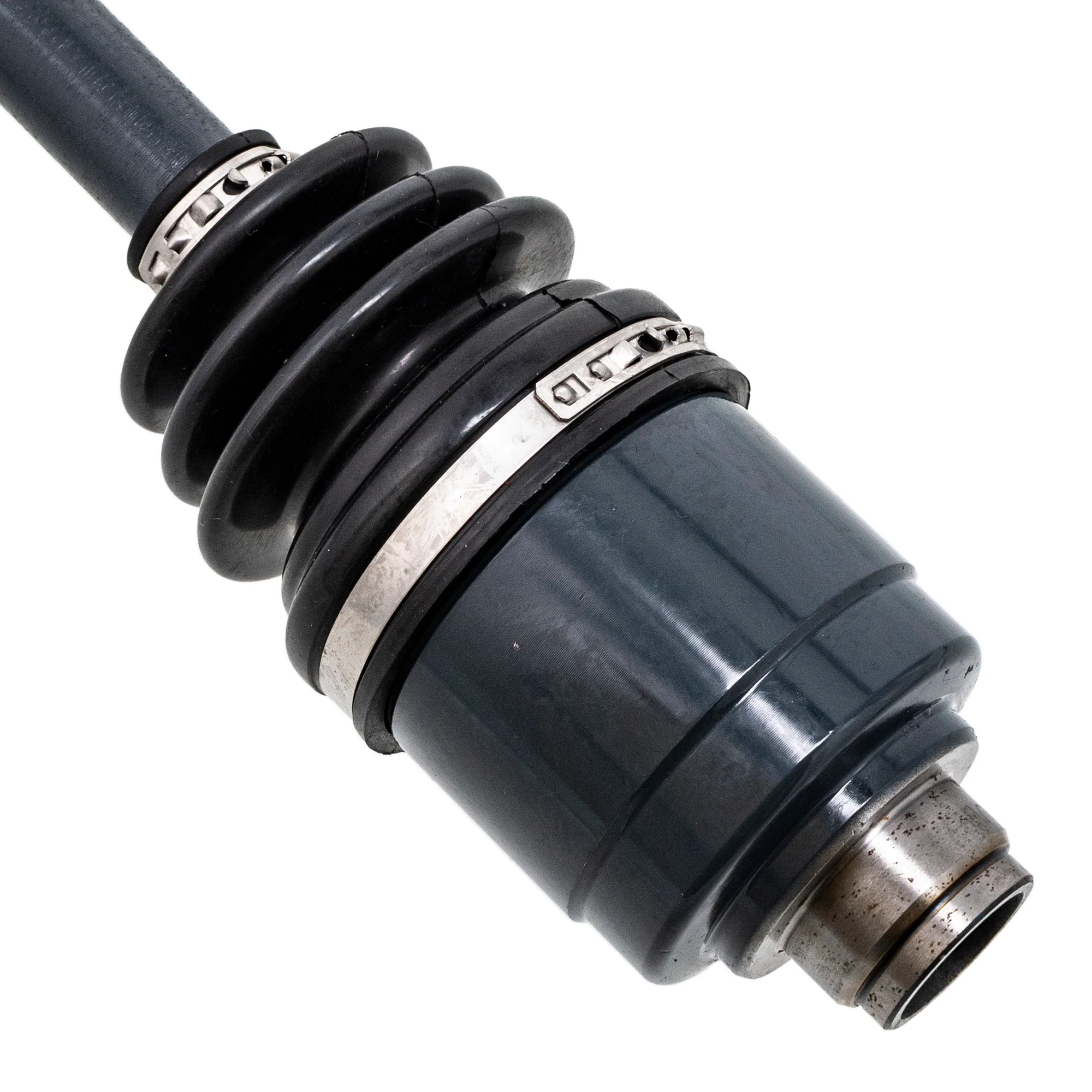

(QTY 1) NICHE 519-KCA2320X Front Left Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 1502-441, 0402-779, 0402-249

Compatible with the Following Vehicles:

Arctic Cat 500: 2001
Arctic Cat 400 2X4: 2001
Arctic Cat 400: 2001
Arctic Cat 300 2X4: 2001
Arctic Cat 300: 1998-2001
Arctic Cat 250 2X4: 2001
Arctic Cat 250: 2001
