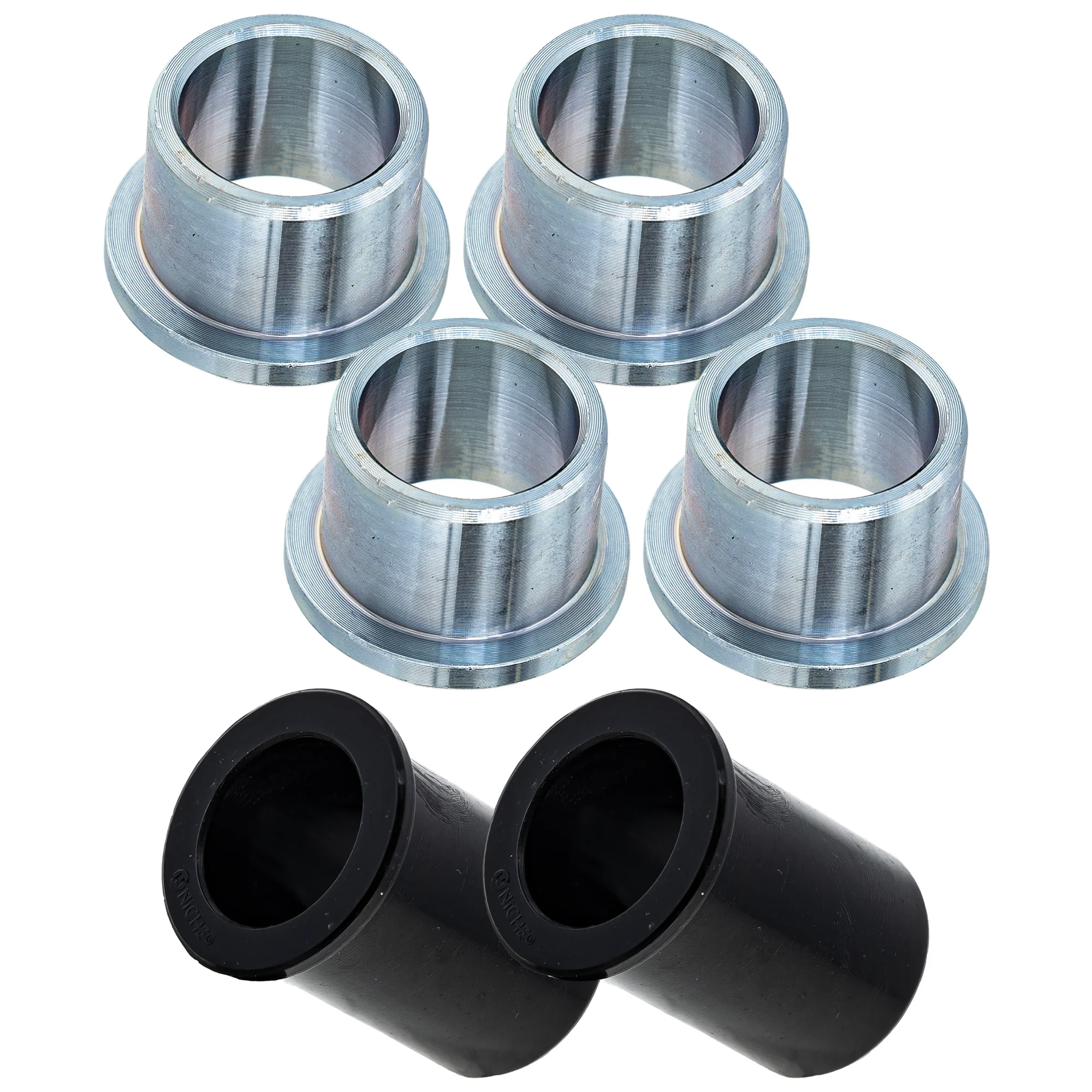

MK1011627 Complete Control A-Arm Swing Arm Bushing Kit Product Info:

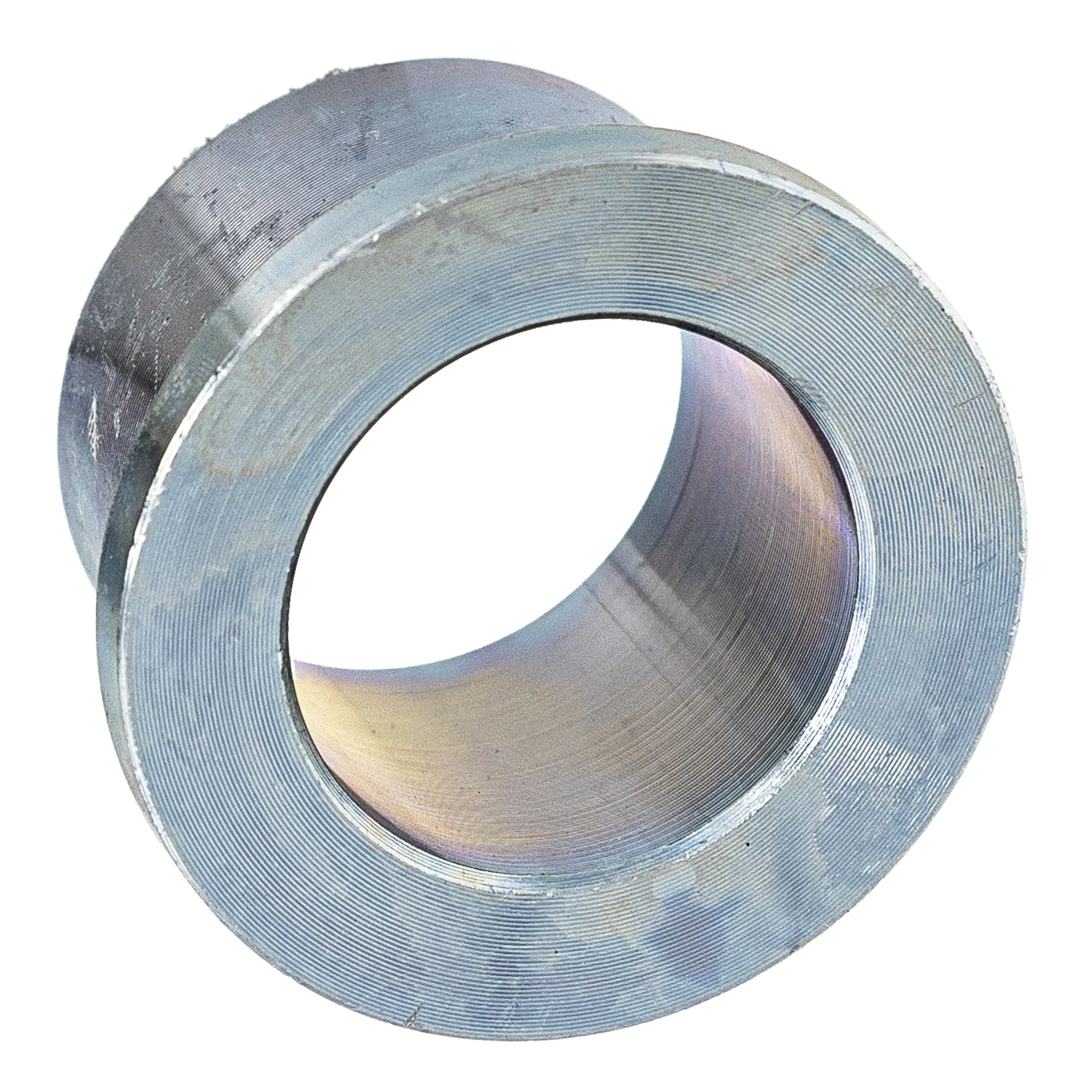

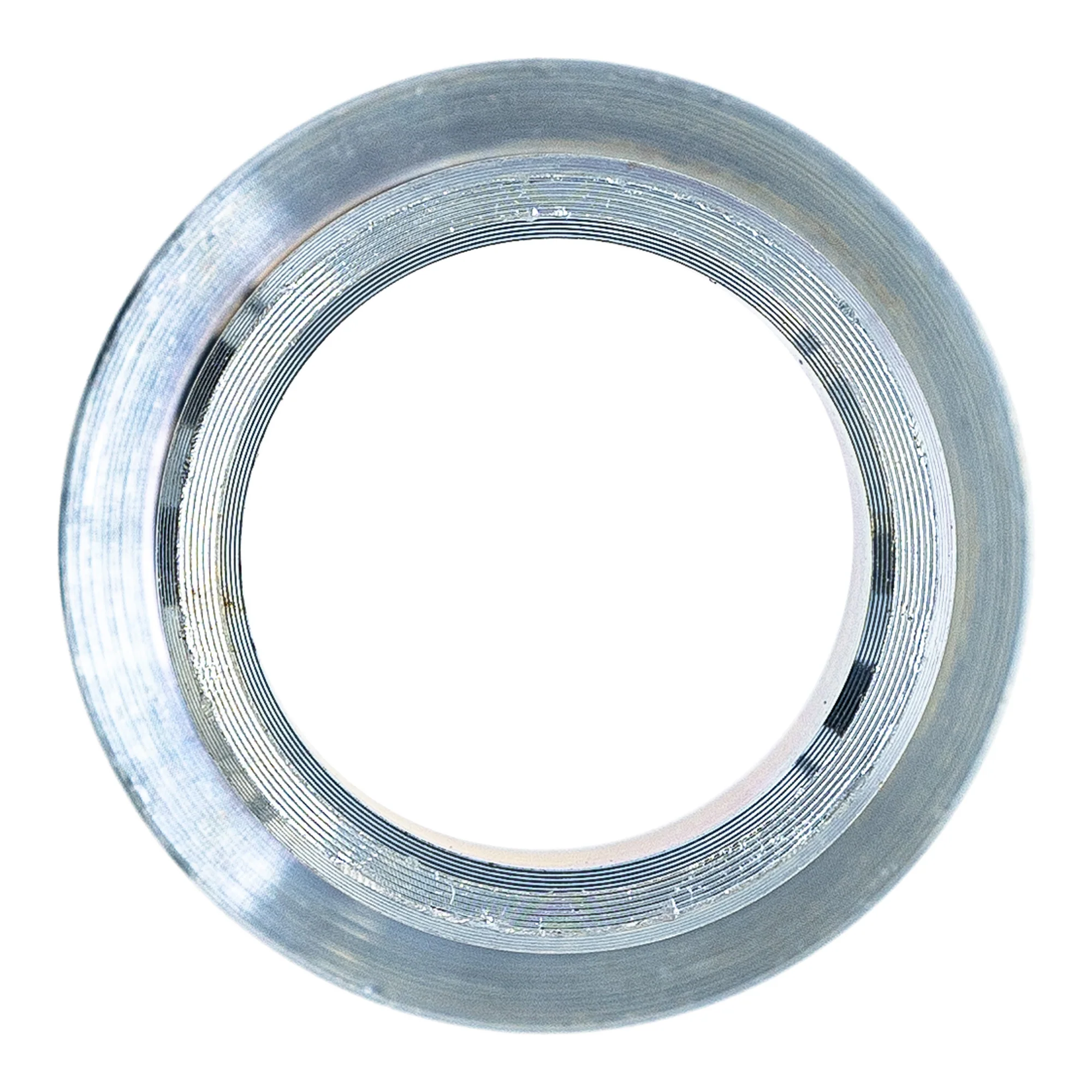

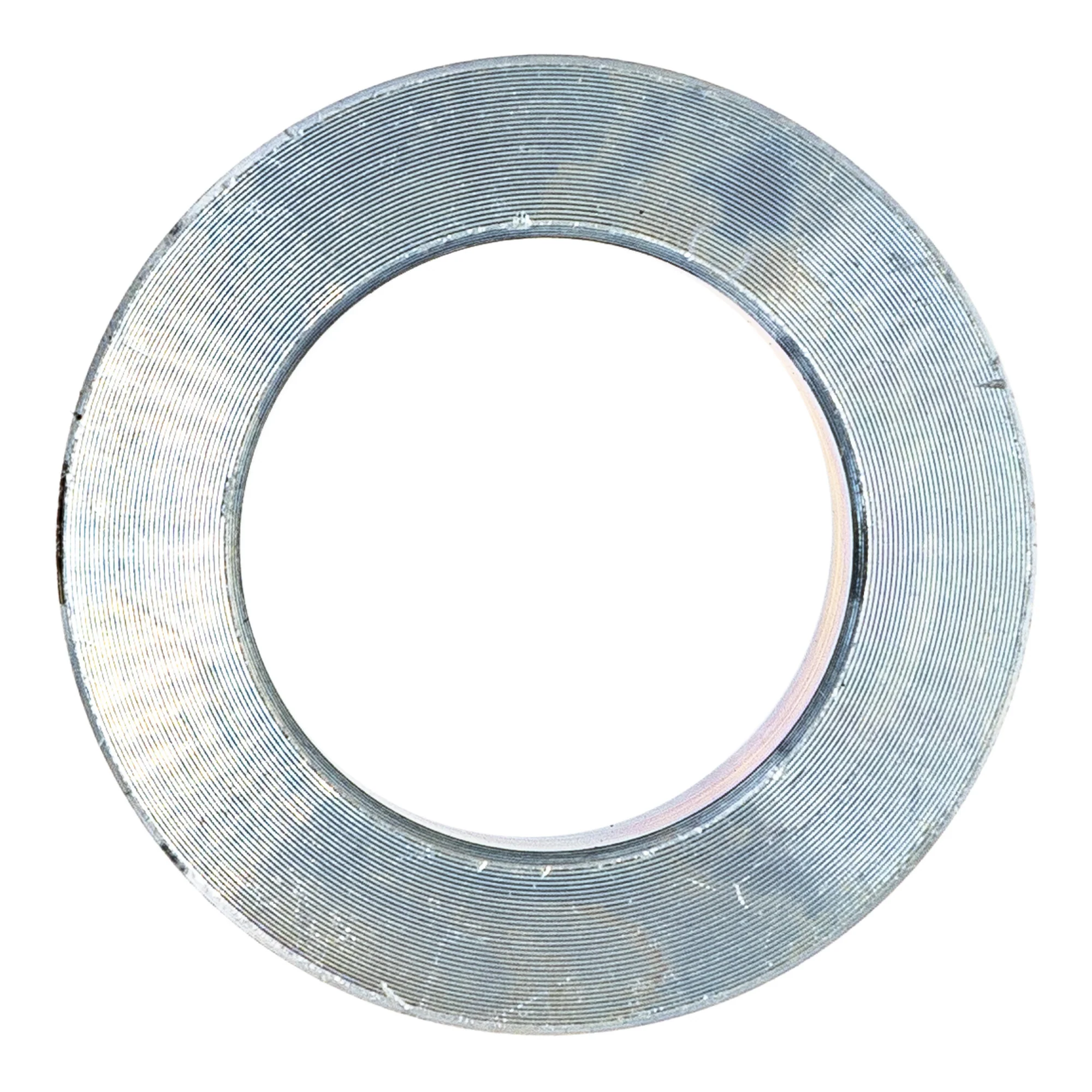

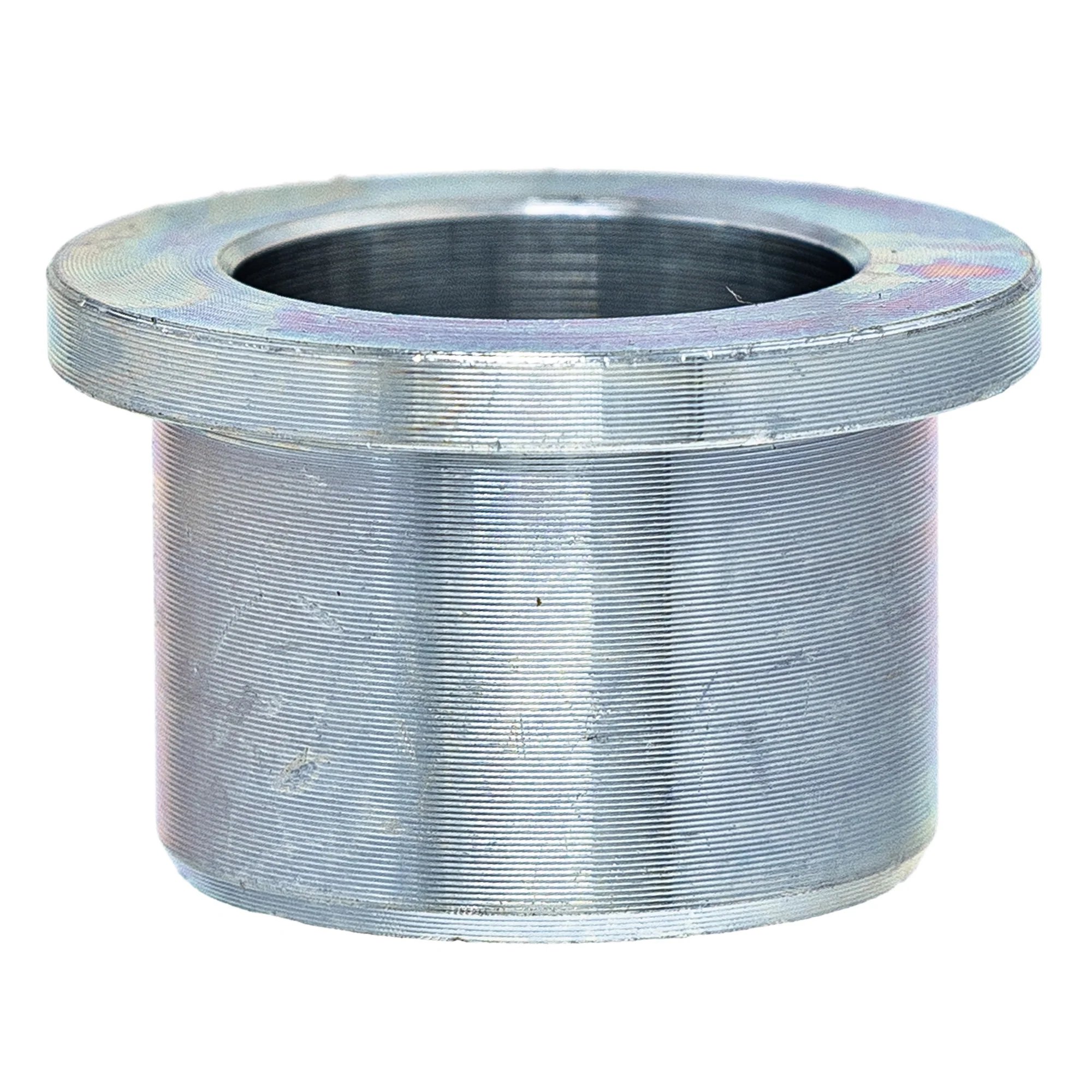

• Bushing - 4, Inner Diameter 1 (Inches) 0.7087; Outer Diameter 1 (Inches) 0.9055; Outer Diameter 2 (Inches) 1.1417; Flange Length to End (Inches) 0.5906; Total Length (Inches) 0.7087; Material; Carbon Steel
• Bushing - 2, Inner Diameter 1 (Inches) 0.7992; Outer Diameter 1 (Inches) 1.0315; Outer Diameter 2 (Inches) 1.2287; Flange Length to End (Inches) 1.4528; Total Length (Inches) 1.5748; Material; Polyoxymethylene

Included in This Kit:

(QTY 4) NICHE 519-CBS2250H Control A-Arm Bushing

Substitute For OEM Part Numbers(s): 51215-VM6-003, 51215-VM6-000

(QTY 2) NICHE 519-CBS2267H Control A-Arm Bushing

Substitute For OEM Part Numbers(s): 52108-KE5-003, 52108-KB9-003, 52108-HB3-000

Compatible with the Following Vehicles:

Honda TRX90 X 2X4: 2012-2024
Honda SporTrax 90 X 2X4: 2009
Honda SporTrax 90 EX 2X4: 2007-2008
Honda SporTrax 90 2X4: 1993-2006
Honda FourTrax 200 Type II 2X4: 1991-1997
Honda FourTrax 200 SX 2X4: 1986-1988
Honda FourTrax 200 2X4: 1990-1991
