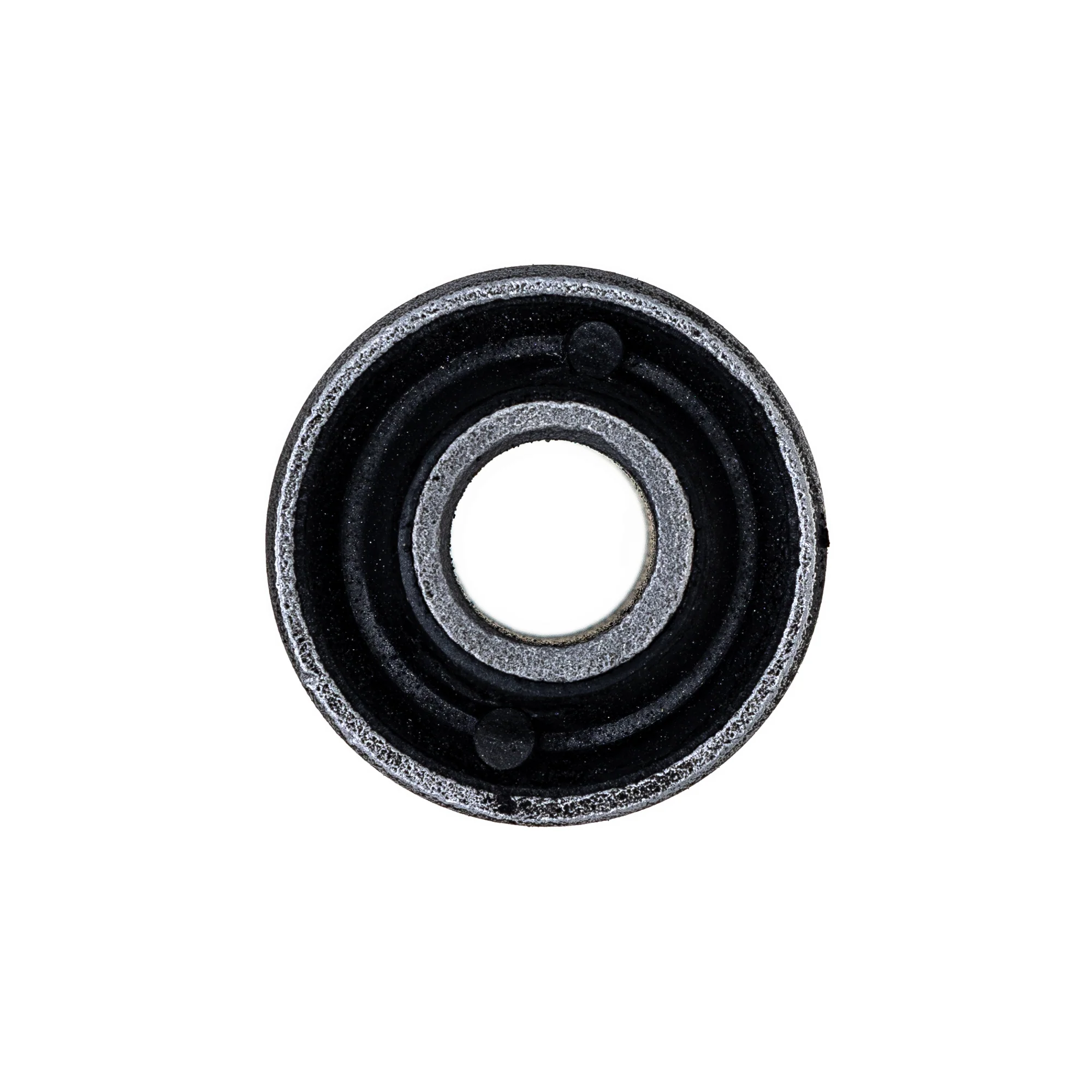

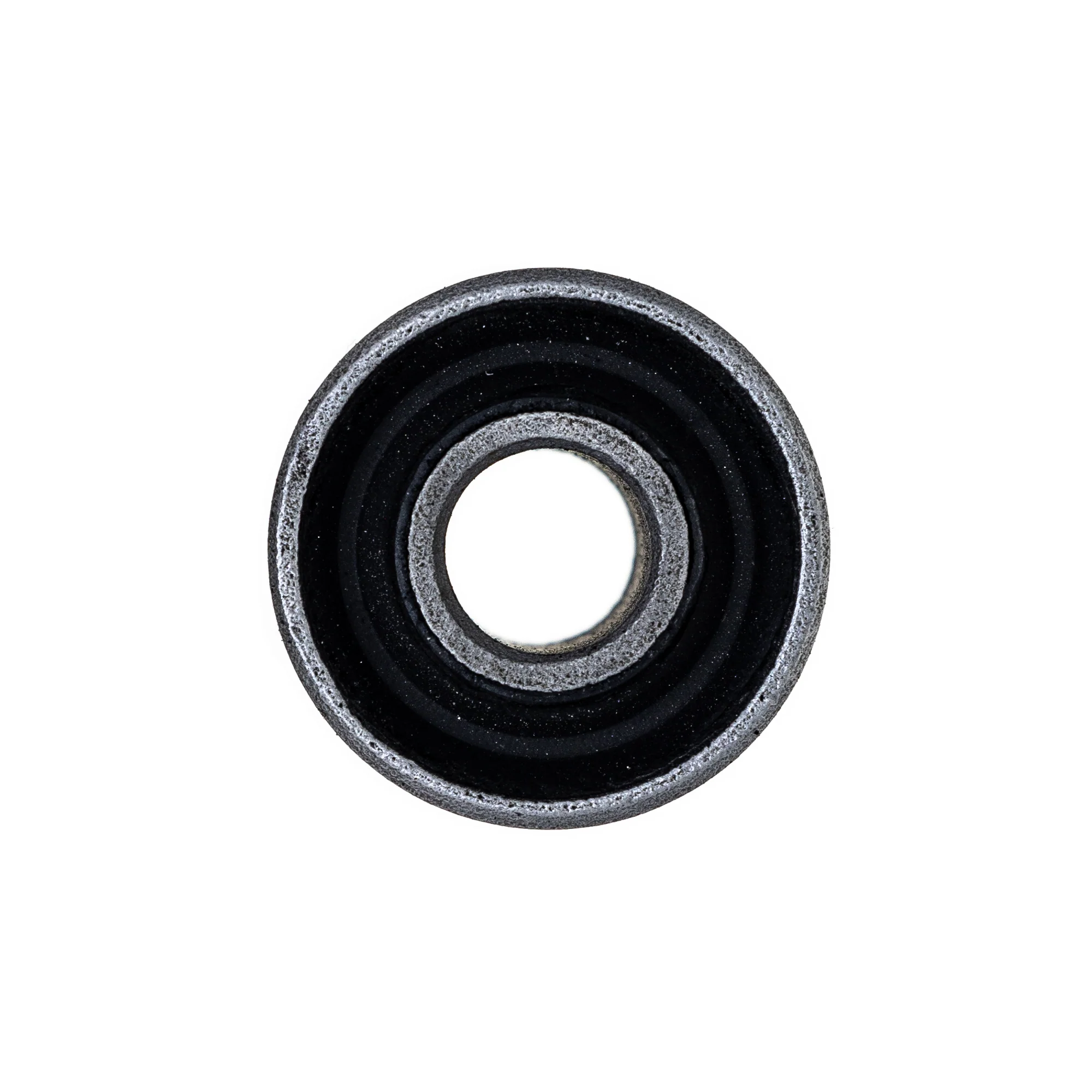

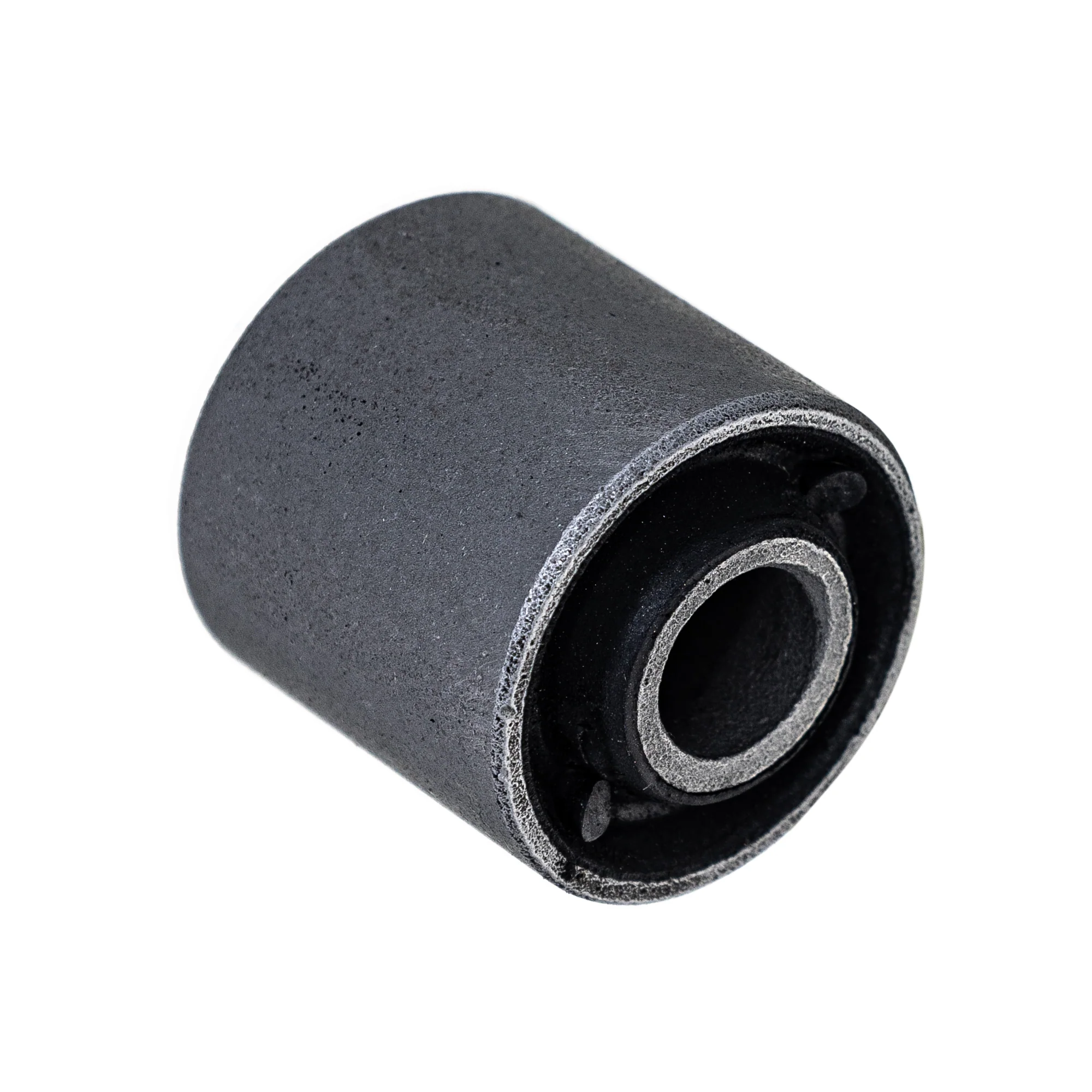

MK1011673 Complete Control A-Arm Swing Arm Bushing Kit Product Info:

• Bushing 1 Inner Diameter 1 (Inches) 0.7913; Outer Diameter 1 (Inches) 1.0906; Outer Diameter 2 (Inches) 1.2406; Flange Length to End (Inches) 0.6693; Total Length (Inches) 0.7874; Material; Carbon Steel
• Bushing 2 Inner Diameter 1 (Inches) 0.4016; Outer Diameter 1 (Inches) 1.1063; Total Length (Inches) 1.1417; Material; Carbon steel and Rubber

Included in This Kit:

(QTY 2) NICHE 519-CBS2294H Control A-Arm Bushing

Substitute For OEM Part Numbers(s): V22135MAA000, BD3-F2123-00-00, 3303-191

(QTY 4) NICHE 519-CBS2219H Control A-Arm Bushing

Substitute For OEM Part Numbers(s): 92139-Y004, 3303-216

Compatible with the Following Vehicles:

Arctic Cat Alterra 90 DVX: 2018-2019
Arctic Cat Alterra 90 2X4: 2017-2023
Arctic Cat 90 DVX: 2006-2017
Arctic Cat 90 2X4 4 Stroke: 2006-2016
Arctic Cat 50 DVX: 2006-2008
Arctic Cat 50 2X4: 2006-2008
