MK1011686 Complete Control A-Arm Swing Arm Bushing Kit Product Info:

• Bushing - 16, Inner Diameter 1 (Inches) 0.3976; Outer Diameter 1 (Inches) 1.1417; Outer Diameter 2 (Inches) 0.6693; Flange Length to End (Inches) 0.9055; Total Length (Inches) 0.9646; Material; Carbon Steel
• Bushing - 2, Inner Diameter 1 (Inches) 0.6693; Outer Diameter 1 (Inches) 0.8642; Outer Diameter 2 (Inches) 1.2543; Flange Length to End (Inches) 2.652; Total Length (Inches) 2.7638; Material; Carbon Steel

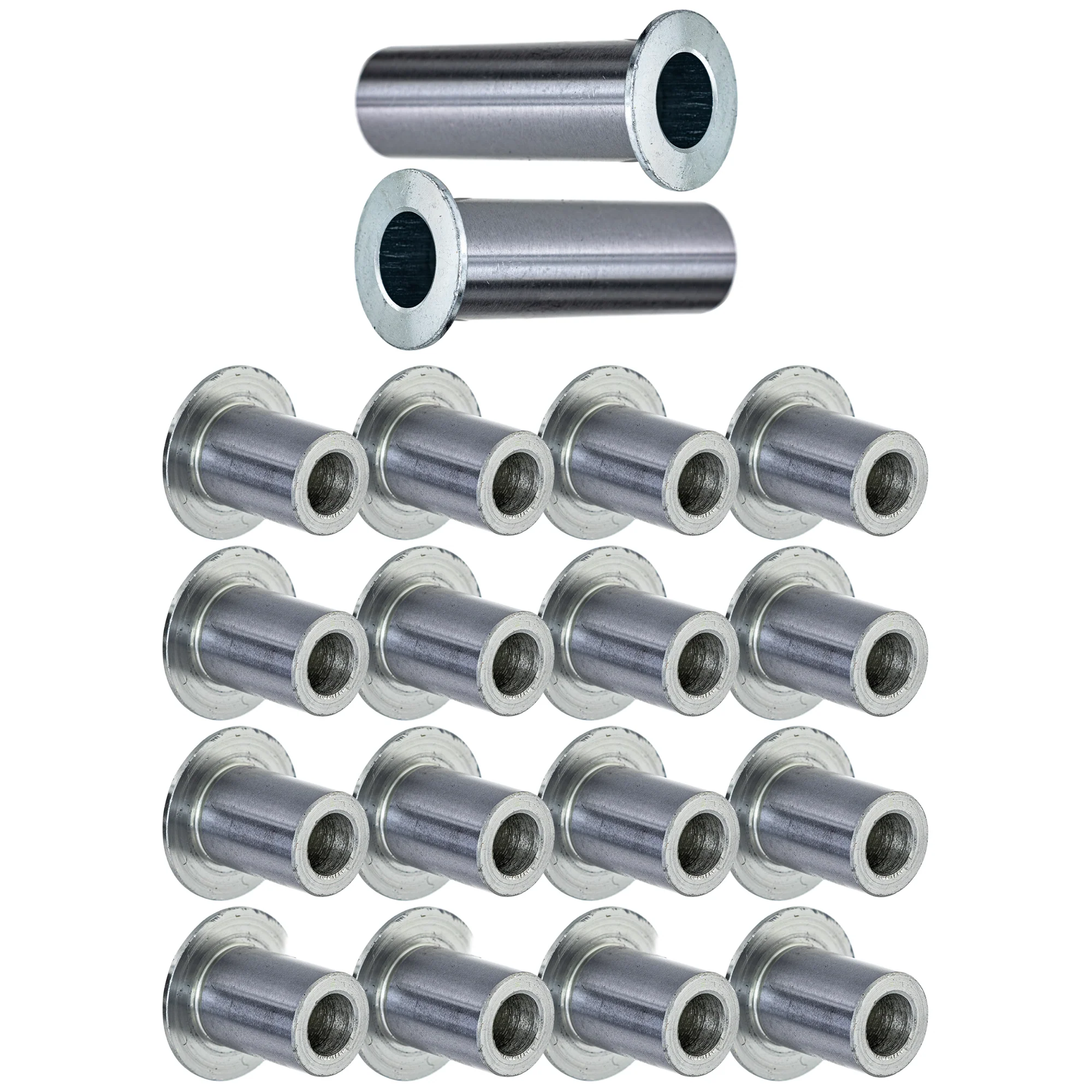

Included in This Kit:

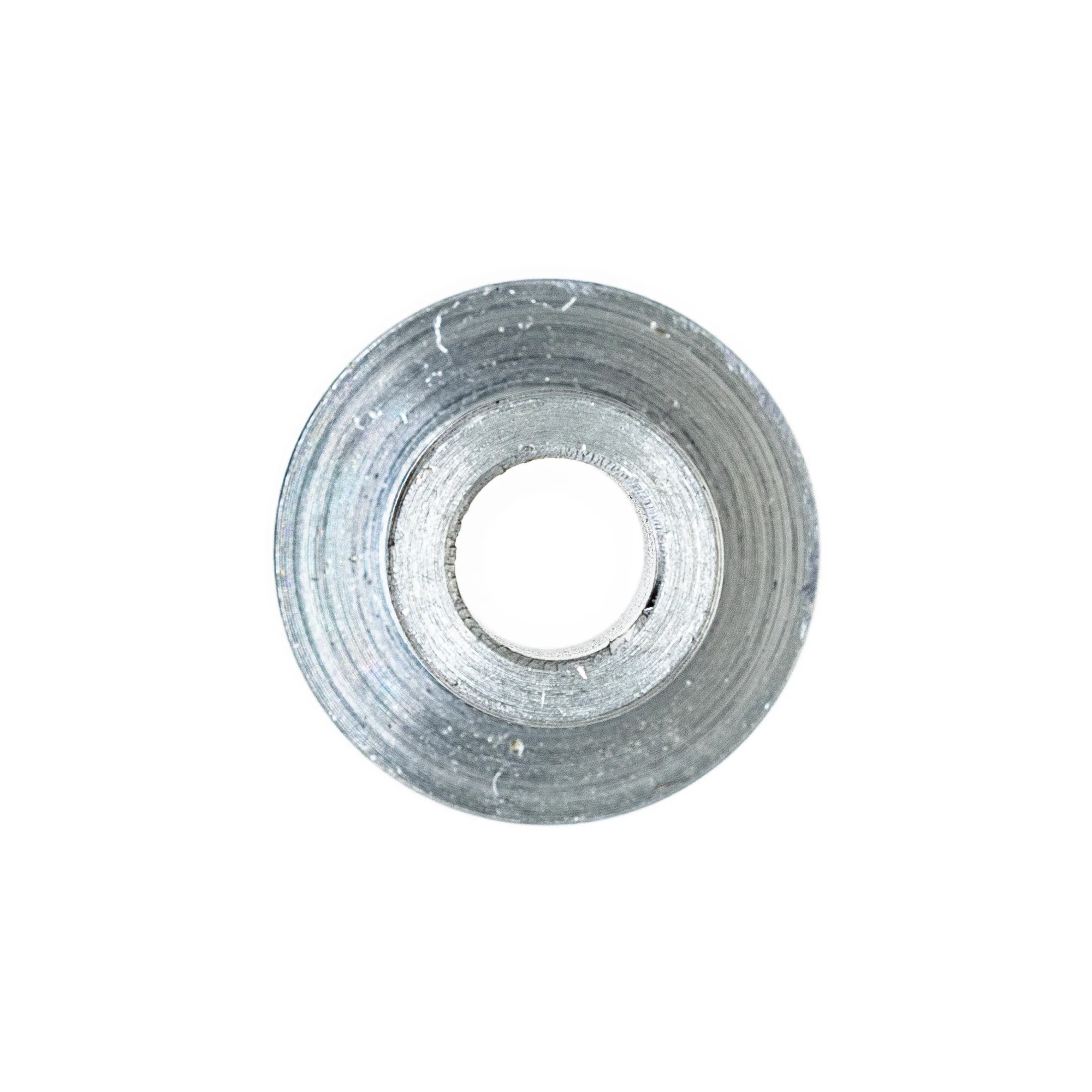

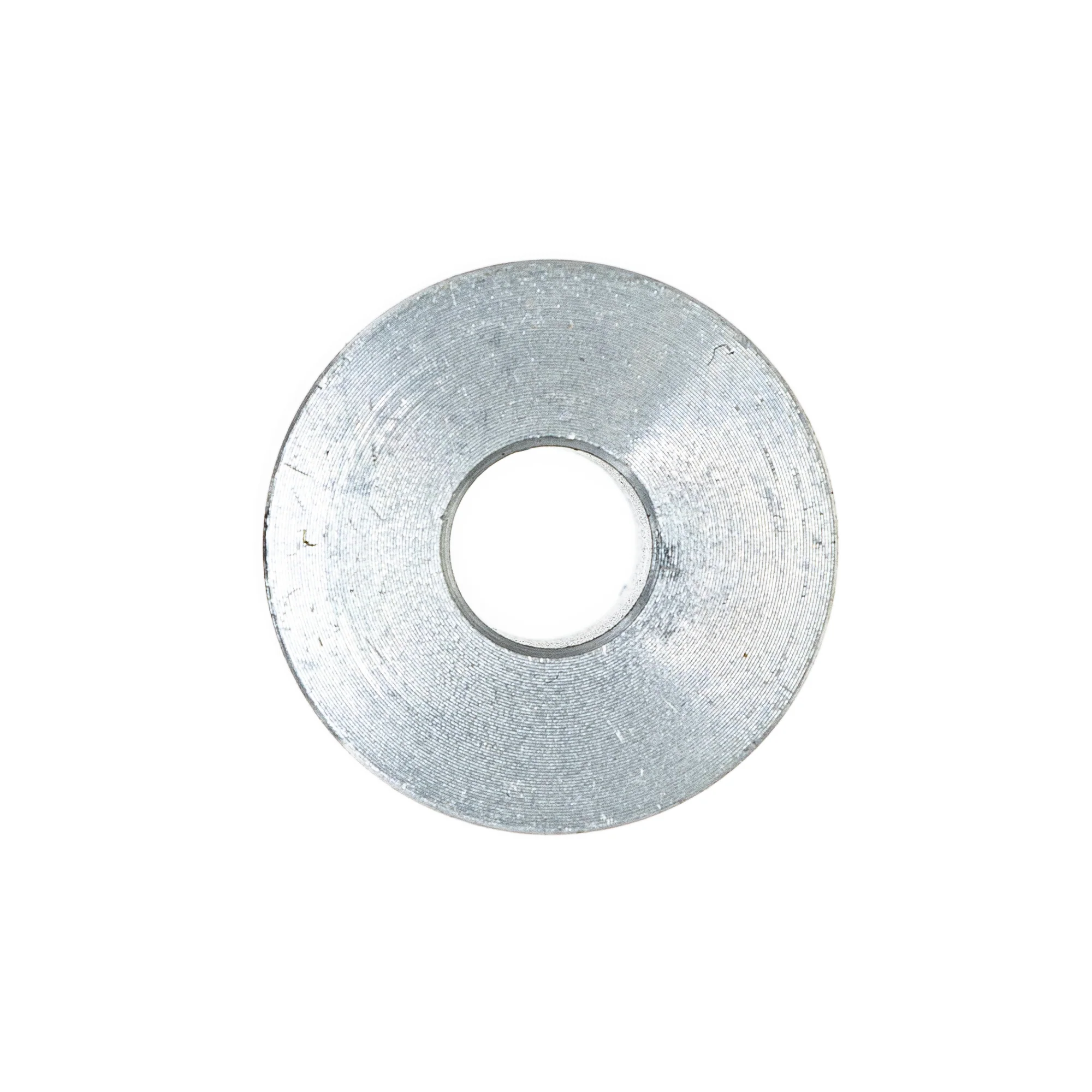

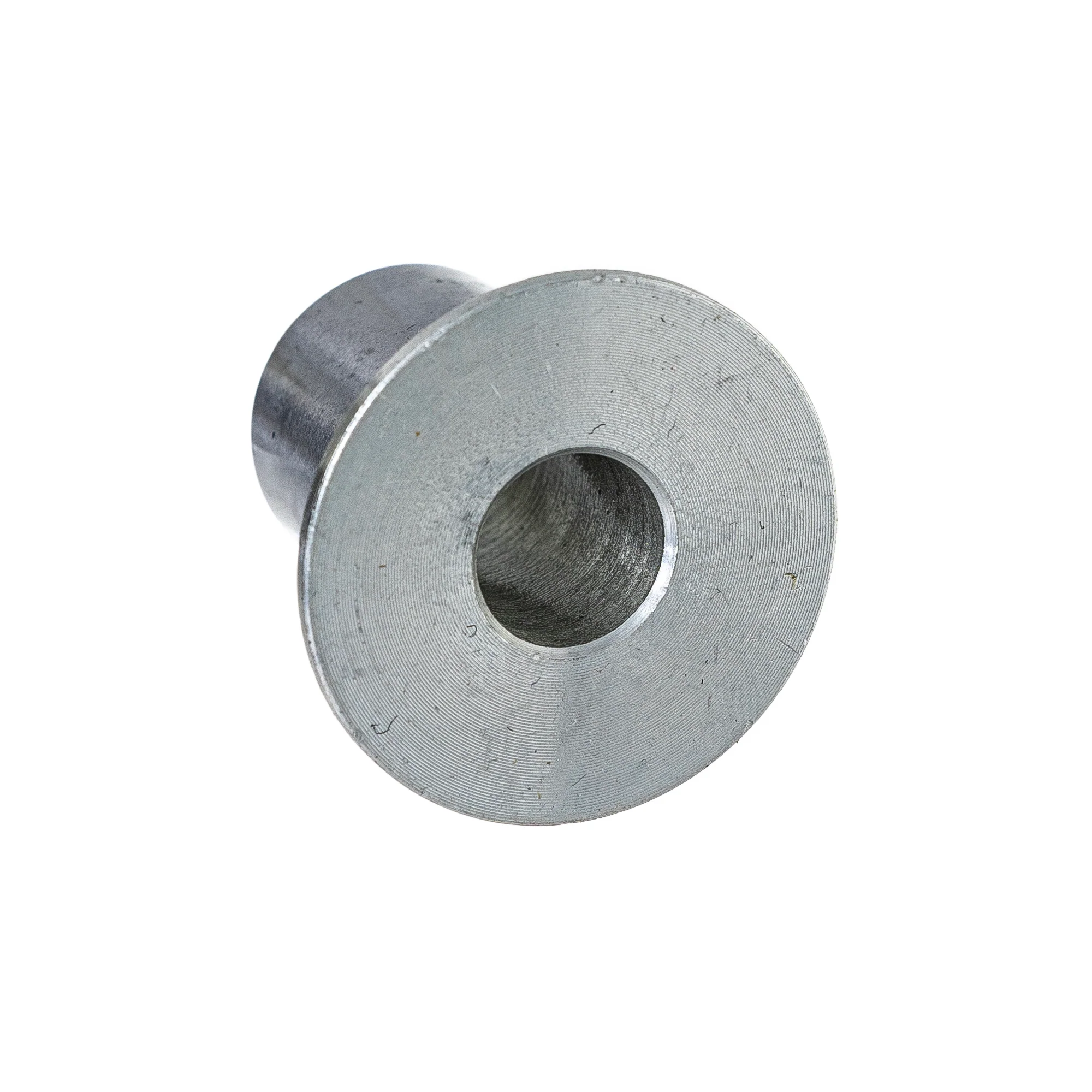

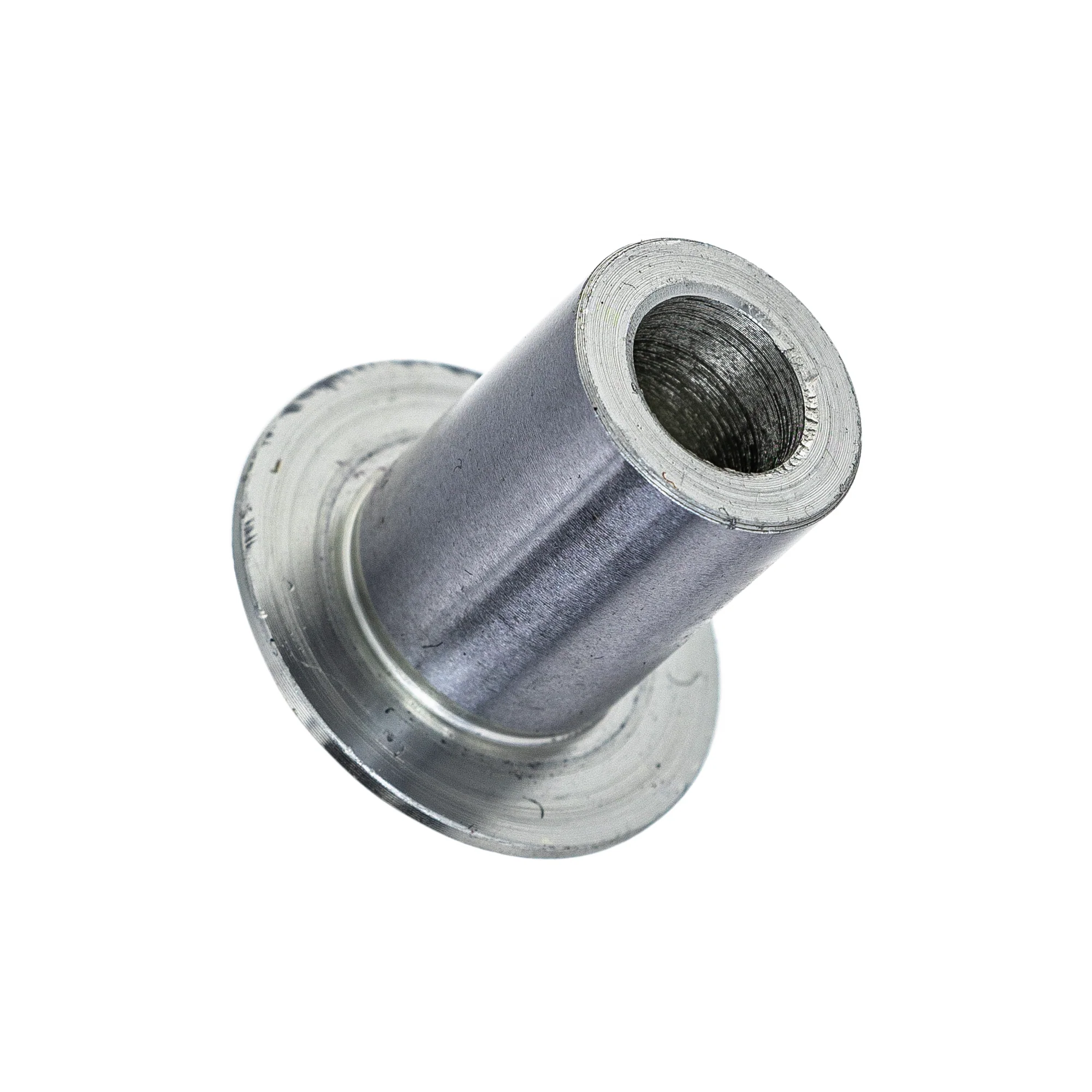

(QTY 16) NICHE 519-CBS2292H Control A-Arm Bushing

Substitute For OEM Part Numbers(s): 52455-45G00-A05, 52455-45G00

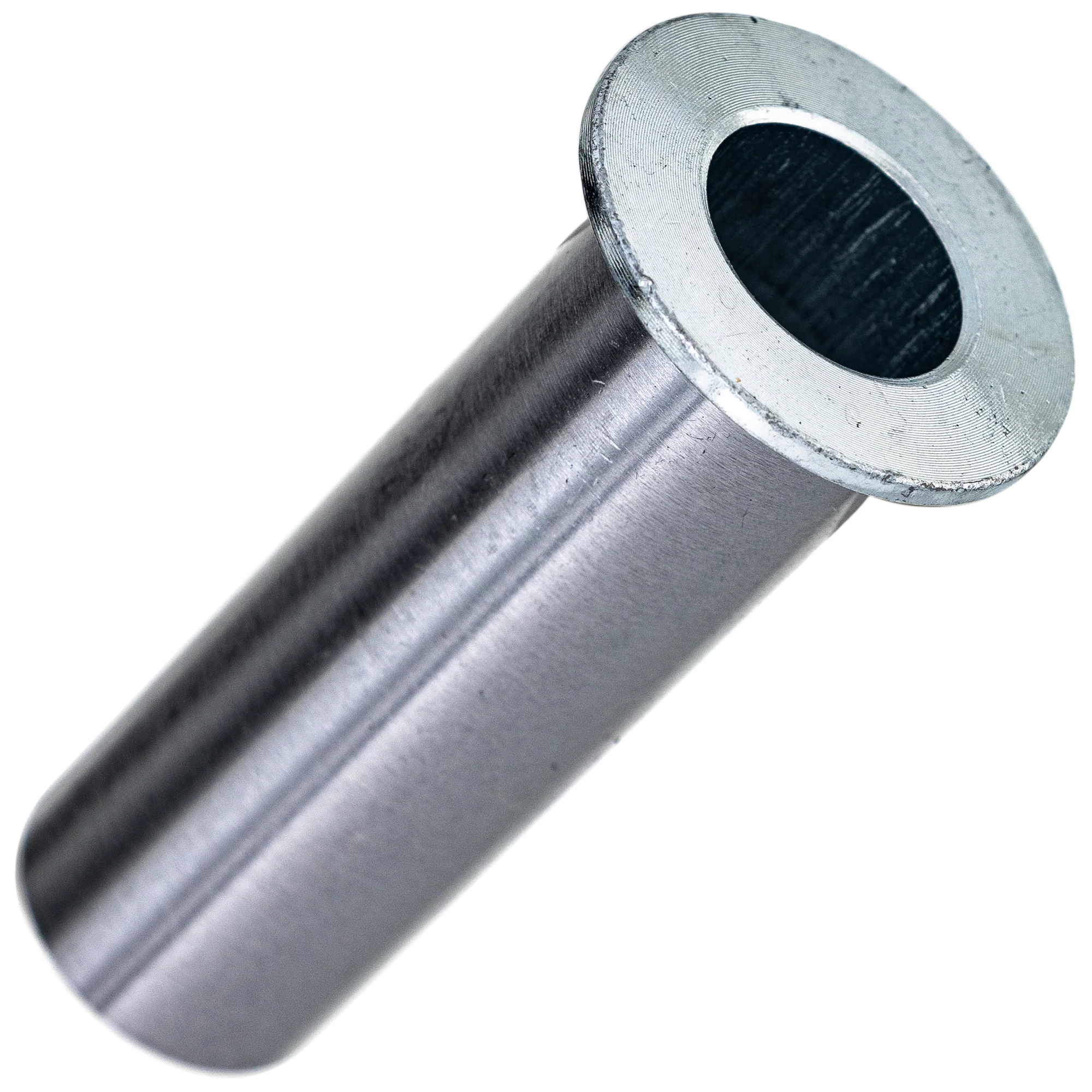

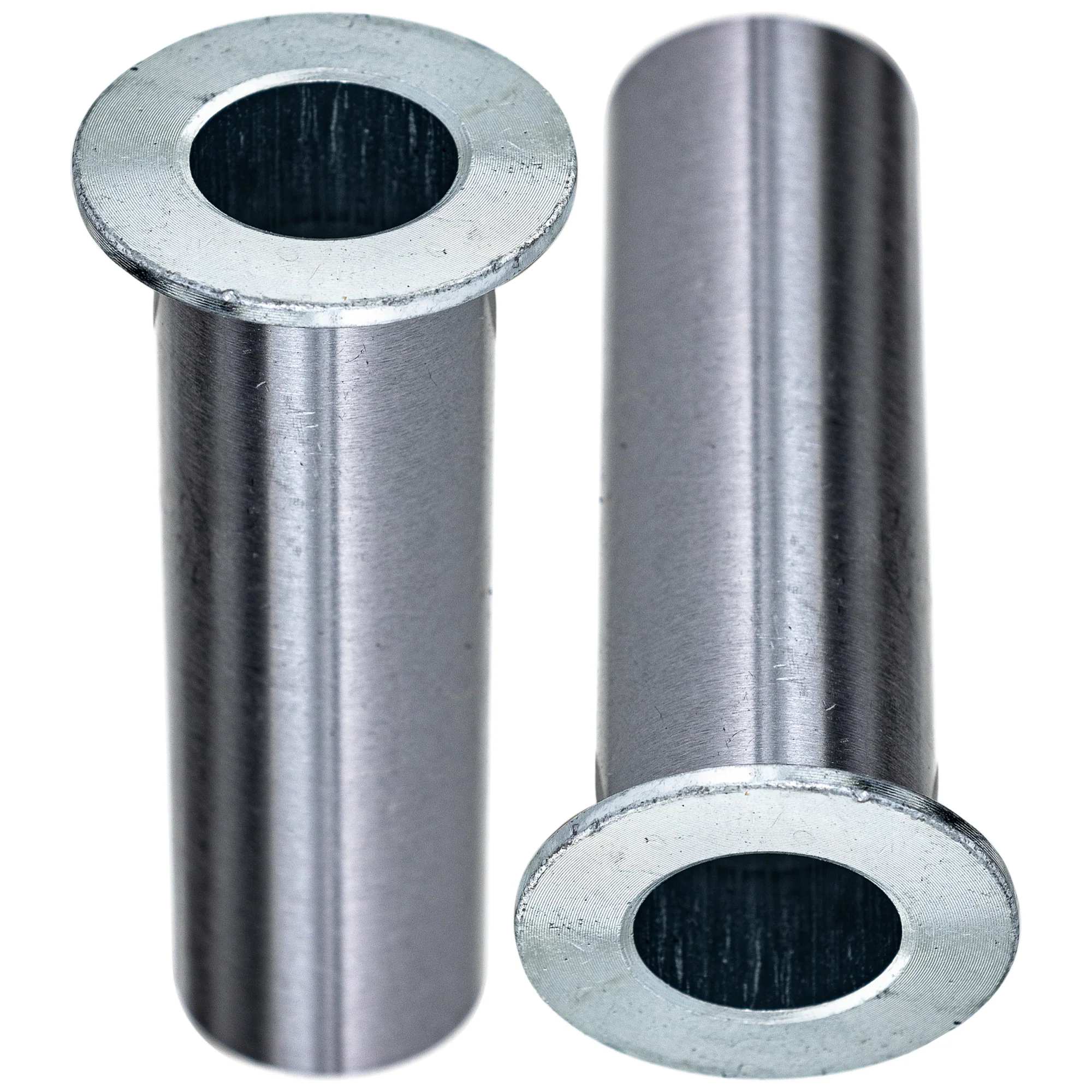

(QTY 2) NICHE 519-CBS2344H Control A-Arm Bushing

Substitute For OEM Part Numbers(s): 61252-45G00

Compatible with the Following Vehicles:

Suzuki Quadracer 450 2X4 Limited Edition: 2008-2009
Suzuki Quadracer 250 2X4: 2008-2009
