MK1011692 Complete Control A-Arm Swing Arm Bushing Sleeve Kit Product Info:

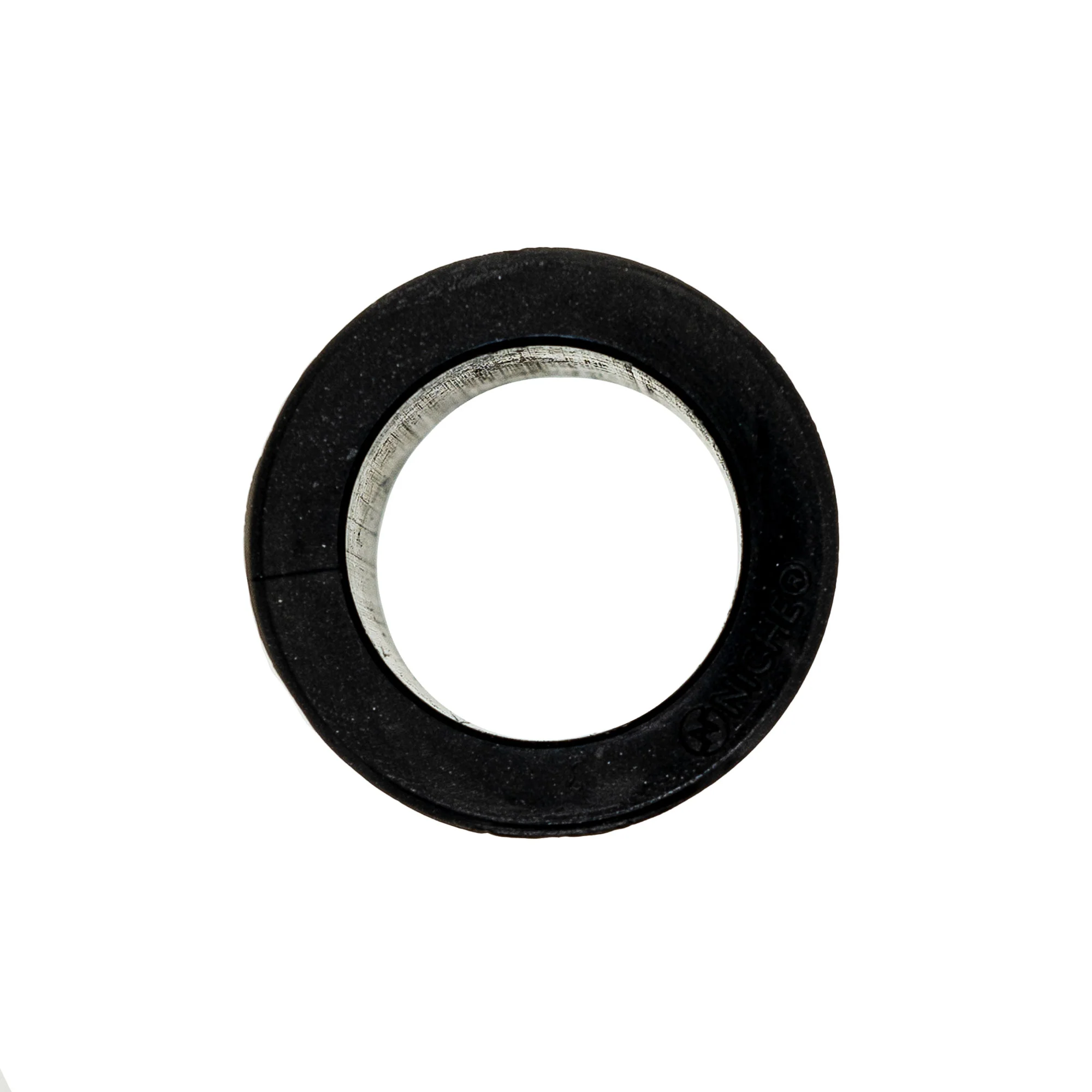

• Bushing - 16, Inner Diameter 1 (Inches) 0.3937; Outer Diameter 1 (Inches) 0.7067; Total Length (Inches) 0.5748; Material; Carbon Steel

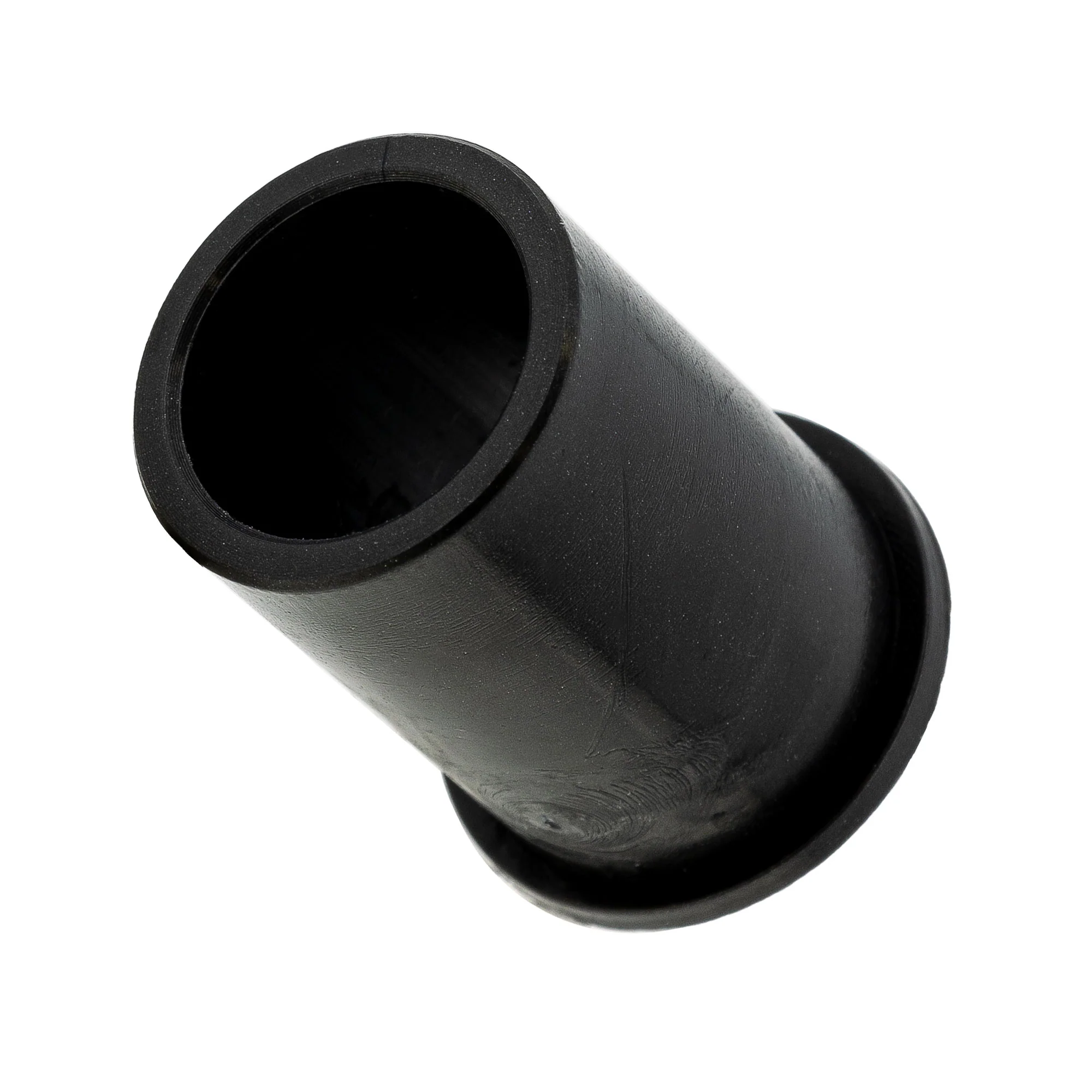

• Bushing - 2, Inner Diameter 1 (Inches) 0.7992; Outer Diameter 1 (Inches) 1.0276; Outer Diameter 2 (Inches) 1.2087; Flange Length to End (Inches) 1.4744; Total Length (Inches) 1.5728; Material; Polyoxymethylene

Included in This Kit:

(QTY 16) NICHE 519-CBS2202H Control A-Arm Bushing Sleeve

Substitute For OEM Part Numbers(s): 3304-689, 3303-901

(QTY 2) NICHE 519-CBS2343H Control A-Arm Bushing

Substitute For OEM Part Numbers(s): 3304-359

Compatible with the Following Vehicles:

Arctic Cat 300 DVX: 2009-2015
Arctic Cat 250 DVX: 2006-2008
Arctic Cat 250 2X4: 2007
