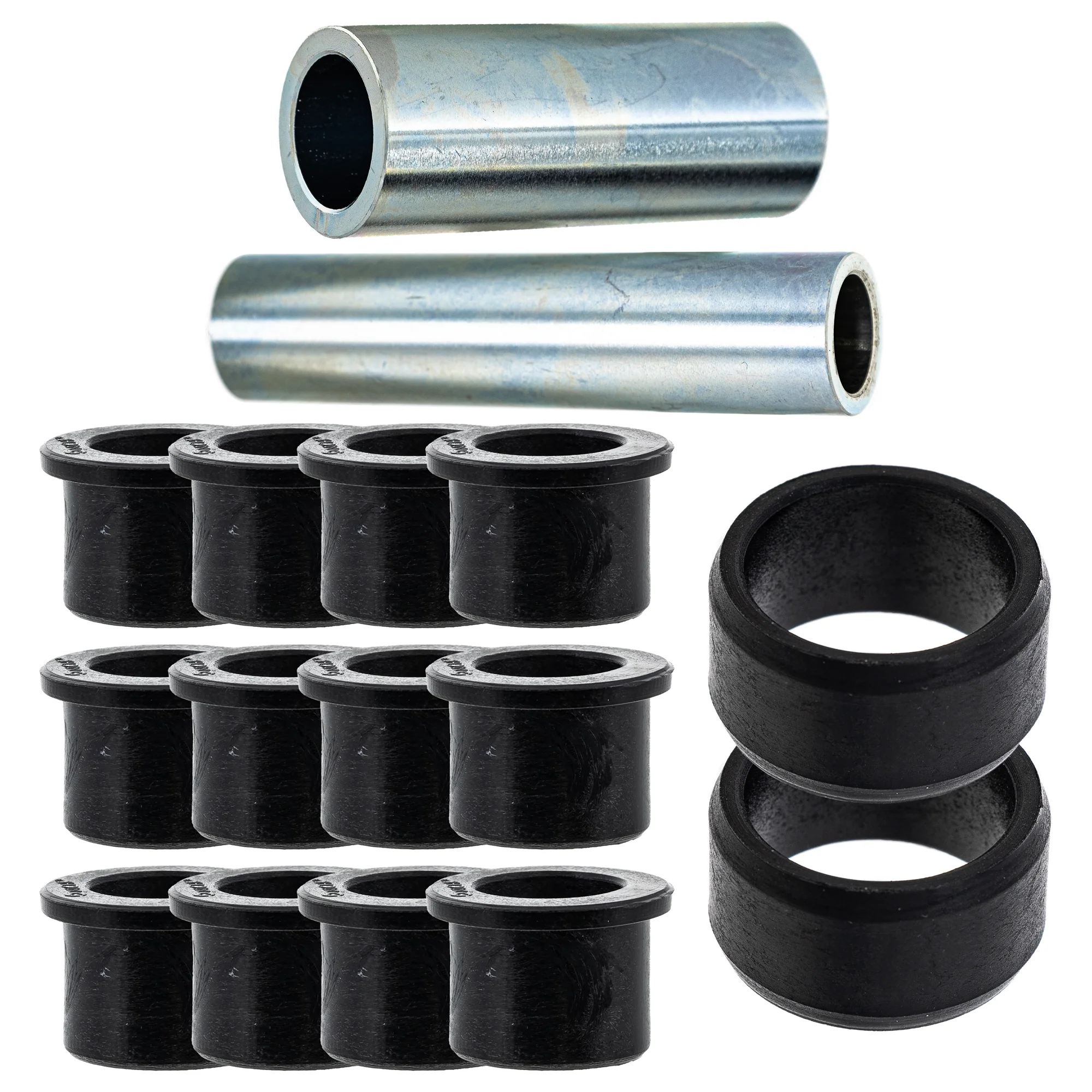

MK1011804 Complete Control A-Arm Swing Arm Bushing Sleeve Kit Product Info:

• Bushing - 12, Inner Diameter 1 (Inches) 0.6004; Outer Diameter 1 (Inches) 1.0039; Outer Diameter 2 (Inches) 0.8307; Flange Length to End (Inches) 0.6083; Total Length (Inches) 0.7067; Material; Polyoxymethylene

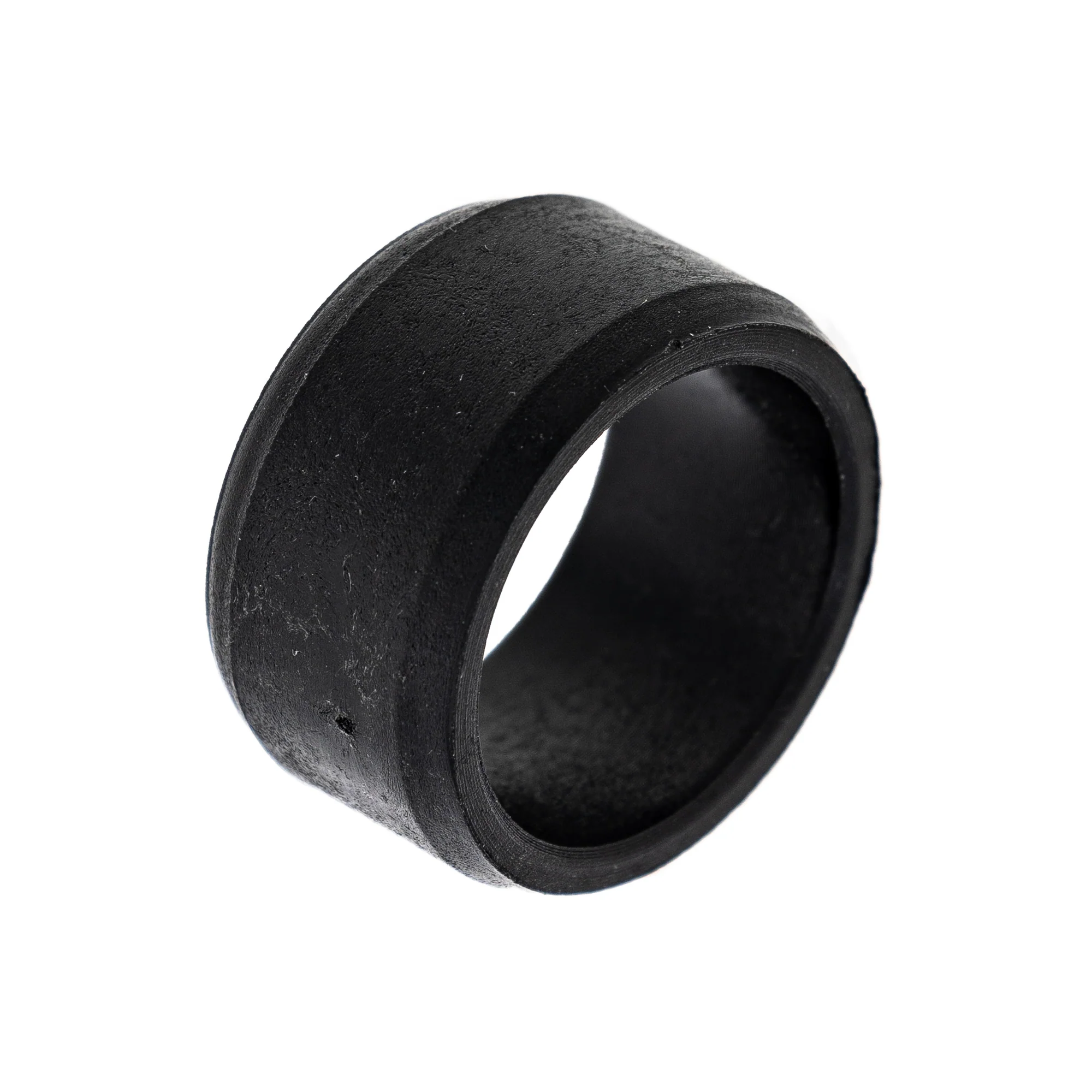

• Bushing - 2, Inner Diameter 1 (Inches) 0.875; Outer Diameter 1 (Inches) 1.1; Total Length (Inches) 0.59; Material; Polyoxymethylene

Included in This Kit:

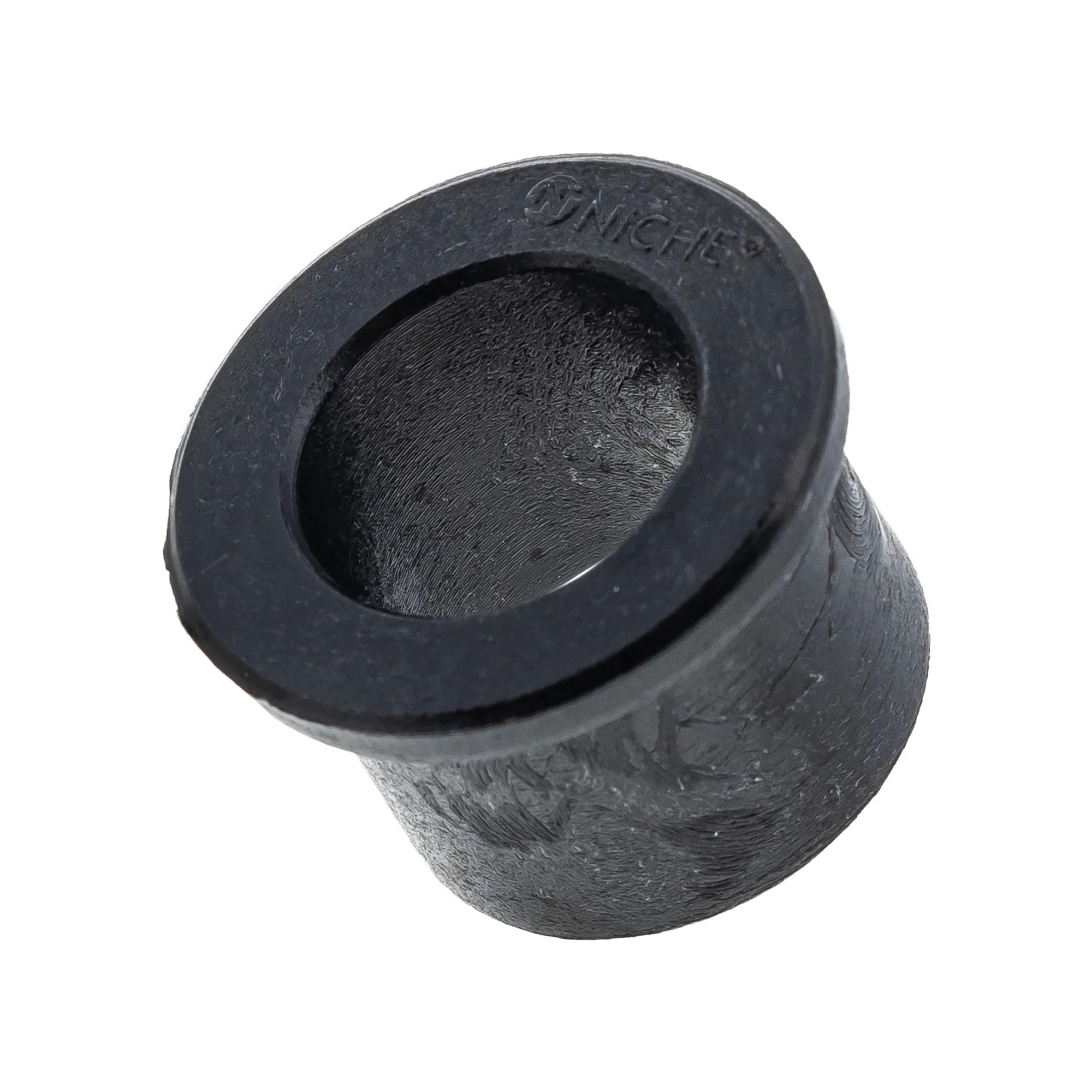

(QTY 12) NICHE 519-CBS2233H Control A-Arm Bushing

Substitute For OEM Part Numbers(s): 90381-15088-00, 90381-15084-00

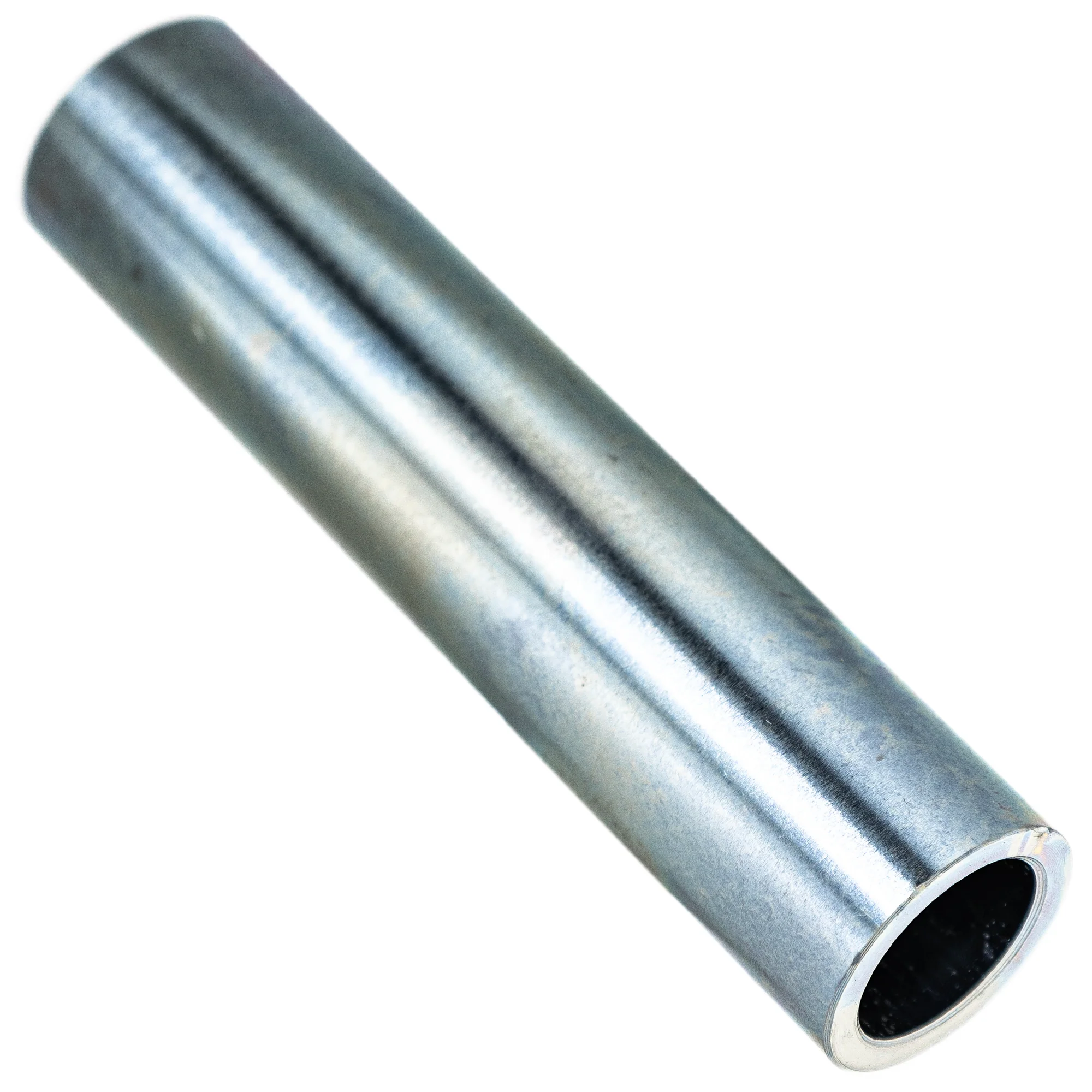

(QTY 2) NICHE 519-CBS2249H Control A-Arm Bushing Sleeve

Substitute For OEM Part Numbers(s): 90380-22111-00

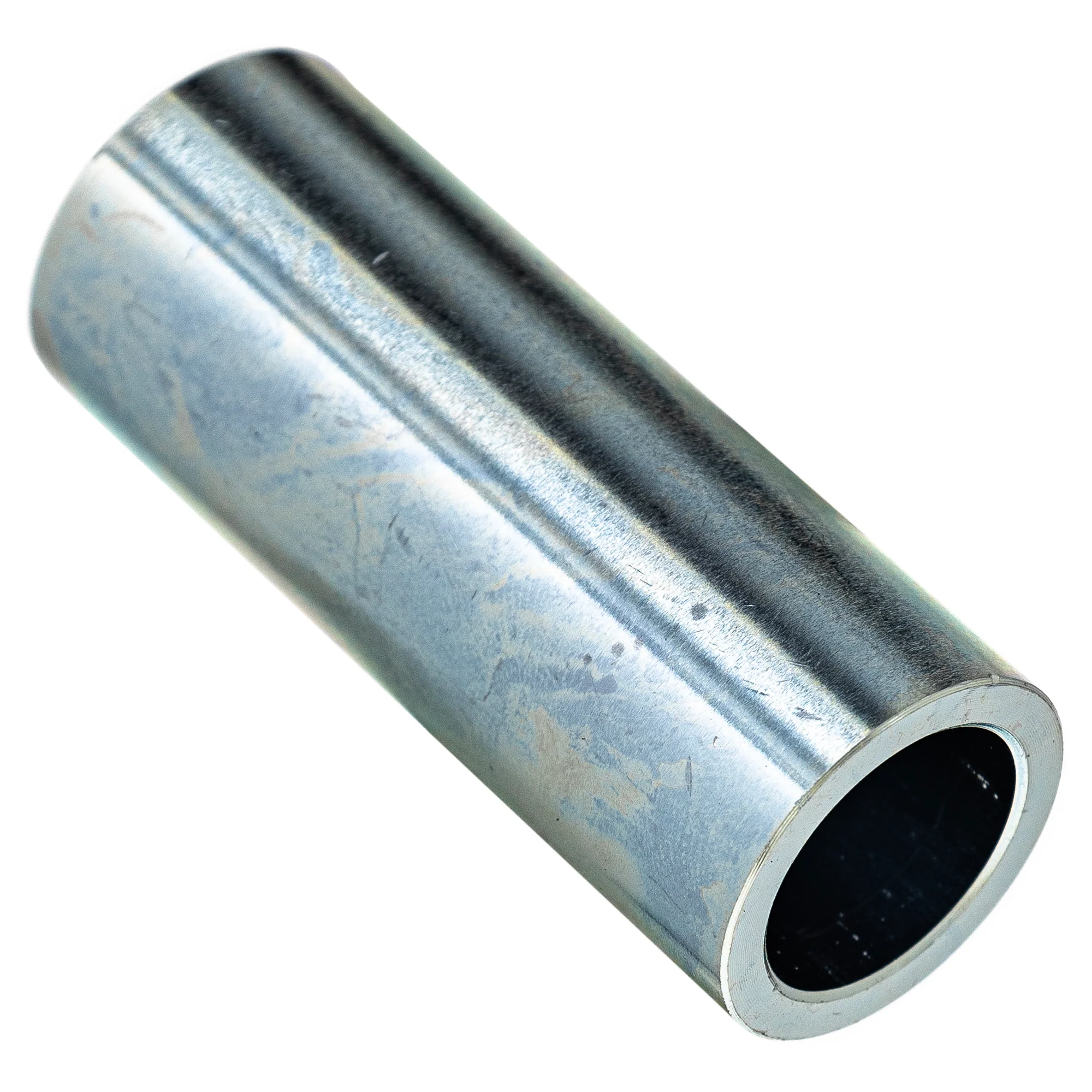

(QTY 1) NICHE 519-CBS2328H Control A-Arm Bushing Sleeve

Substitute For OEM Part Numbers(s): 5LP-22184-00-00

(QTY 1) NICHE 519-CBS2321H Control A-Arm Bushing Sleeve

Substitute For OEM Part Numbers(s): 5LP-22123-00-00

Compatible with the Following Vehicles:

Yamaha Raptor 660R Special Edition: 2005
Yamaha Raptor 660R Limited Edition: 2002-2004
Yamaha Raptor 660R: 2001-2005
