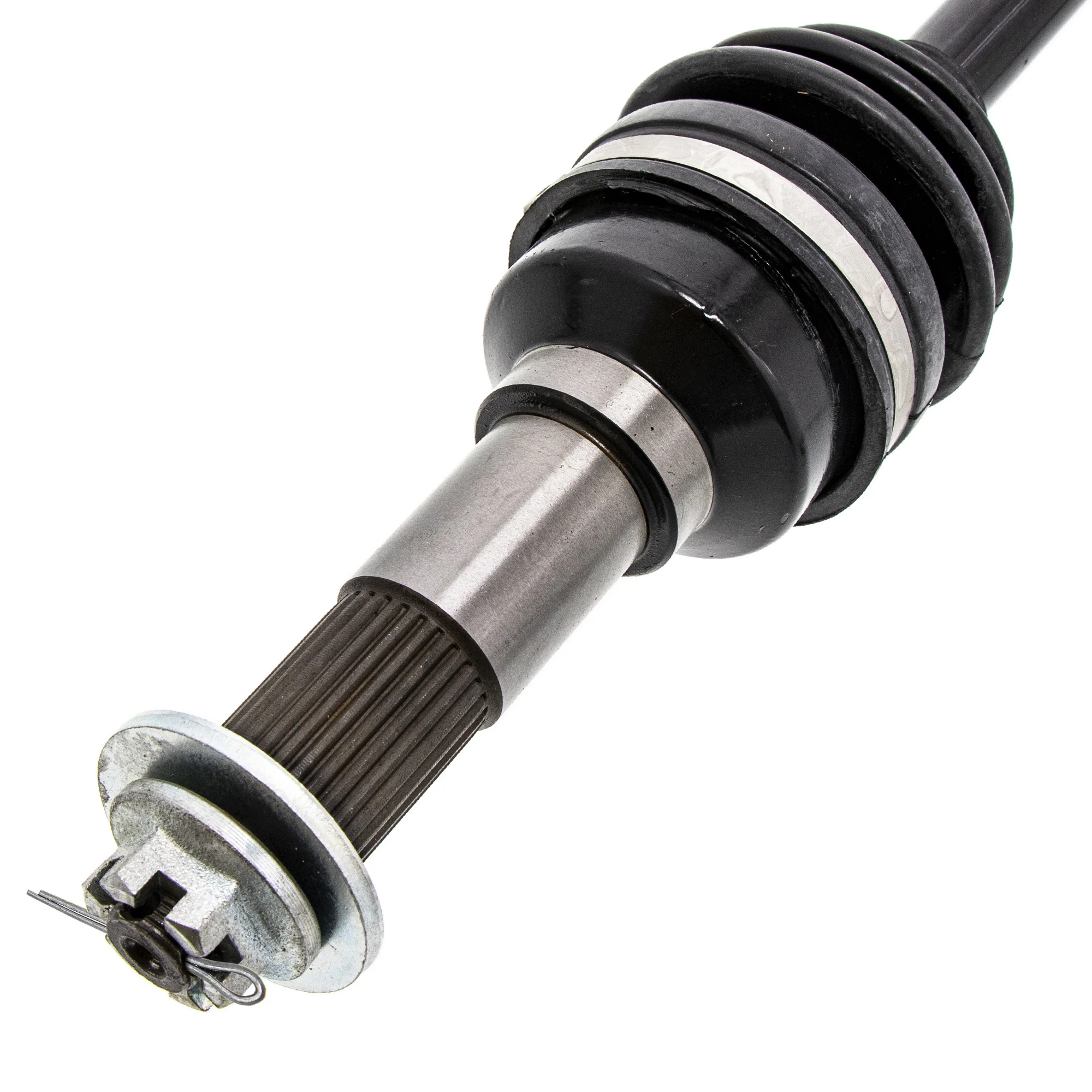

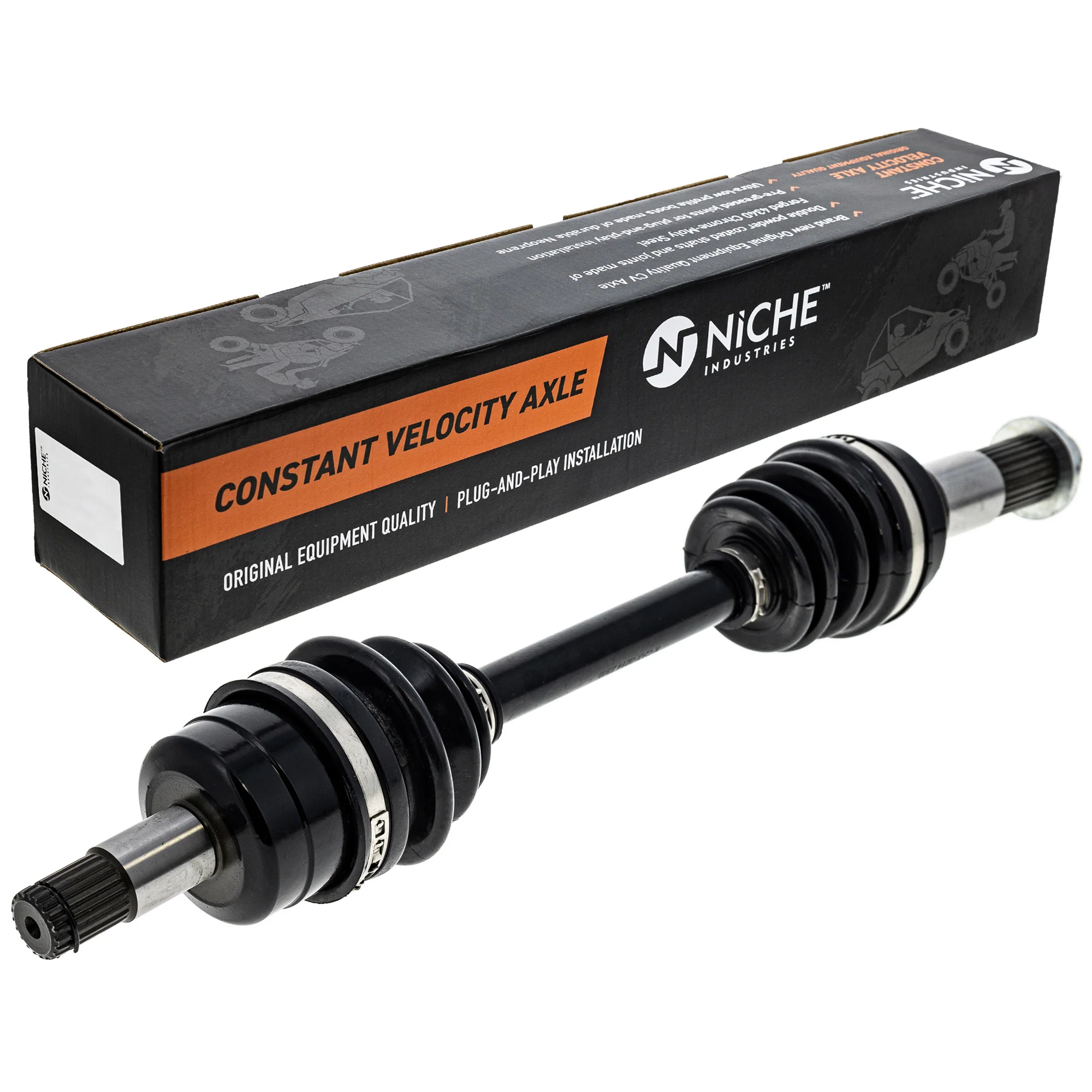

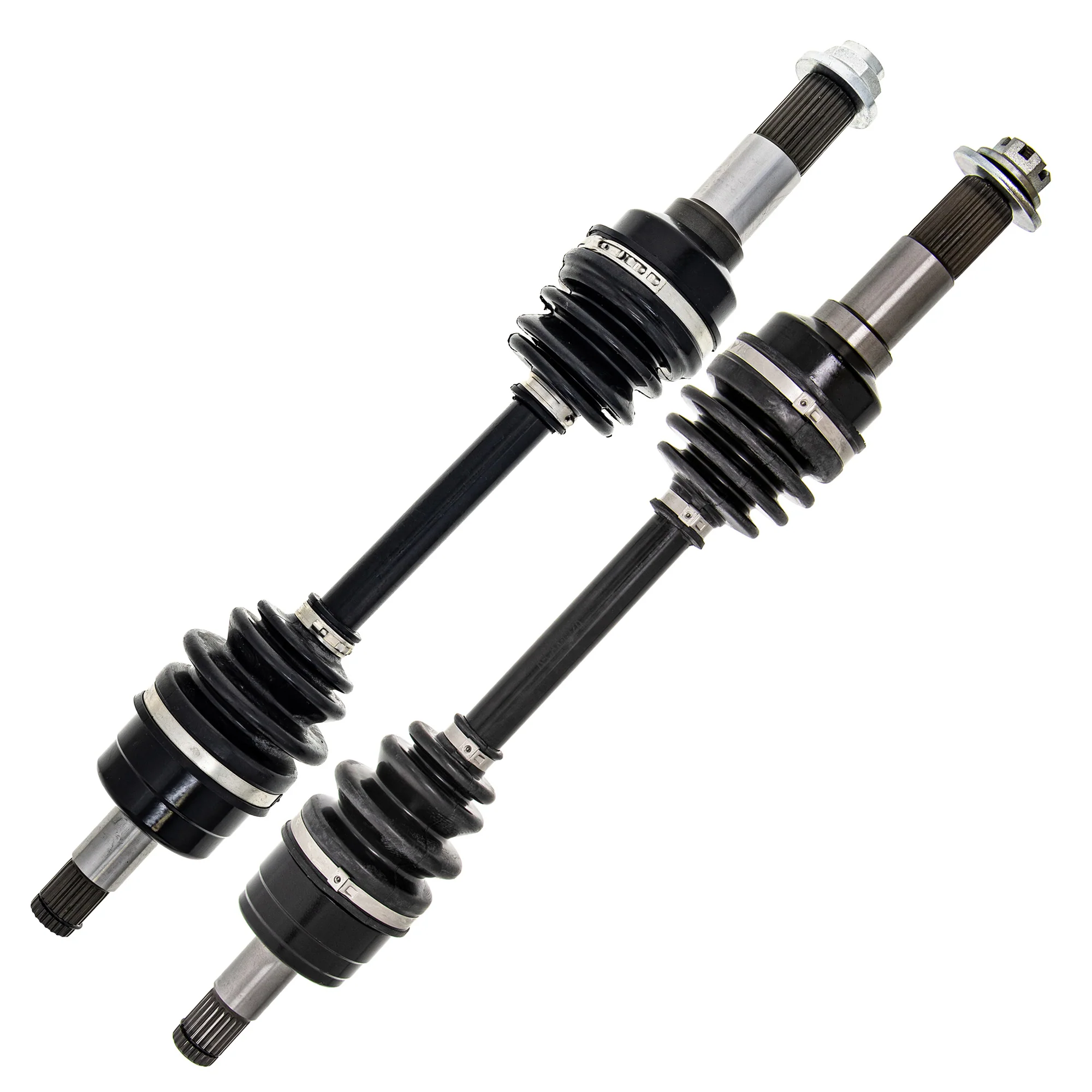

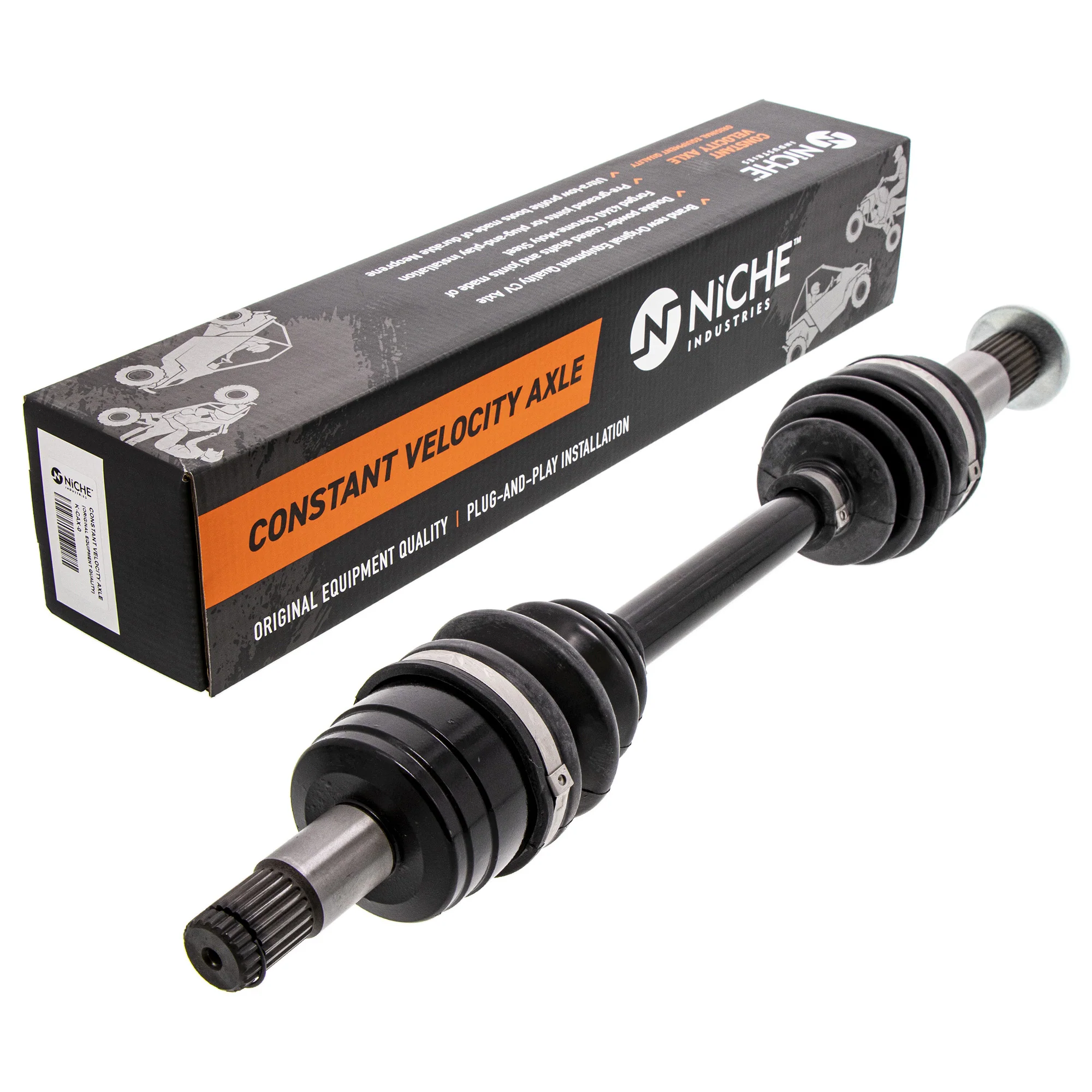

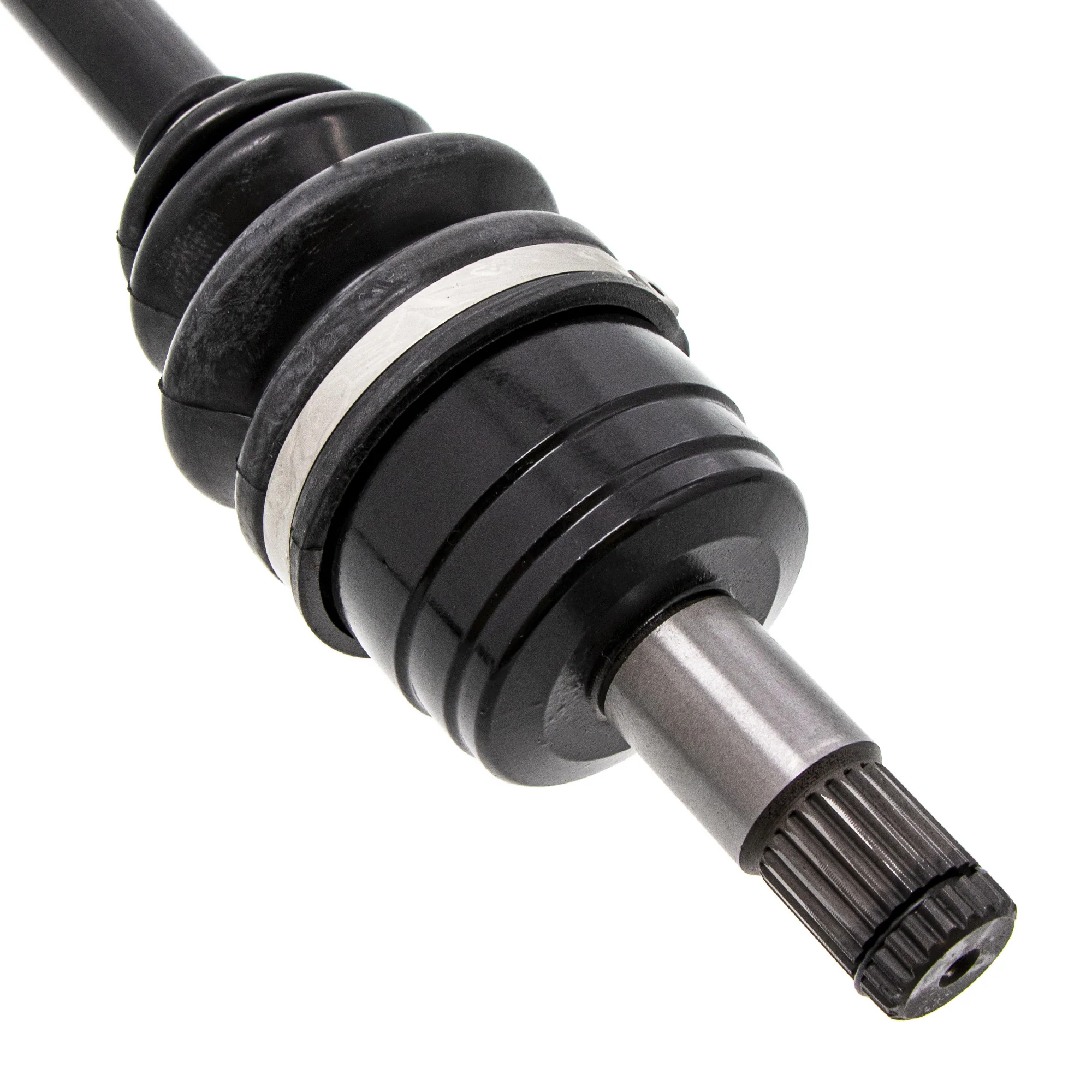

High Strength Drive Shaft CV Axle Assembly Kit For Yamaha MK1012052
MK1012052 High Strength Drive Shaft CV Axle Assembly Kit Product Info:
- Front Right Compressed Length (Inches) 18.98; Outer Joint Splines 27T; Outer Joint Compressed Length (Inches) 3.91; Inner Joint Splines 21T; Inner Joint Compressed Length (Inches) 2.32;
- Front Left Compressed Length 19 1/2, Inboard Splines 21T, Inboard Spline Diameter 2 1/2, Outboard Splines 27T, Outboard Spline Diameter 2 7/16, Shaft Diameter 13/16, Thread Measurement M16x1.5
(QTY 1) NICHE 519-KCA2340X Front Drive Shaft CV Axle Assembly
Substitute For OEM Part Numbers(s): 5TE-F518F-00-00
(QTY 1) NICHE 519-KCA2436X Front Drive Shaft CV Axle Assembly
Substitute For OEM Part Numbers(s): 4S2-2511E-01-00, 4S1-2510J-01-00, 4S1-2510F-01-00
Compatible with the Following Vehicles:
Yamaha Grizzly 350 Hunter Edition 4X4: 2010Yamaha Grizzly 350 4X4: 2010
WARNING: This product can expose you to chemicals including lead and phthalates, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
MK1012052 High Strength Drive Shaft CV Axle Assembly Kit Product Info:
- Front Right Compressed Length (Inches) 18.98; Outer Joint Splines 27T; Outer Joint Compressed Length (Inches) 3.91; Inner Joint Splines 21T; Inner Joint Compressed Length (Inches) 2.32;
- Front Left Compressed Length 19 1/2, Inboard Splines 21T, Inboard Spline Diameter 2 1/2, Outboard Splines 27T, Outboard Spline Diameter 2 7/16, Shaft Diameter 13/16, Thread Measurement M16x1.5
(QTY 1) NICHE 519-KCA2340X Front Drive Shaft CV Axle Assembly
Substitute For OEM Part Numbers(s): 5TE-F518F-00-00
(QTY 1) NICHE 519-KCA2436X Front Drive Shaft CV Axle Assembly
Substitute For OEM Part Numbers(s): 4S2-2511E-01-00, 4S1-2510J-01-00, 4S1-2510F-01-00
Compatible with the Following Vehicles:
Yamaha Grizzly 350 Hunter Edition 4X4: 2010Yamaha Grizzly 350 4X4: 2010
WARNING: This product can expose you to chemicals including lead and phthalates, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
$134.95
High Strength Drive Shaft CV Axle Assembly Kit For Yamaha MK1012052—
$134.95
Description
MK1012052 High Strength Drive Shaft CV Axle Assembly Kit Product Info:
- Front Right Compressed Length (Inches) 18.98; Outer Joint Splines 27T; Outer Joint Compressed Length (Inches) 3.91; Inner Joint Splines 21T; Inner Joint Compressed Length (Inches) 2.32;
- Front Left Compressed Length 19 1/2, Inboard Splines 21T, Inboard Spline Diameter 2 1/2, Outboard Splines 27T, Outboard Spline Diameter 2 7/16, Shaft Diameter 13/16, Thread Measurement M16x1.5
(QTY 1) NICHE 519-KCA2340X Front Drive Shaft CV Axle Assembly
Substitute For OEM Part Numbers(s): 5TE-F518F-00-00
(QTY 1) NICHE 519-KCA2436X Front Drive Shaft CV Axle Assembly
Substitute For OEM Part Numbers(s): 4S2-2511E-01-00, 4S1-2510J-01-00, 4S1-2510F-01-00
Compatible with the Following Vehicles:
Yamaha Grizzly 350 Hunter Edition 4X4: 2010Yamaha Grizzly 350 4X4: 2010
WARNING: This product can expose you to chemicals including lead and phthalates, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
