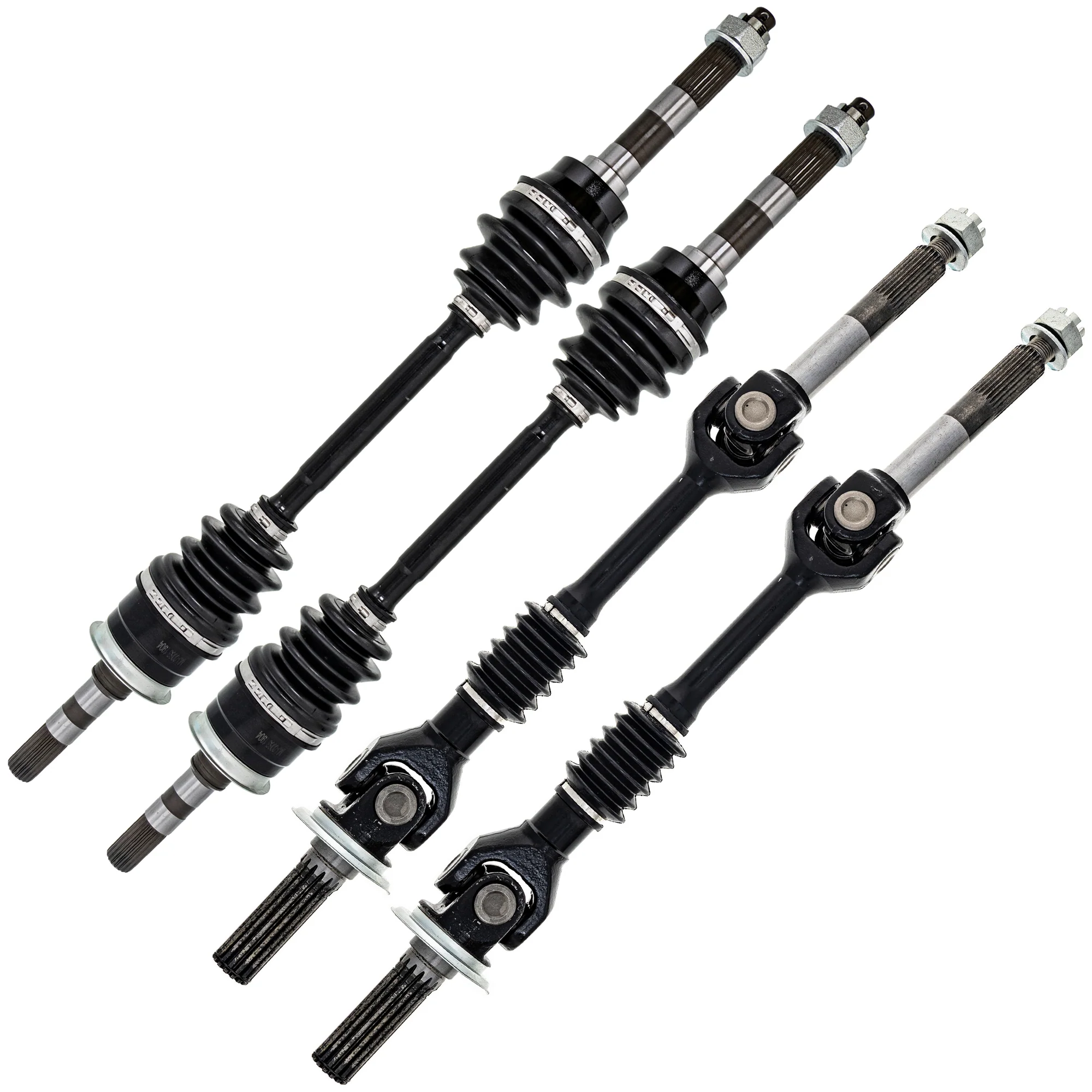

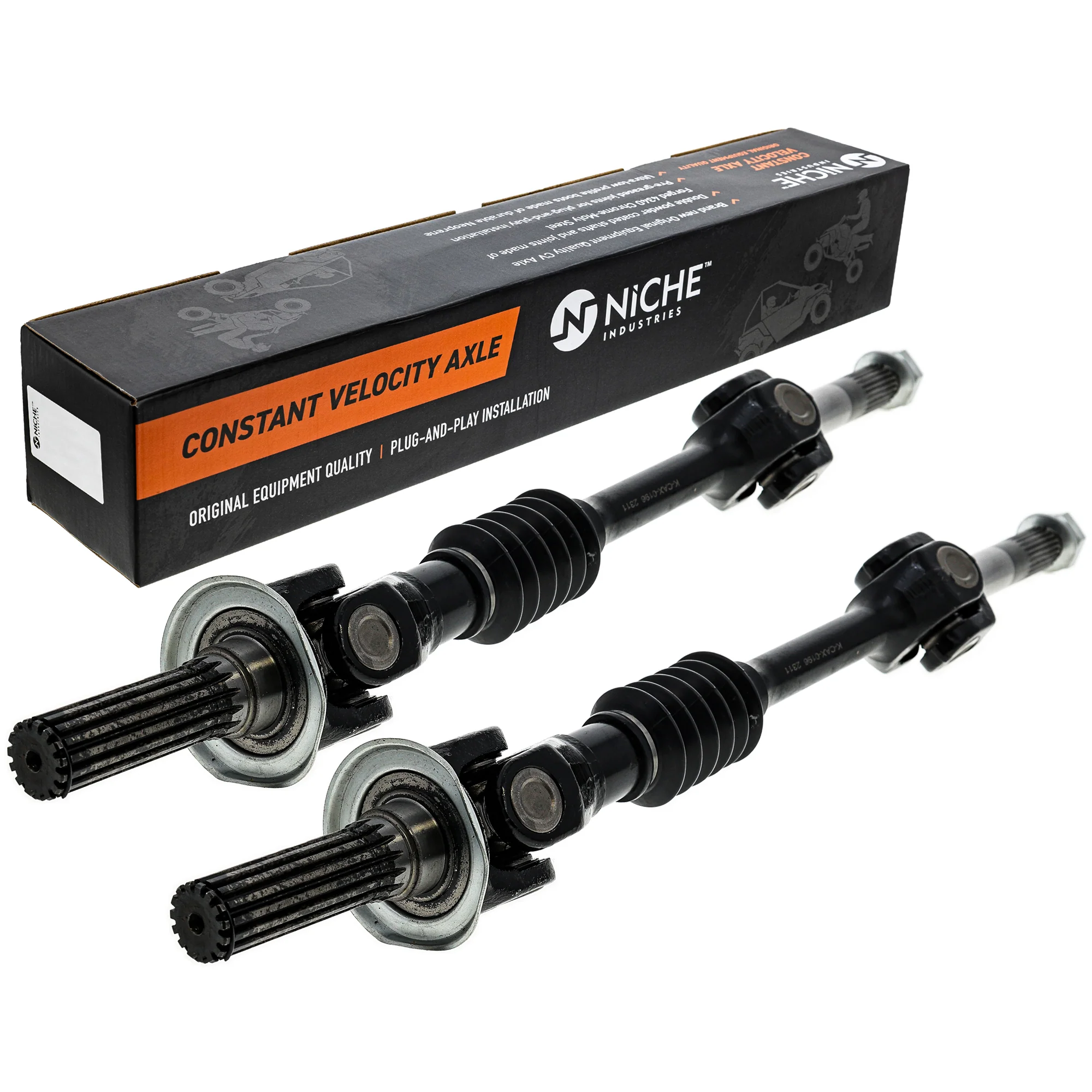

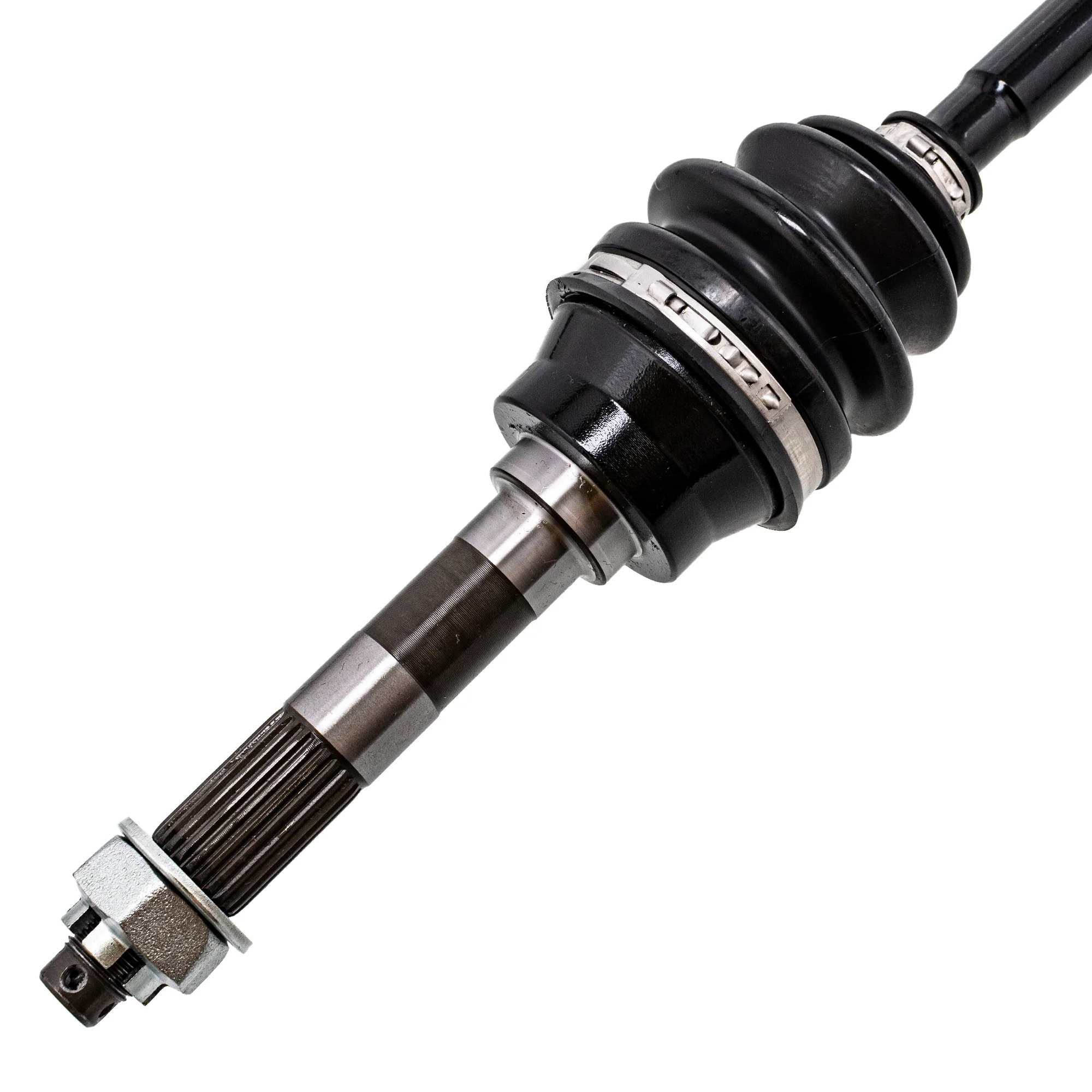

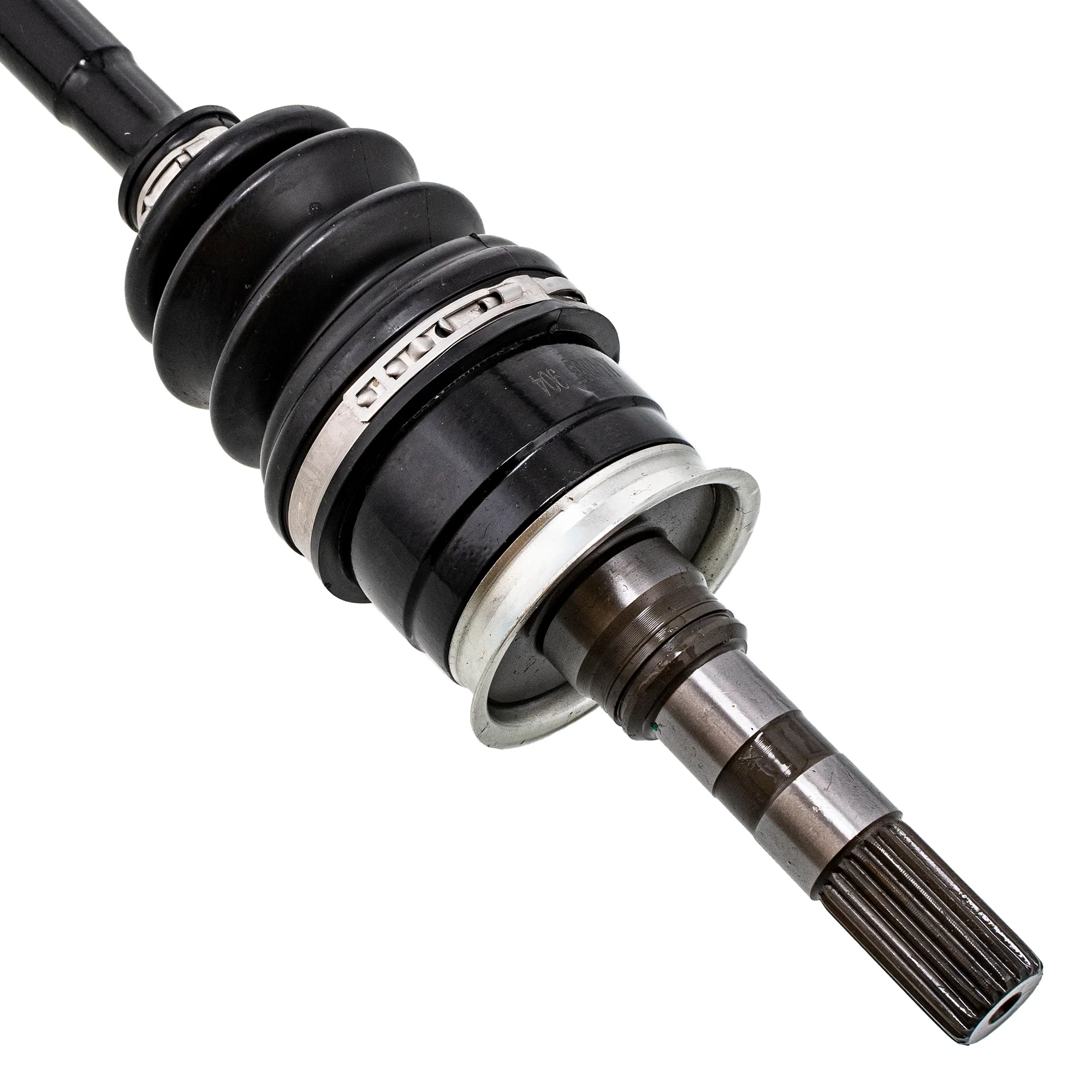

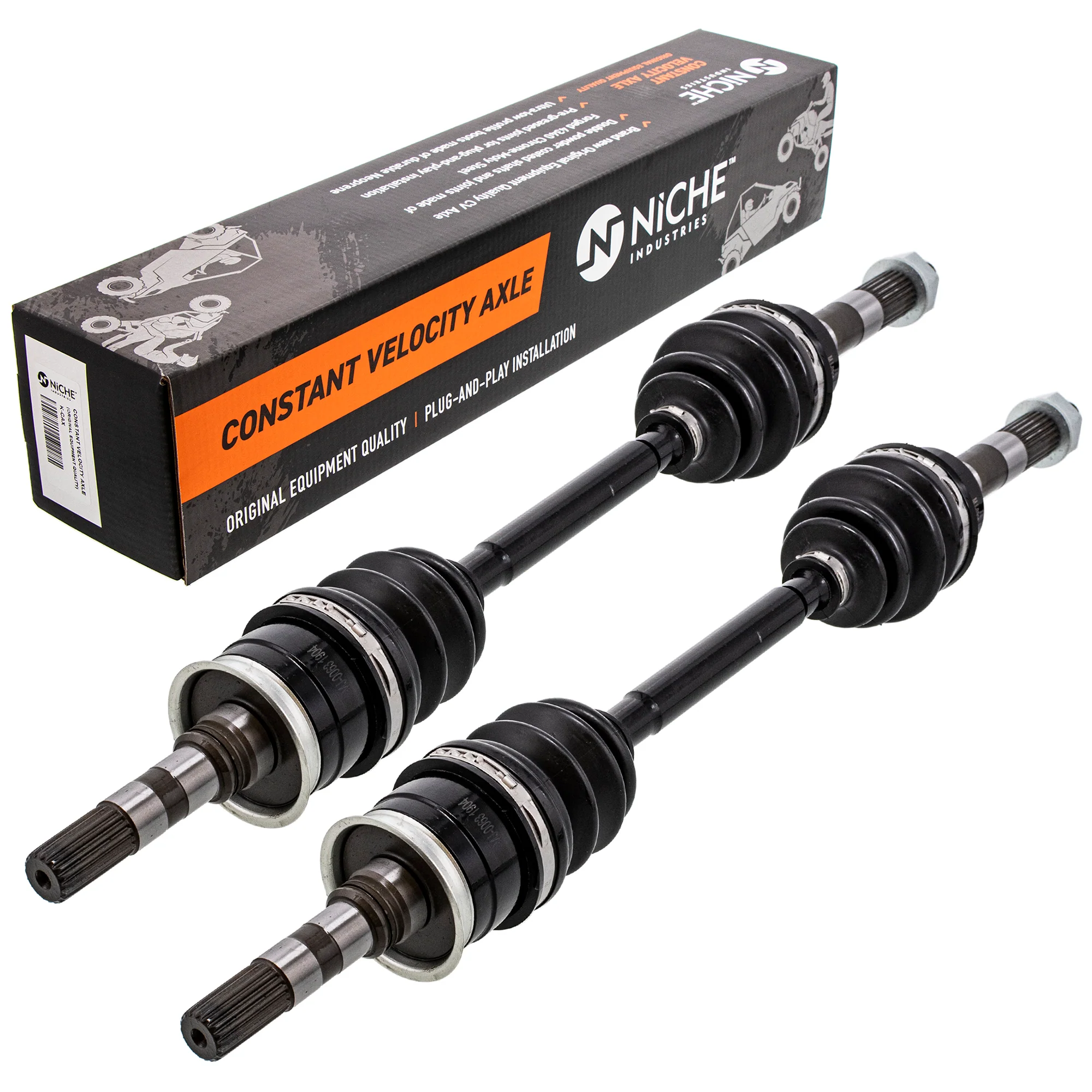

MK1012084 High Strength Drive Shaft CV Axle Assembly Kit Product Info:

• Front Axle Compressed Length 24 15/16, Inboard Splines 19T, Inboard Spline Diameter 2 7/16, Outboard Splines 24T, Outboard Spline Diameter 2 9/16, Shaft Diameter 13/16, Thread Measurement M18x1.5
• Rear Axle Compressed Length (Inches) 25.16; Outer Joint Splines 24T; Outer Joint Compressed Length (Inches) 6.41; Inner Joint Splines 15T; Inner Joint Compressed Length (Inches) 3.97;

Included in This Kit:

(QTY 2) NICHE 519-KCA2285X Front Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 59266-0801, 59266-0034, 39158-1102

(QTY 2) NICHE 519-KCA2318X Rear Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 39158-1120, 39158-1119

Compatible with the Following Vehicles:

Kawasaki Mule 4010 Trans FE: 2021
Kawasaki Mule 4010 Trans Diesel: 2011
Kawasaki Mule 4010 Trans Camo: 2014-2021
Kawasaki Mule 4010 Trans: 2011-2022
Kawasaki Mule 4010 SE: 2016-2018
Kawasaki Mule 4010 FE: 2021
Kawasaki Mule 4010 Diesel: 2011
Kawasaki Mule 4010: 2011-2022
Kawasaki Mule 3010 Trans Diesel: 2007-2008
Kawasaki Mule 3010 Trans: 2007-2008
Kawasaki Mule 3010 Diesel: 2007-2008
Kawasaki Mule 3010: 2007-2008
