MK1012314 CV Axle Kit Product Info:

• Front Axles Compressed Length (mm) 691; Outer Joint Splines 27T; Outer Joint Compressed Length (mm) 107.5; Inner Joint Splines 21T; Inner Joint Compressed Length (mm) 55
• Rear Axles Compressed Length (mm) 669; Outer Joint Splines 27T; Outer Joint Compressed Length (mm) 107.5; Inner Joint Splines 28T; Inner Joint Compressed Length (mm) 67.5

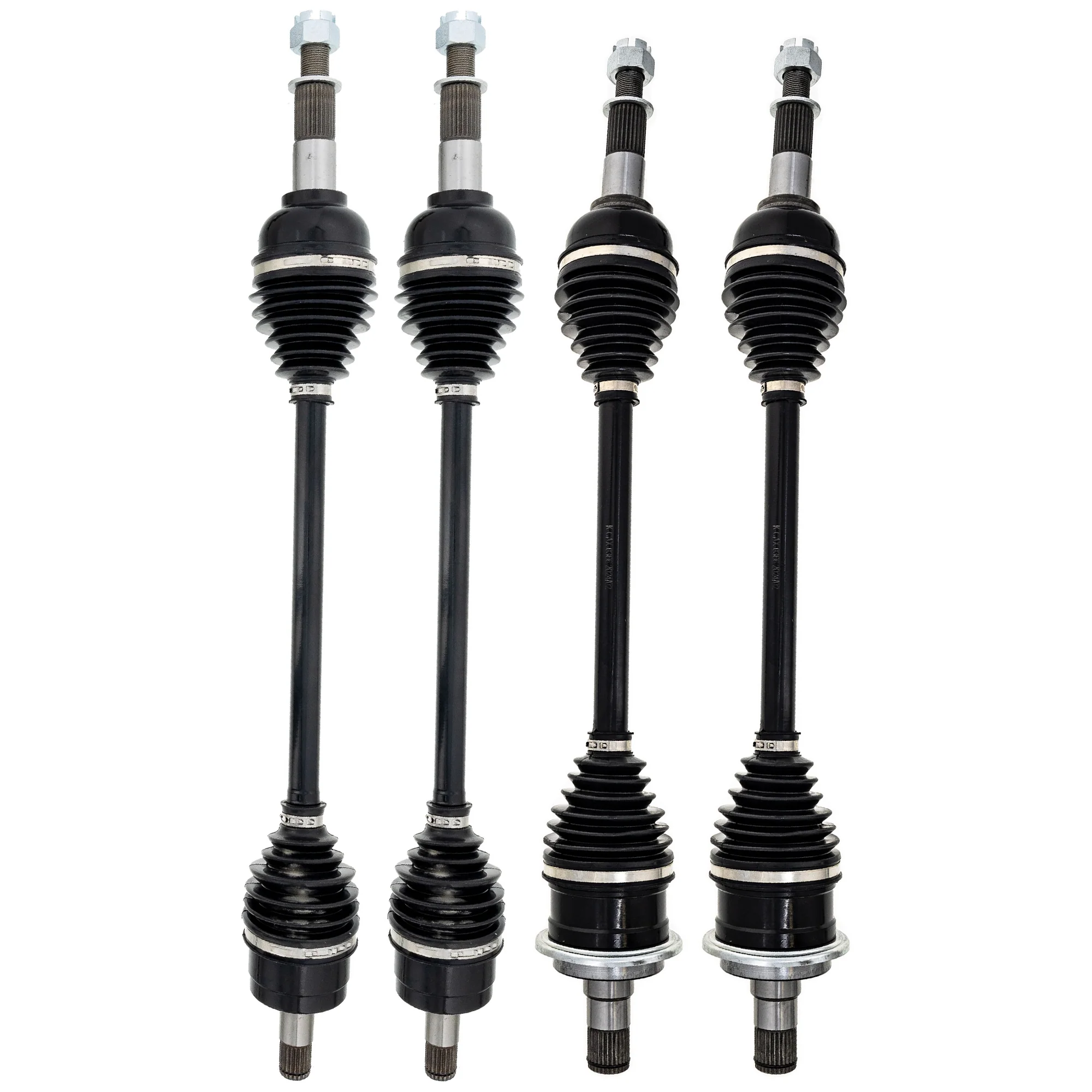

Included in This Kit:

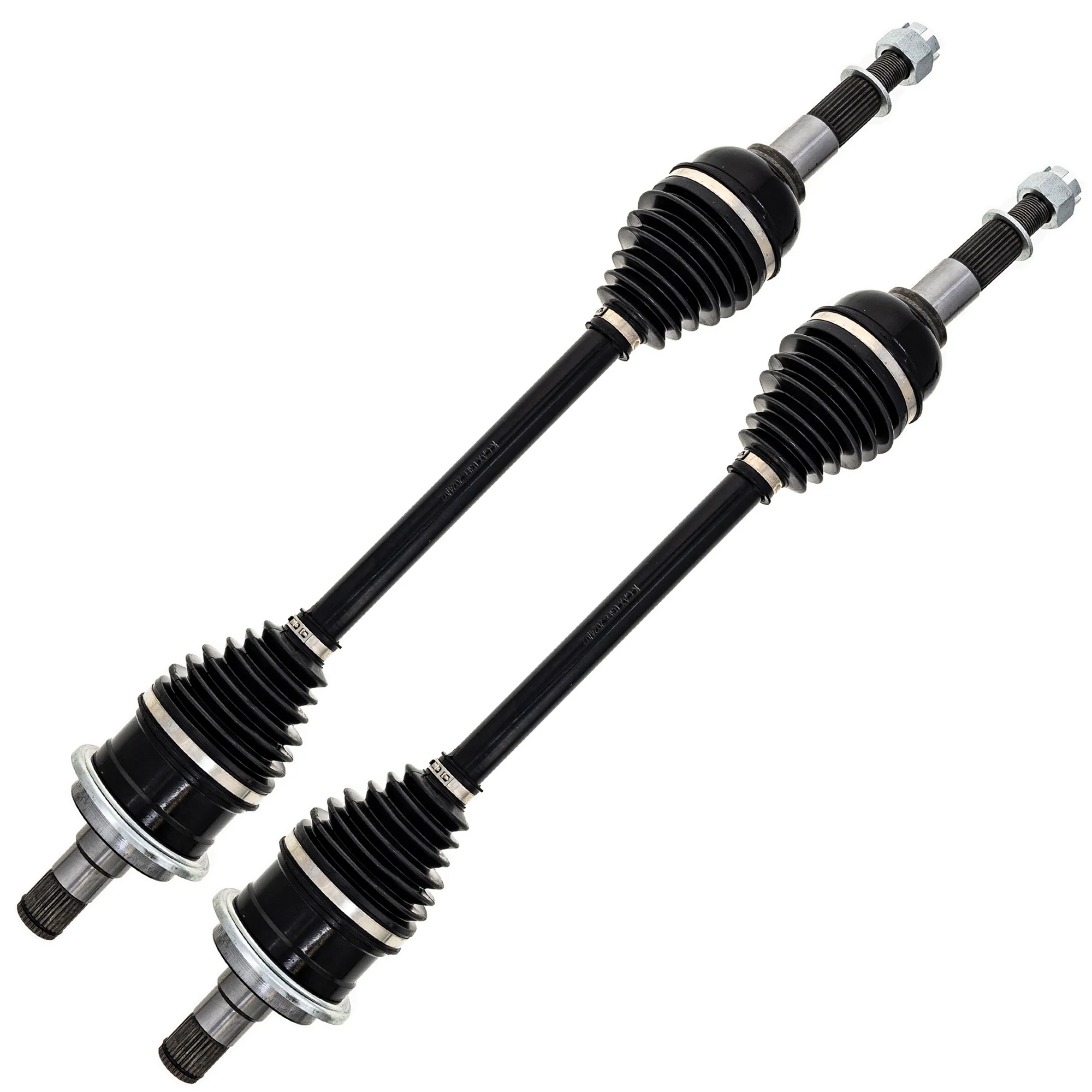

(QTY 2) NICHE 519-KCA2588X Rear Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 5HY0-280300-20000

(QTY 2) NICHE 519-KCA2589X Front Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 5BYA-270200

Compatible with the Following Vehicles:

CF-Moto UFORCE 1000 XL: 2022-2023
CF-Moto UFORCE 1000: 2021-2023
