MK1012631 Axle with Wheel Bearing and Seal Kit Product Info:

• NICHE Bearing 30x55x26; Diameters Inner (ID) 30mm; Outer (OD) 55mm; Height 26mm
• Front Left Axle Compressed Length 19 13/16, Inboard Splines 20T, Inboard Spline Diameter 2 7/16, Outboard Splines 21T, Outboard Spline Diameter 2 9/16, Shaft Diameter 3/4, Thread Measurement M18x1.5
• Front Right Axle Compressed Length 18 9/16, Inboard Splines 20T, Inboard Spline Diameter 2 9/16, Outboard Splines 21T, Outboard Spline Diameter 2 7/16, Shaft Diameter 13/16, Thread Measurement M18x1.5

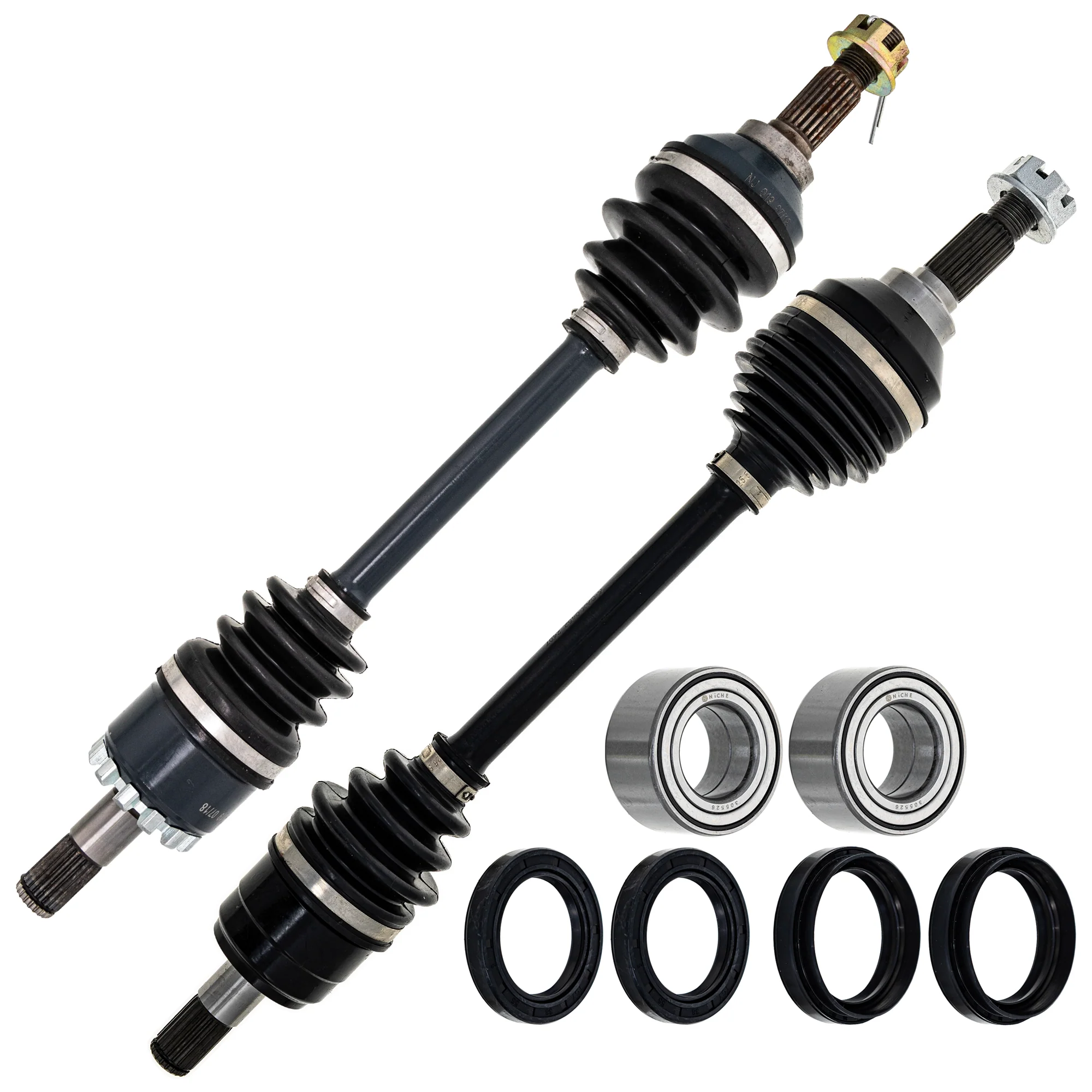

Included in This Kit:

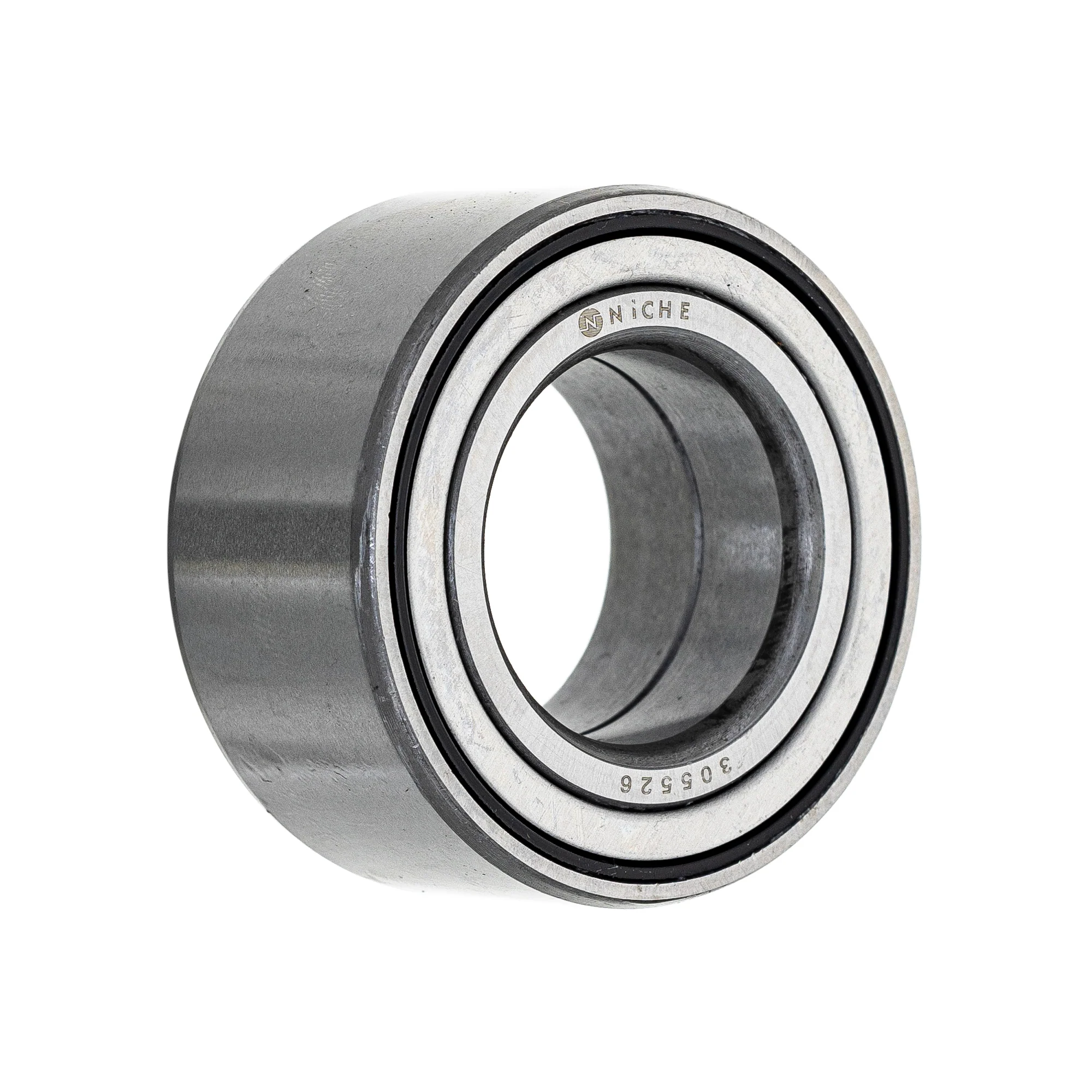

(QTY 2) NICHE 519-CBB2278R Double Row, Angular Contact, Ball Bearing

Substitute For OEM Part Numbers(s): K9204-51448, K9204-50095, 92045-1448, 92045-1222, 92045-0103, 92045-0095

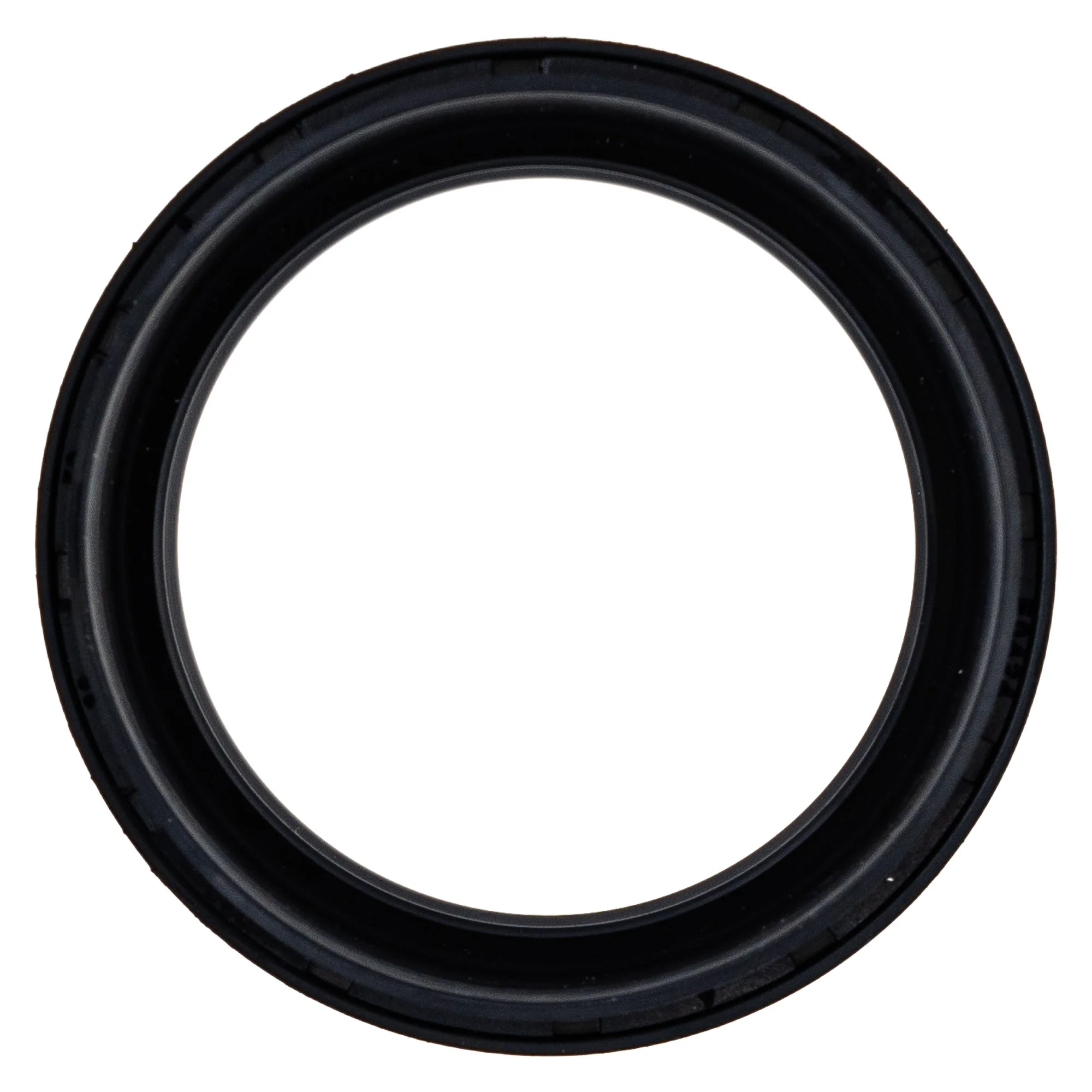

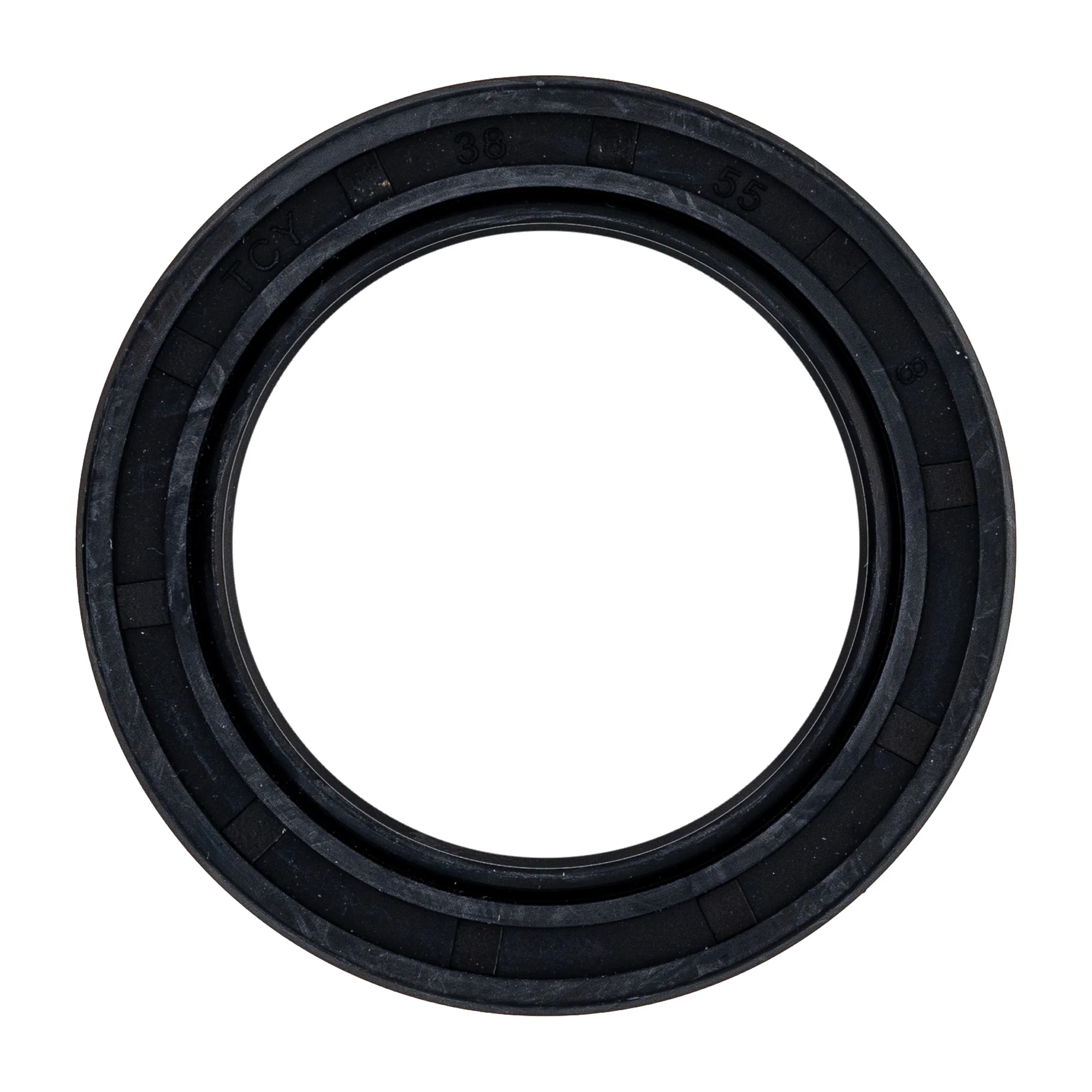

(QTY 2) NICHE 519-CSE2229A Seal Type TCY 38x55x8

Substitute For OEM Part Numbers(s): 93102-38383-00, 91203-957-003, 1402-011, 09283-38013

(QTY 2) NICHE 519-CSE2266A Seal Type TCY 38x50x8

Substitute For OEM Part Numbers(s): 92049-2270, 91212-ZW1-L01

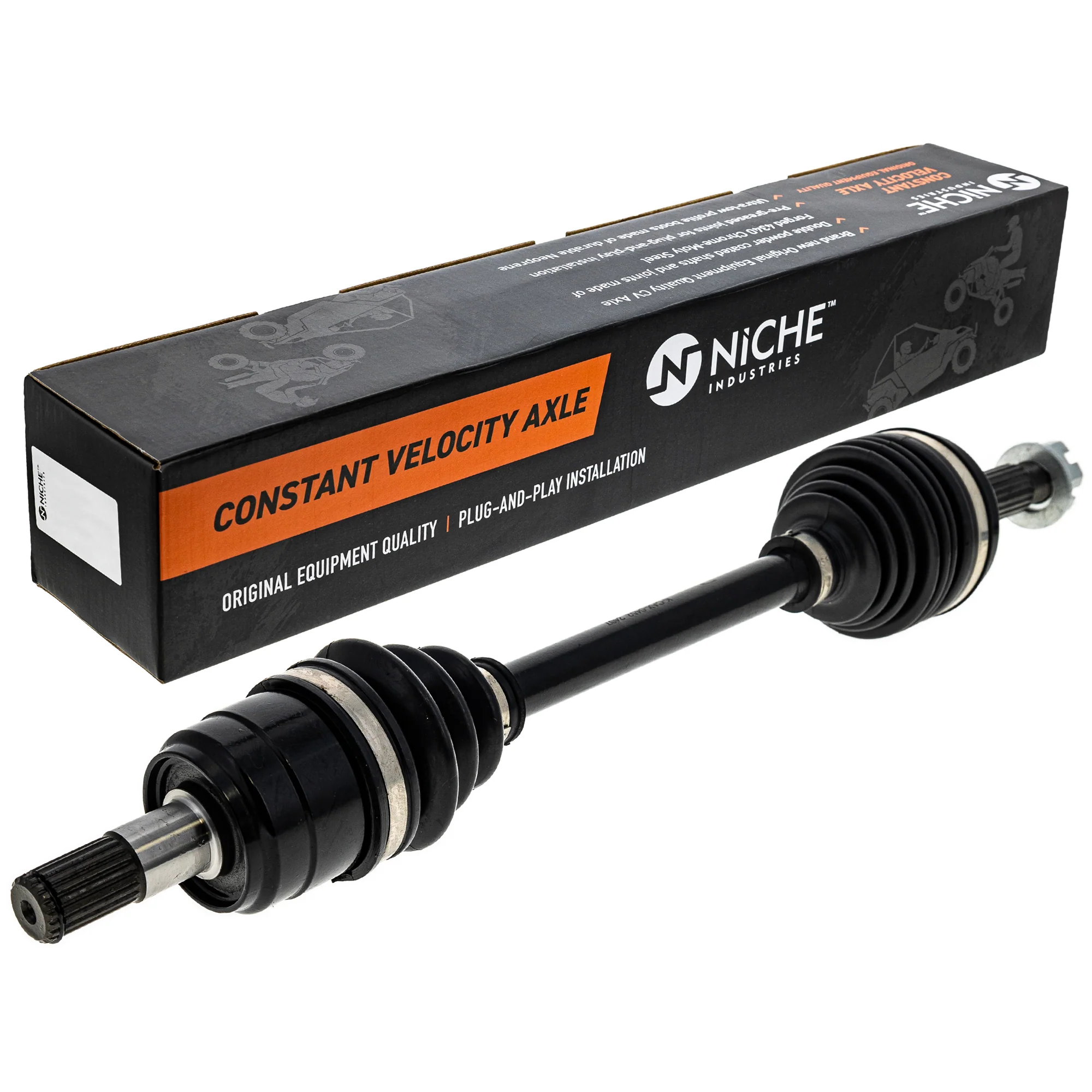

(QTY 1) NICHE 519-KCA2339X Front Left Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 59266-0024, 59266-0007

(QTY 1) NICHE 519-KCA2674X High Strength Drive Shaft CV Axle

Substitute For OEM Part Numbers(s): 59266-0025, 59266-0008

Compatible with the Following Vehicles:

Kawasaki Brute Force 750 EPS Camo: 2015-2020
Kawasaki Brute Force 750 EPS: 2012-2021
Kawasaki Brute Force 750: 2005-2021
Kawasaki Brute Force 650: 2006-2013
