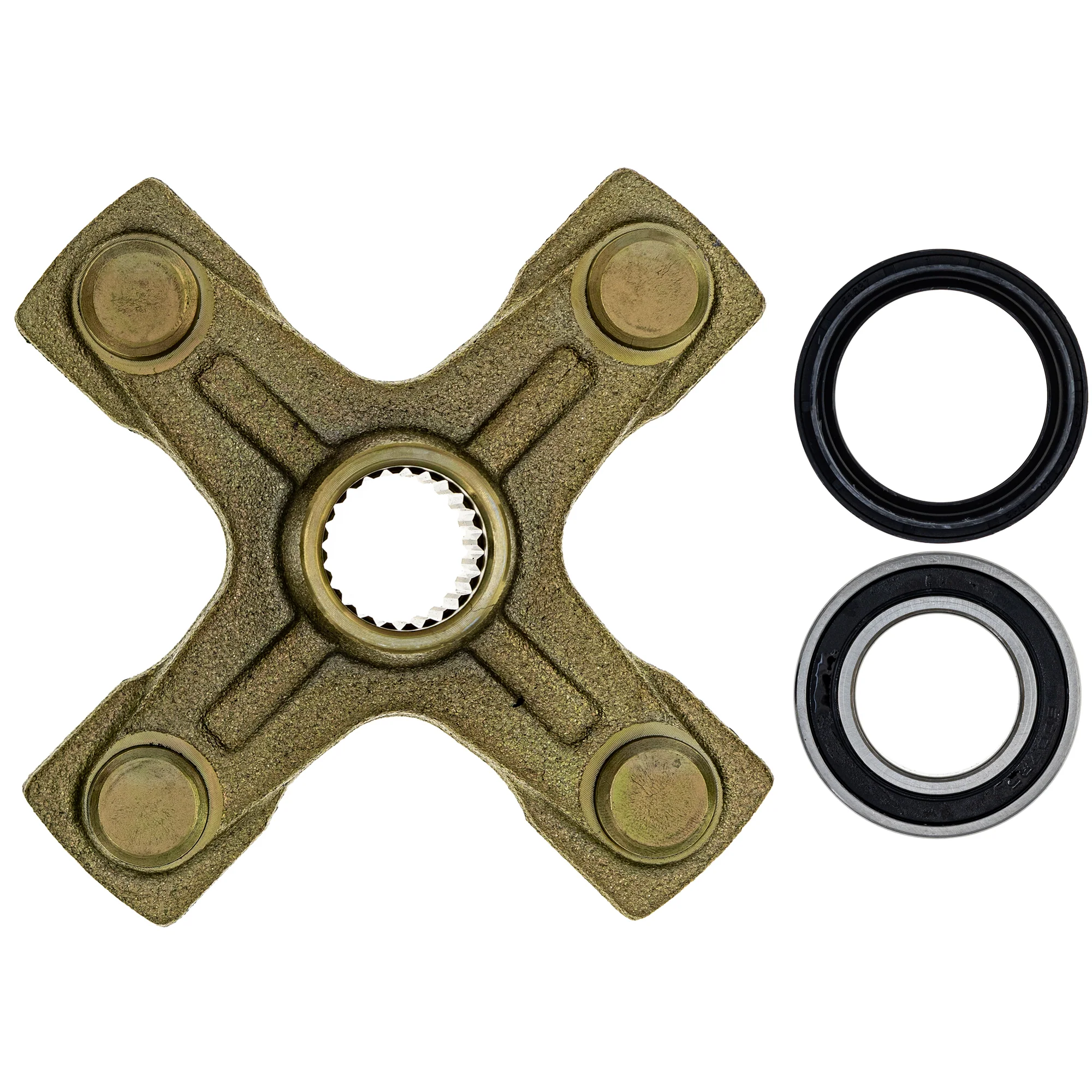

MK1013353 Wheel Hub with Bearing Kit Product Info:

• Wheel Hub Spline count 24; Bolt count 4; Bolt Circle Diameter (mm) ?115mm; Bolt Thread M10X1.25; Material C45 carbon steel
• Seal Type TCY 46x62x8/13 Material Nitrile-Butadiene Rubber (NBR); Seal Diameters Inner (ID) 46mm; Outer (OD) 62mm; Height 8mm
• Bearing Single Row, Deep Groove, Ball Bearing; BEARING MATERIAL Chrome Steel (GCr15); SEAL MATERIAL Rubber; ID mm 35mm; OD mm 62mm; Height mm 14mm

Included in This Kit:

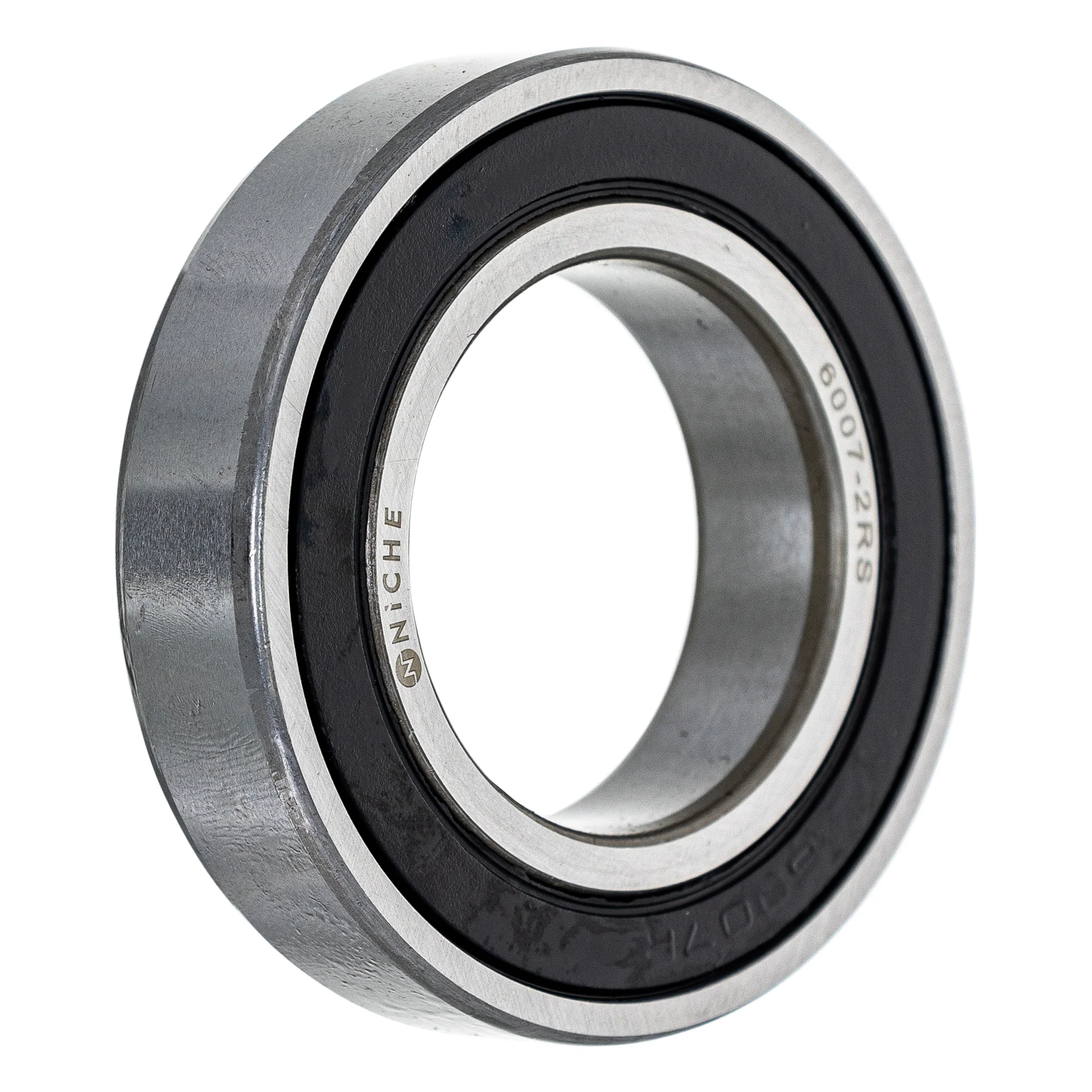

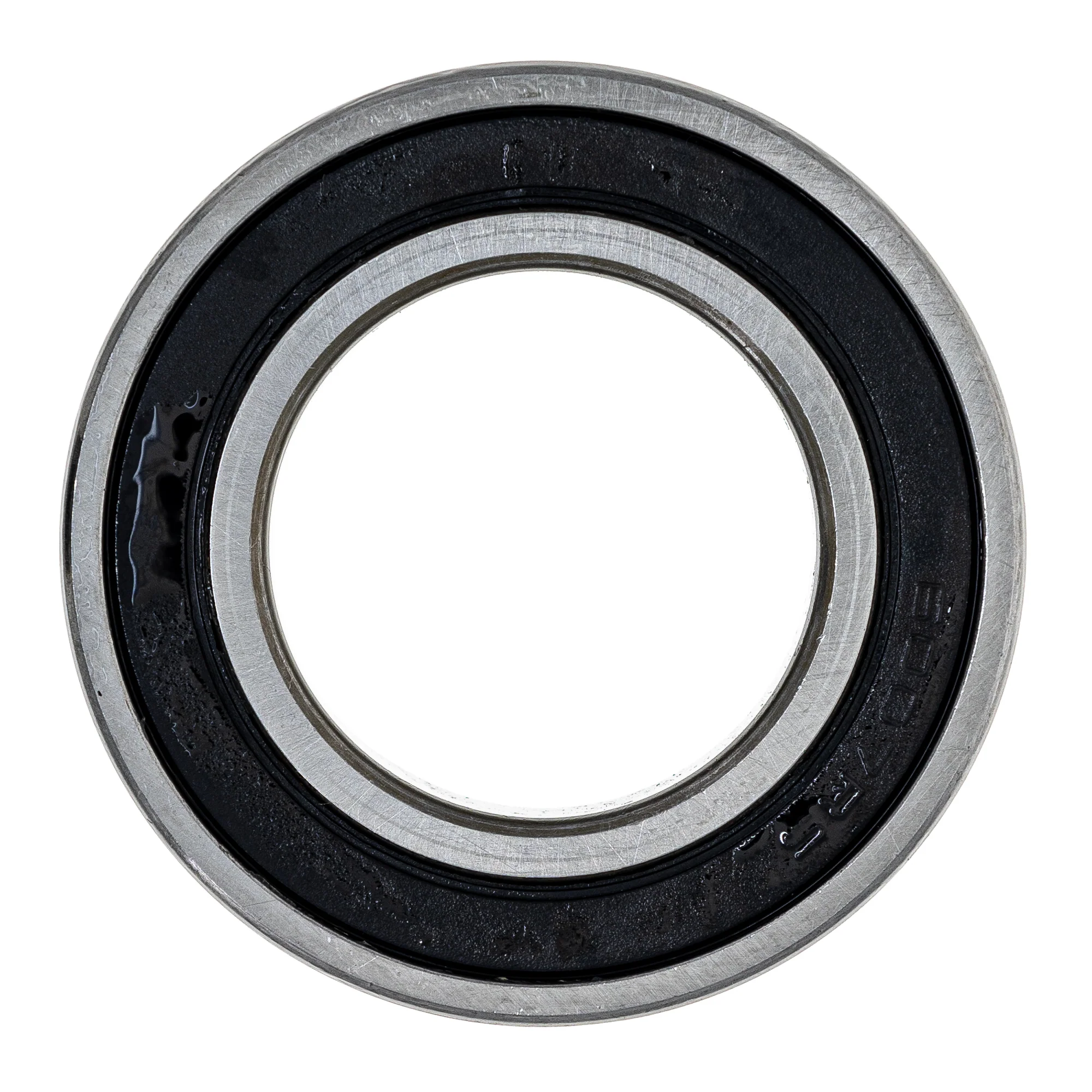

(QTY 1) NICHE 519-CBB2220R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): JD9323, JD8534, ES10548, AMX308163, A961006007LLU, 96150-60070-10, 93306-00710-00, 93306-00705-00, 93306-00702-00, 91054-HC4-003, 91052-HB3-771, 91052-H33-771, 835163M1, 80364908, 705500275, 601B6007, 601A6007UU, 601A6007, 4WV-46165-00-00, 4-156-462, 364908, 3515502, 3515501, 339800X1, 254684, 233883-8, 233883, 233833, 09262-35032, 06912-HN2-010, 06912-HN2-000, 0402-339

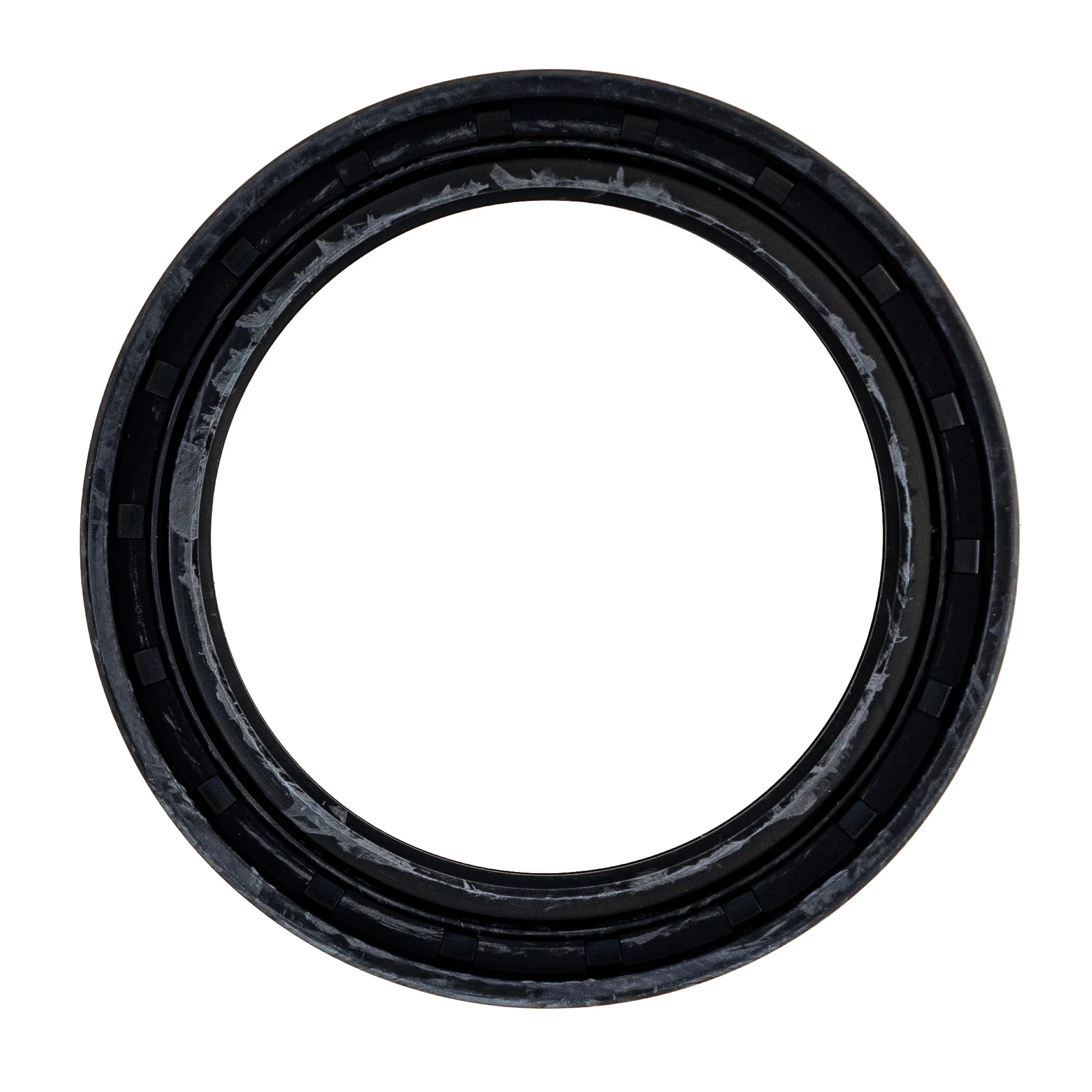

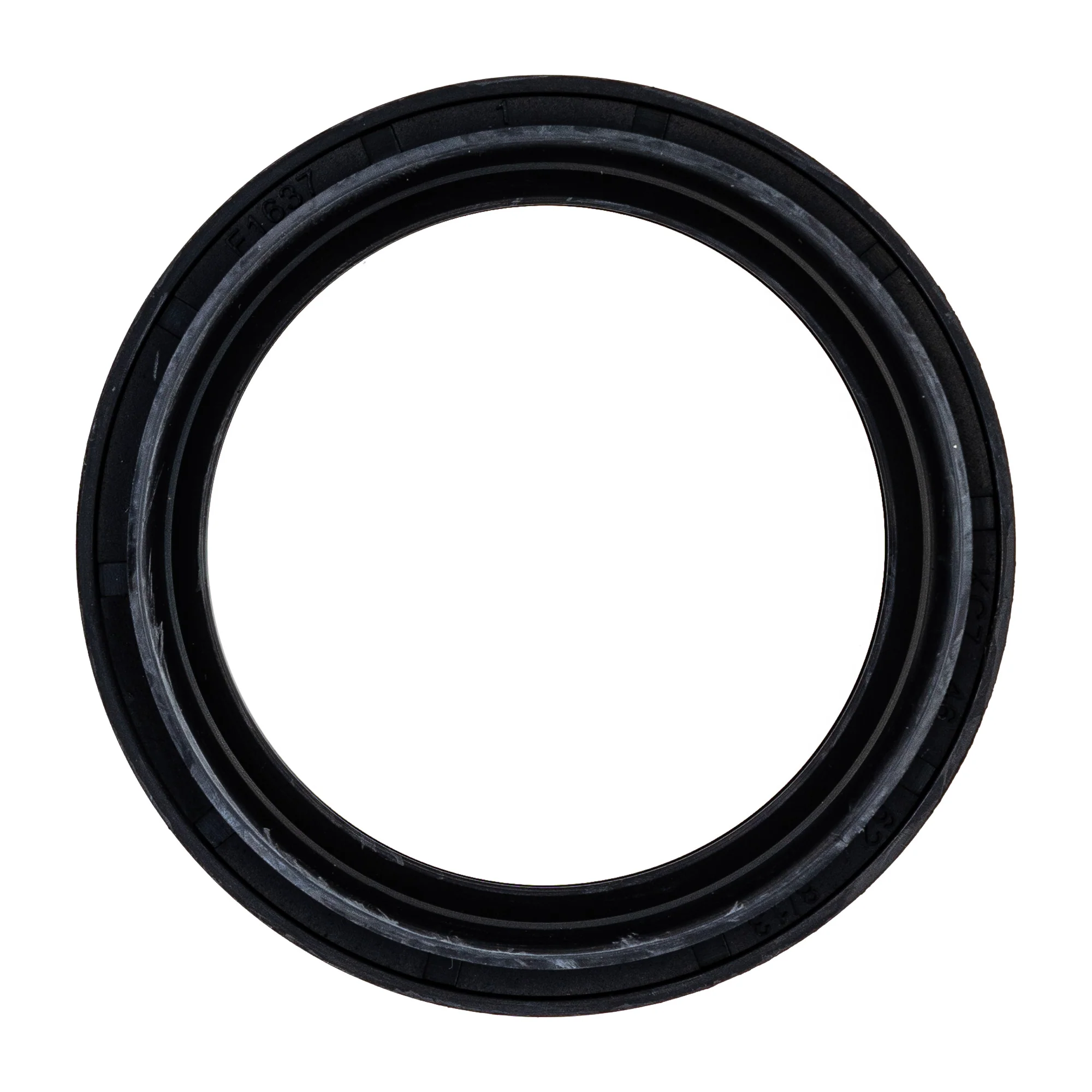

(QTY 1) NICHE 519-CSE2259A Seal Type TCY 46x62x8/13

Substitute For OEM Part Numbers(s):

(QTY 1) NICHE 519-CWH2227B Wheel Hub

Substitute For OEM Part Numbers(s): 5TG-25383-10-00, 5TG-25383-00-00, 5LP-25383-10-00, 5LP-25383-00-00, 2GU-25383-11-00, 2GU-25383-01-00, 1S3-25383-20-00, 1S3-25383-10-00, 1S3-25383-00-00, 1PE-F53K0-00-00

Compatible with the Following Vehicles:

Yamaha Raptor 350: 2004-2013
Yamaha Raptor 250: 2008-2013
Yamaha Raptor 125: 2011-2013
