MK1014752 Forged Crankshaft Kit Product Info:

• Number of Bearings: 2, Number of Seals: 3, Connecting Rod Length (Center to Center): 90mm
• Connecting Rod Big End Width : 17.8mm, Connecting Rod Big End (Inner Diameter): 38mm, Connecting Rod Small End Width: 15mm; Connecting Rod Small End (Inner Diameter): 16mm

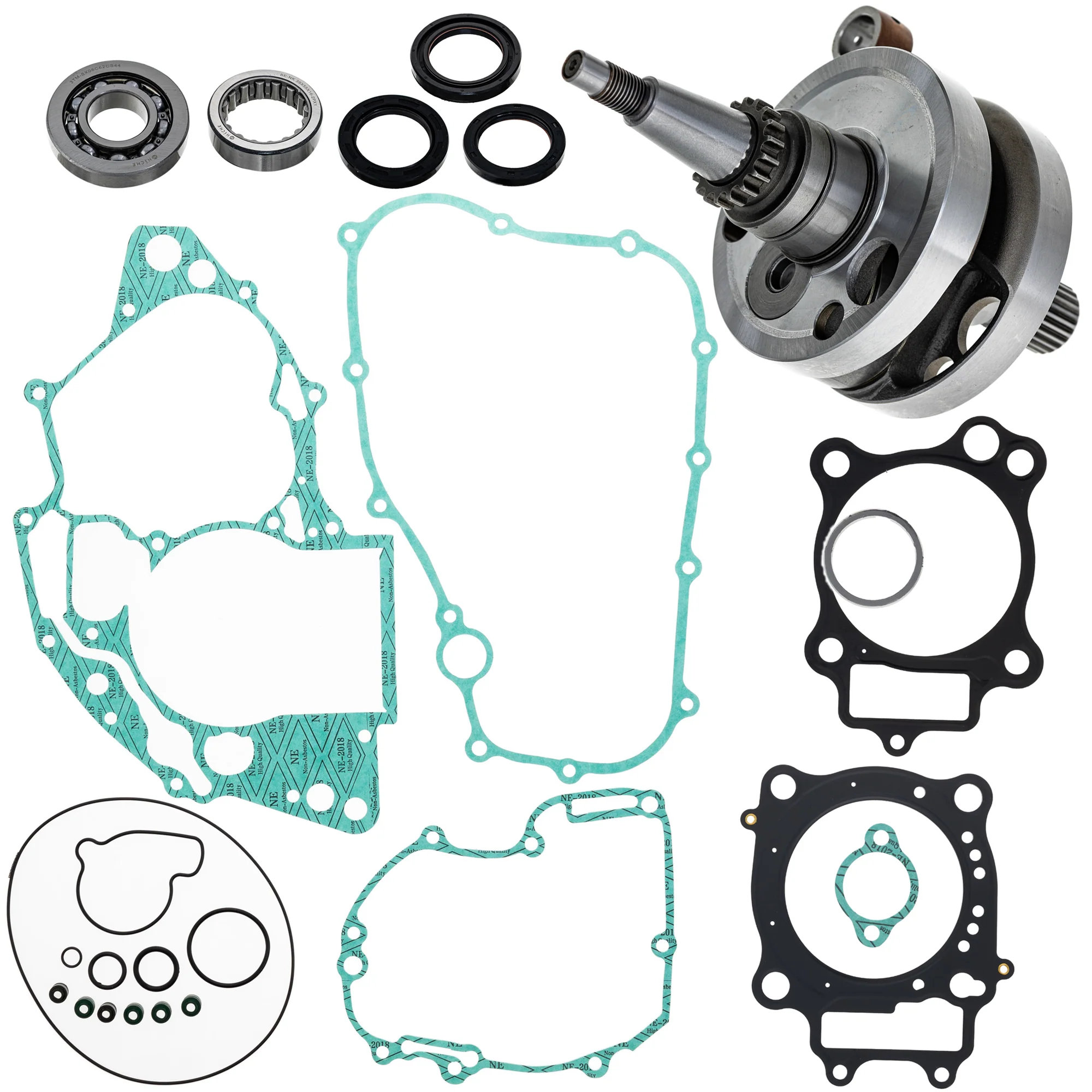

• Parts Included: (1) Crankshaft Assembly (2) Crankcase Gasket (1) Crankcase Clutch Cover (6) O-Ring (5)Valve Seal (1) Cylinder Head Gasket (1) Cylinder Base Gasket (1) Chain Tensioner Gasket (1) Crankcase Cover Gasket (1) Exhuast gasket

Included in This Kit:

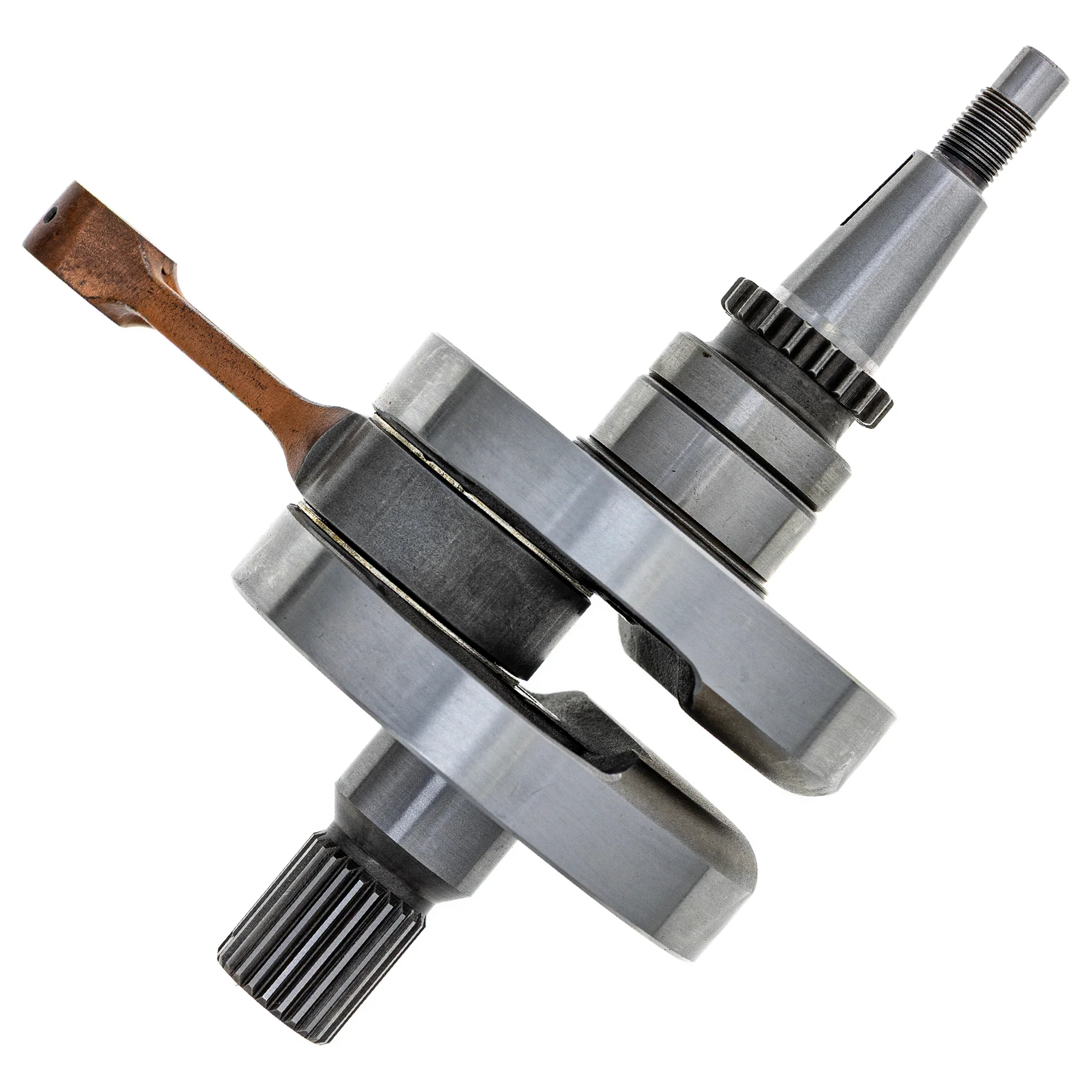

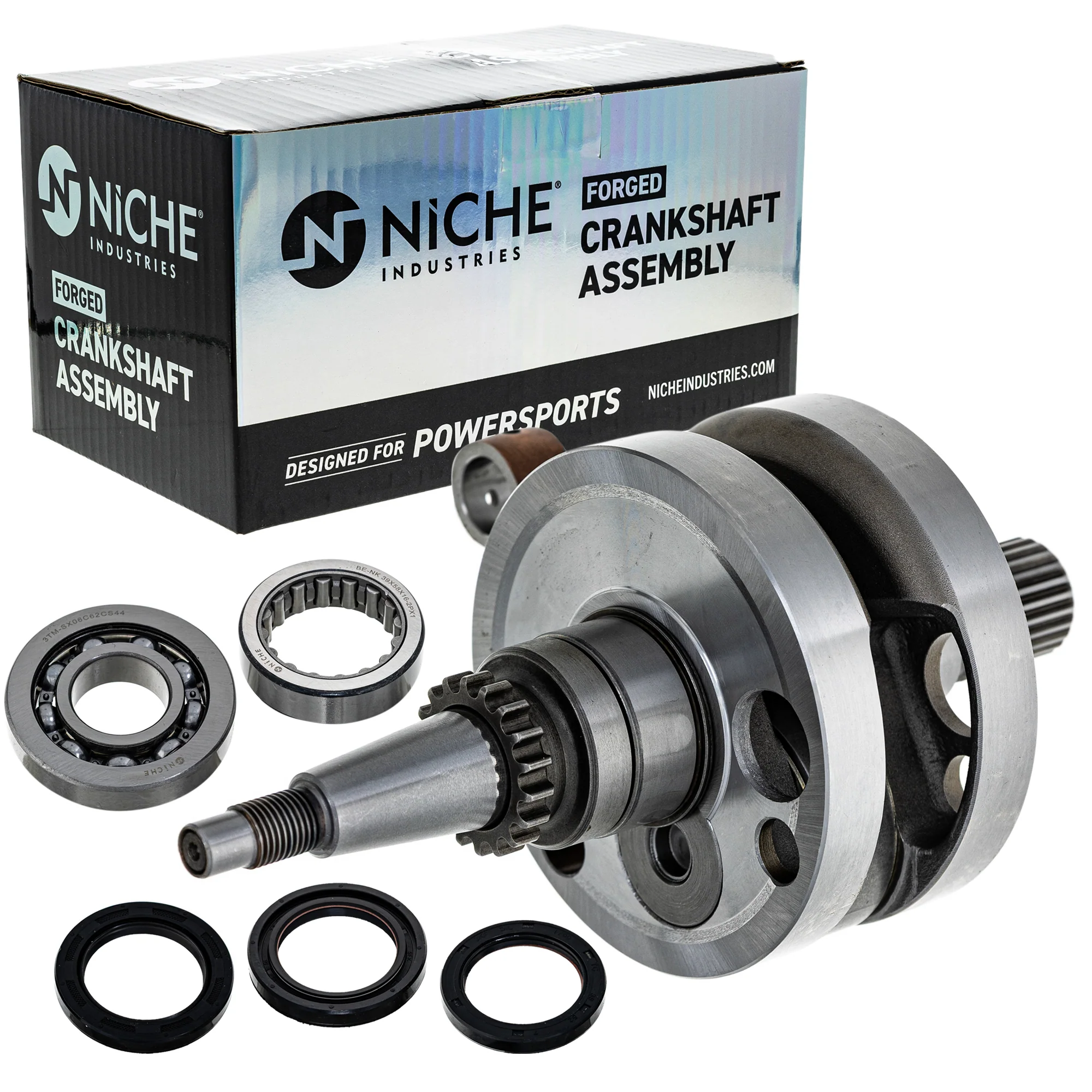

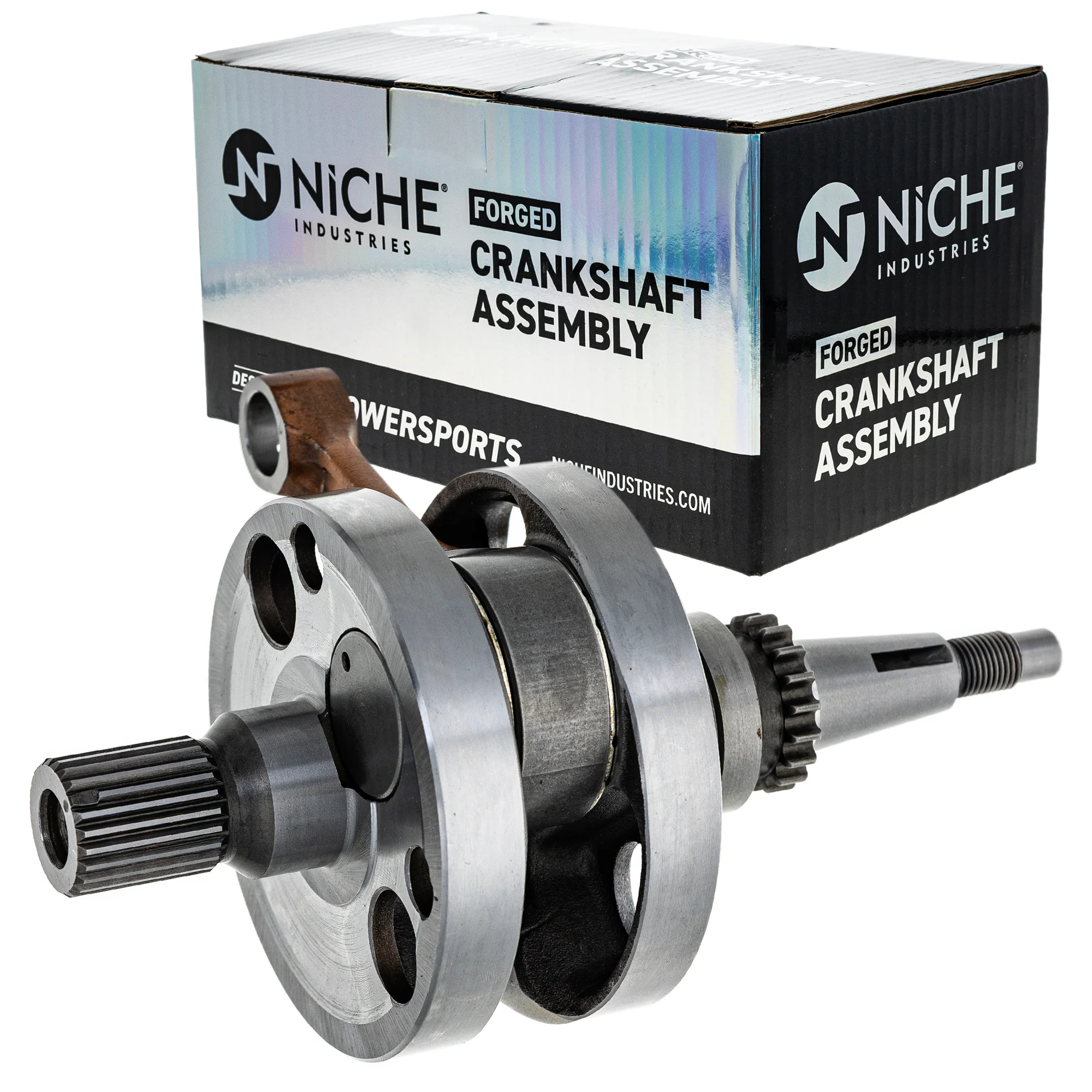

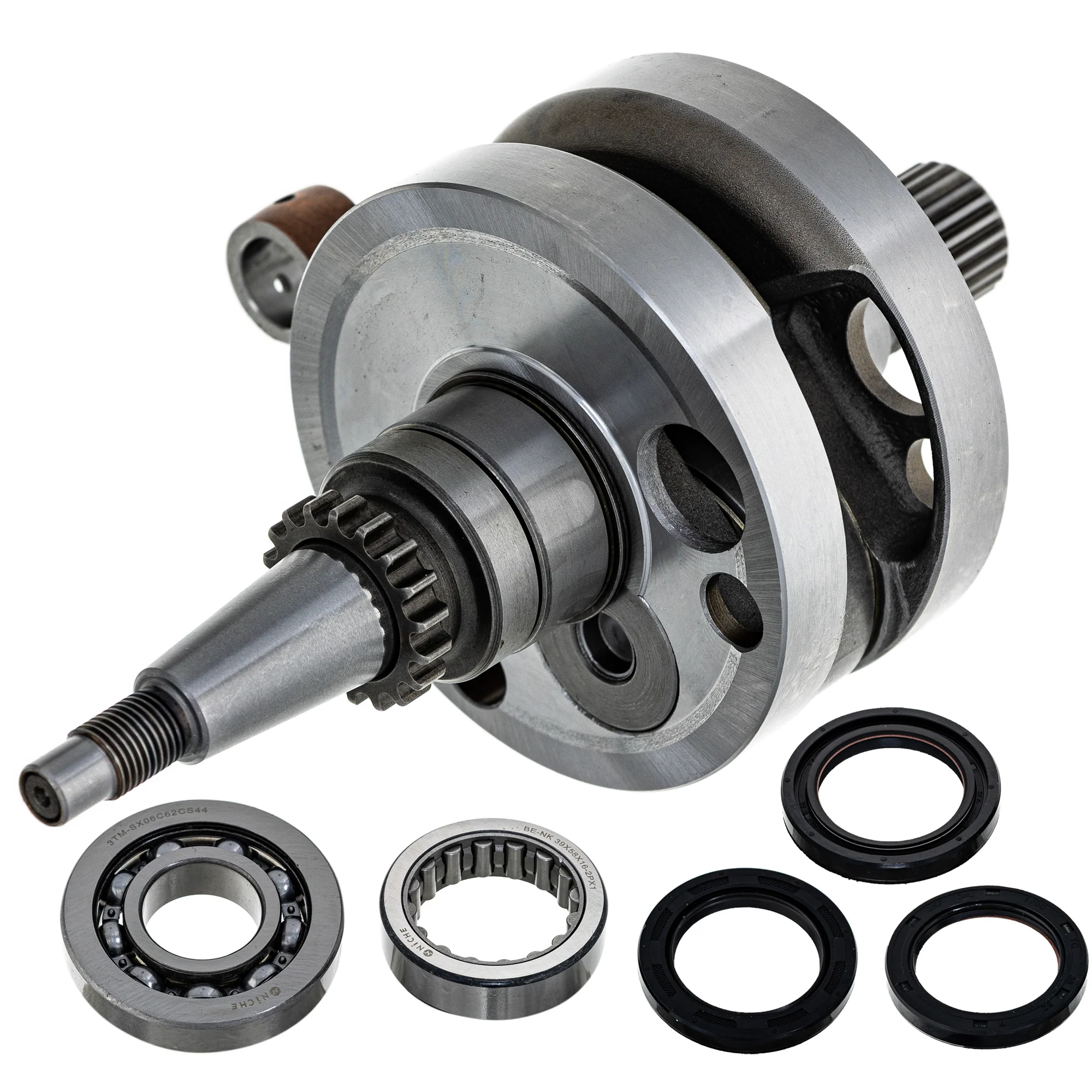

(QTY 1) NICHE 519-CCS2269H Forged Crankshaft Assembly

Substitute For OEM Part Numbers(s): 13000-KRN-A00, 13000-KRN-850, 13000-KRN-670

(QTY 1) NICHE 519-KGS2327K Gasket Kit

Substitute For OEM Part Numbers(s): 11395-KRN-671, 11395-KRN-670, 11394-KRN-A02, 11394-KRN-A01, 11394-KRN-A00, 11394-KRN-670, 11352-KRN-671, 11191-KRN-850, 11191-KRN-670

(QTY 1) NICHE 519-KGS2329K Gasket Kit

Substitute For OEM Part Numbers(s): 12391-KRN-670, 12251-KRN-671, 12191-KRN-731, 12191-KRN-671

Compatible with the Following Vehicles:

Honda CRF250R: 2004-2007
