MK1015474 Forged Crankshaft Piston Gasket Kit Product Info:

• Crankshaft Number of Bearings: 2, Number of Seals: 3, Connecting Rod Length (Center to enter)(mm): 105.5mm
• Connecting Rod Big End Width (mm): 19mm, Big End (Inner Diameter)(mm): 42mm
• Connecting Rod Small End Width(mm): 18mm, Connecting Rod Small End (Inner Diameter)(mm): 19mm
• Piston Diameter (mm): 96, Compression Ratio: 12.80:1, Material: Aluminum, Forged/Cast: Proprietary Forged Side Relief (FSR), Surface Coating: No, Piston Head Type (Flat/Dome): Dome

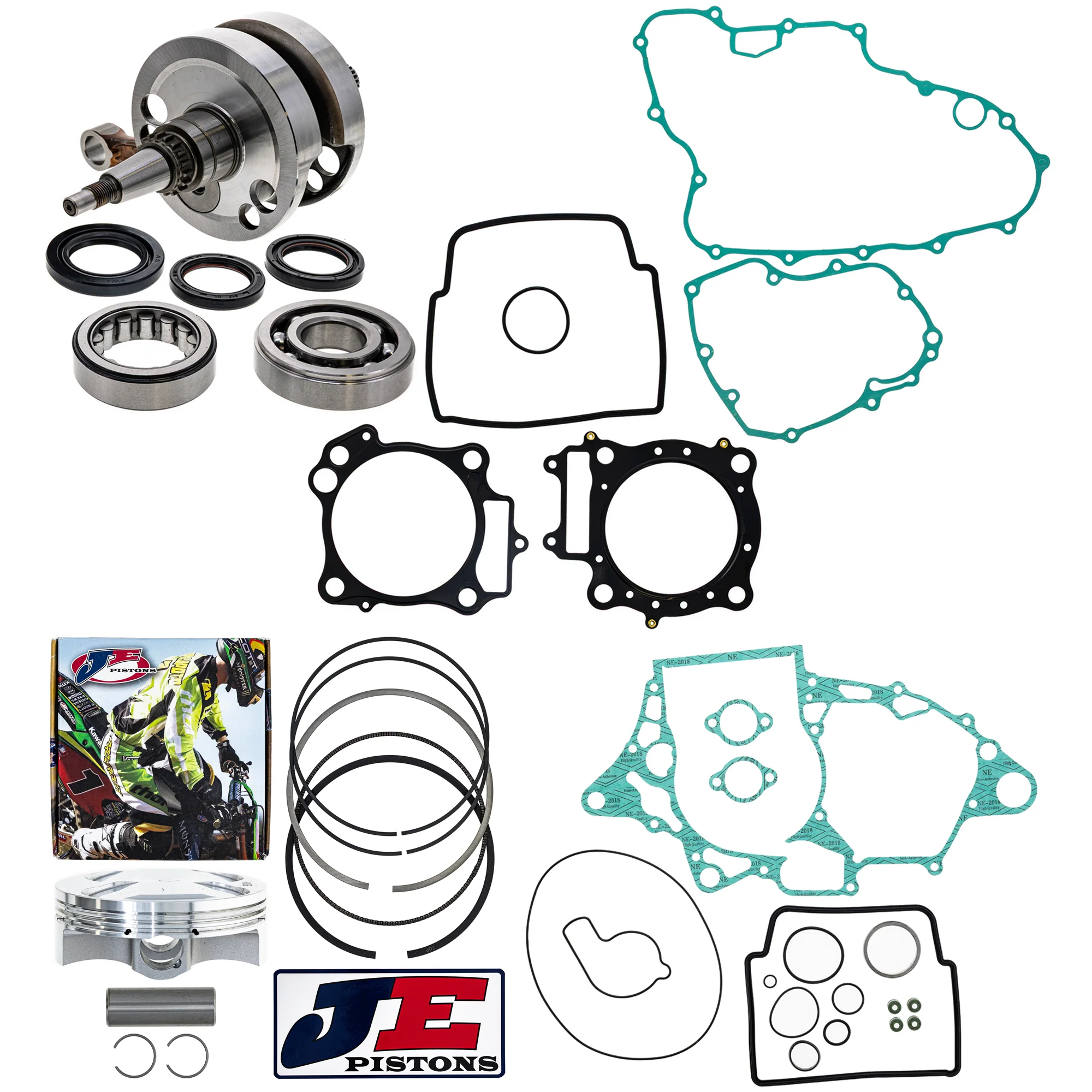

Included in This Kit:

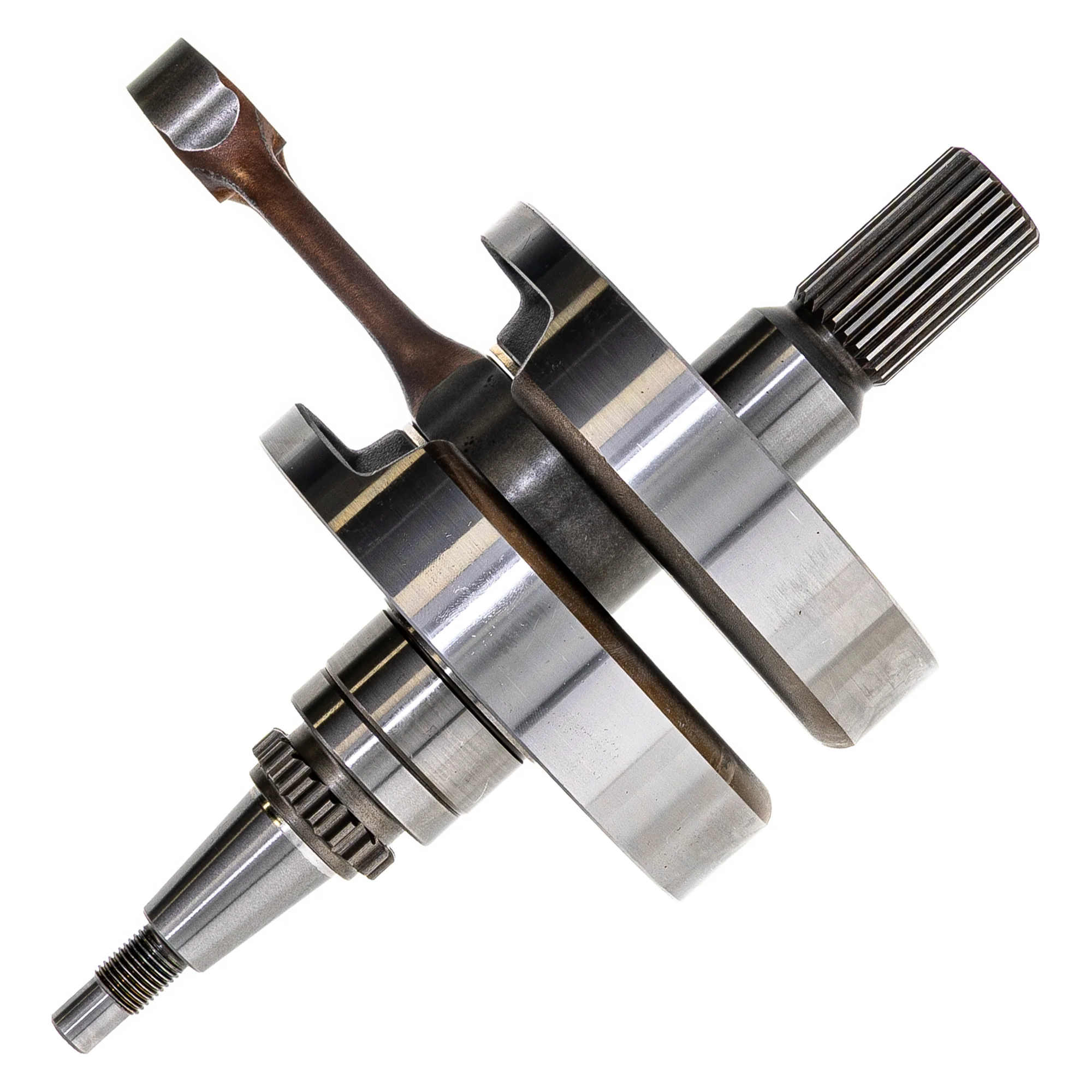

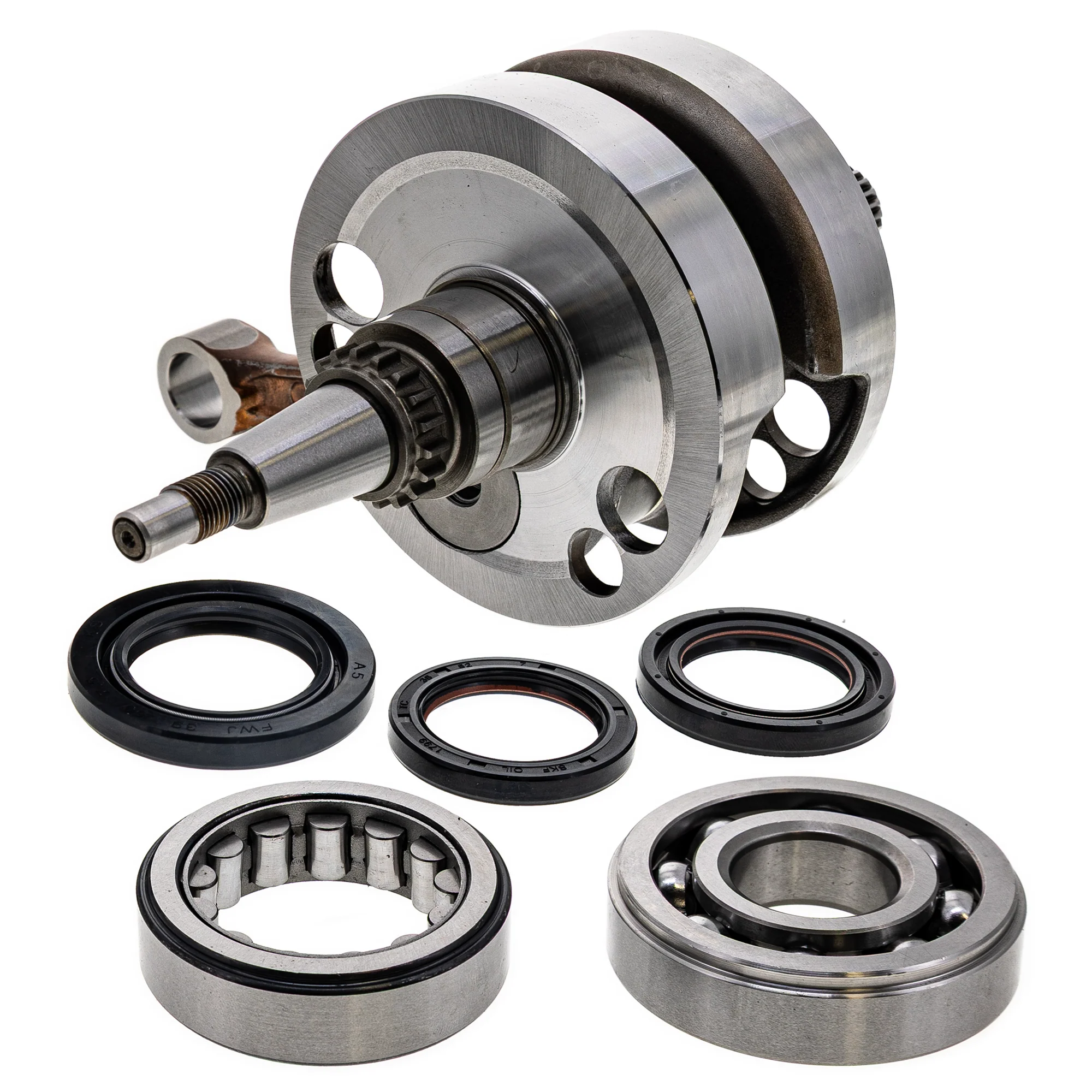

(QTY 1) NICHE 519-CCS2267H Forged Crankshaft Assembly

Substitute For OEM Part Numbers(s): 13000-MEY-A21, 13000-MEY-A20, 13000-MEY-670

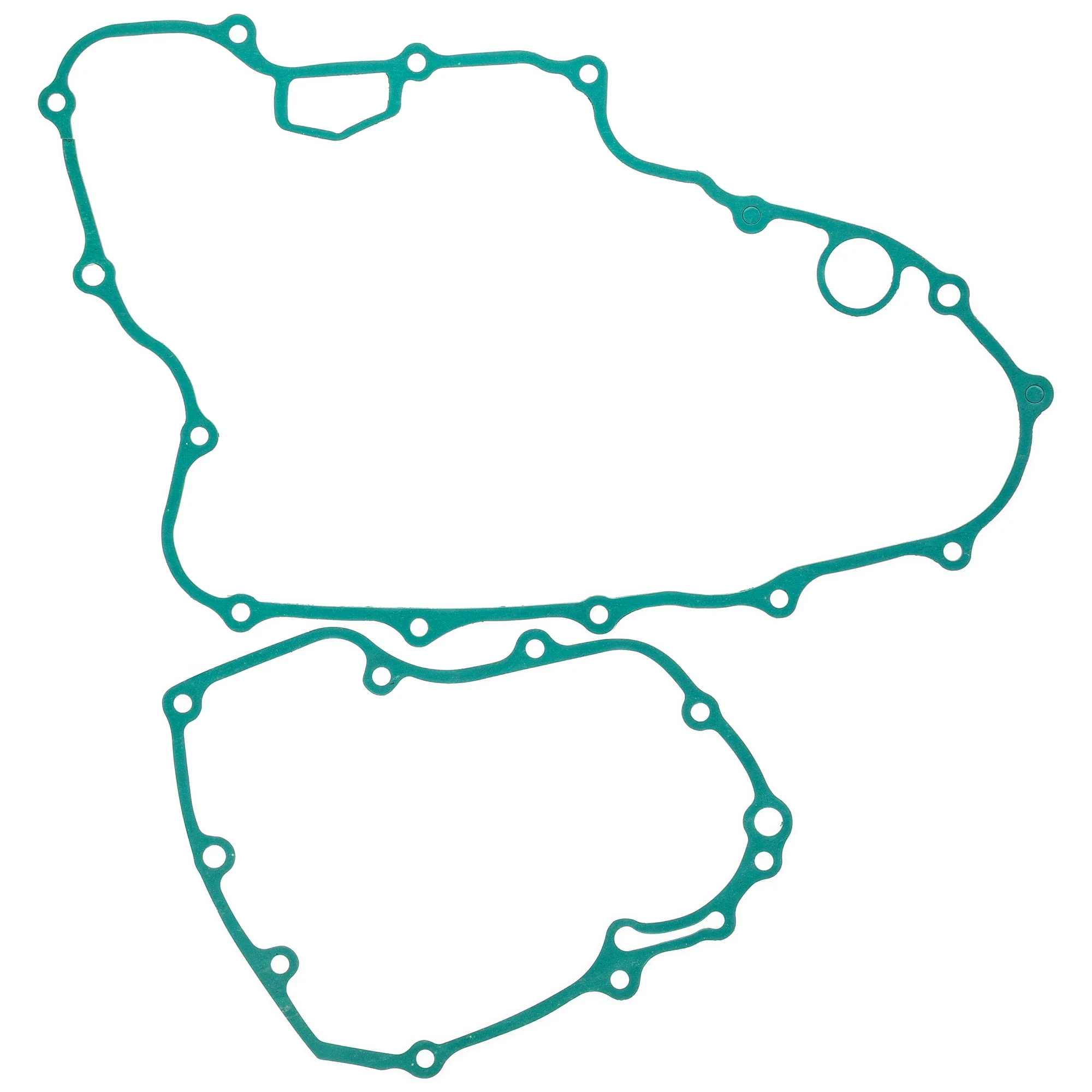

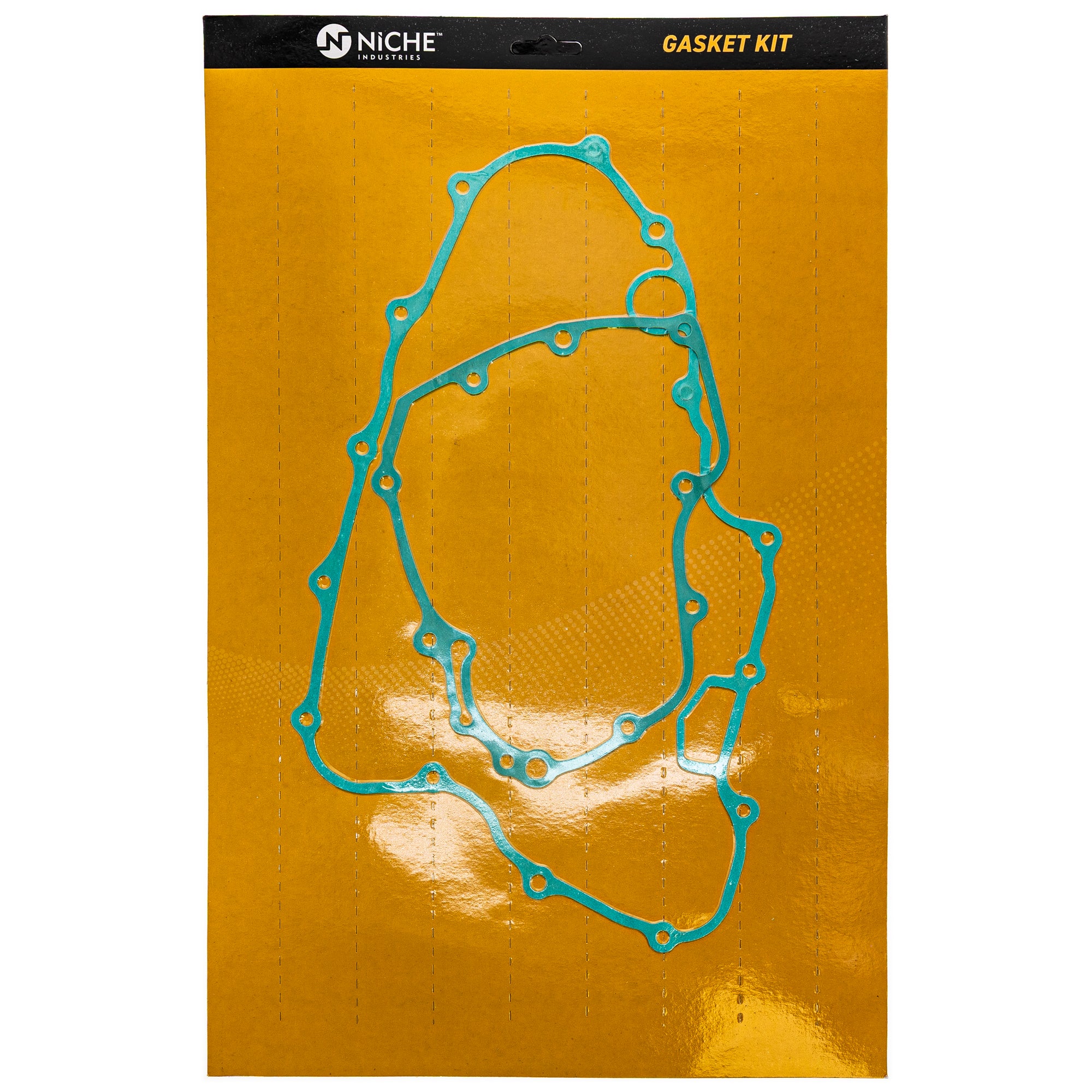

(QTY 1) NICHE 519-KGS2328K Gasket Kit

Substitute For OEM Part Numbers(s): 19226-MEB-670, 12391-MEB-670, 11352-HP1-670, 11191-HP1-600

(QTY 1) NICHE 519-KGS2283K Gasket Kit

Substitute For OEM Part Numbers(s): 91373-733-003, 12391-MEB-670, 12251-MEY-671, 12191-HP1-601

(QTY 1) NICHE 519-KGS2241K Crank Case Gasket Kit

Substitute For OEM Part Numbers(s): 11395-HP1-600, 11394-HP1-600

(QTY 1) NICHE 247613 JE Piston Kit

Substitute For OEM Part Numbers(s): 13101-HP1-600

Compatible with the Following Vehicles:

Honda TRX450 R ES 2X4: 2006-2014
Honda TRX450 R 2X4: 2006-2009
