MK1015478 Forged Crankshaft Piston Gasket Kit Product Info:

• Crankshaft Connecting Rod Length (Center to enter)(mm): 136.5mm
• Connecting Rod Big End Width(mm): 22mm, Connecting Rod Big End(Inner Diameter)(mm): 45mm
• Connecting Rod Small End Width (mm): 22mm, Connecting Rod Small End (Inner Diameter)(mm): 22mm
• Piston Diameter (mm): 100, Compression Ratio: 11.0:1, Material: 2618 aluminum, Forged/Cast: Forged, Surface Coating: Skirt Coating, Piston Head Type (Flat/Dome): Dome

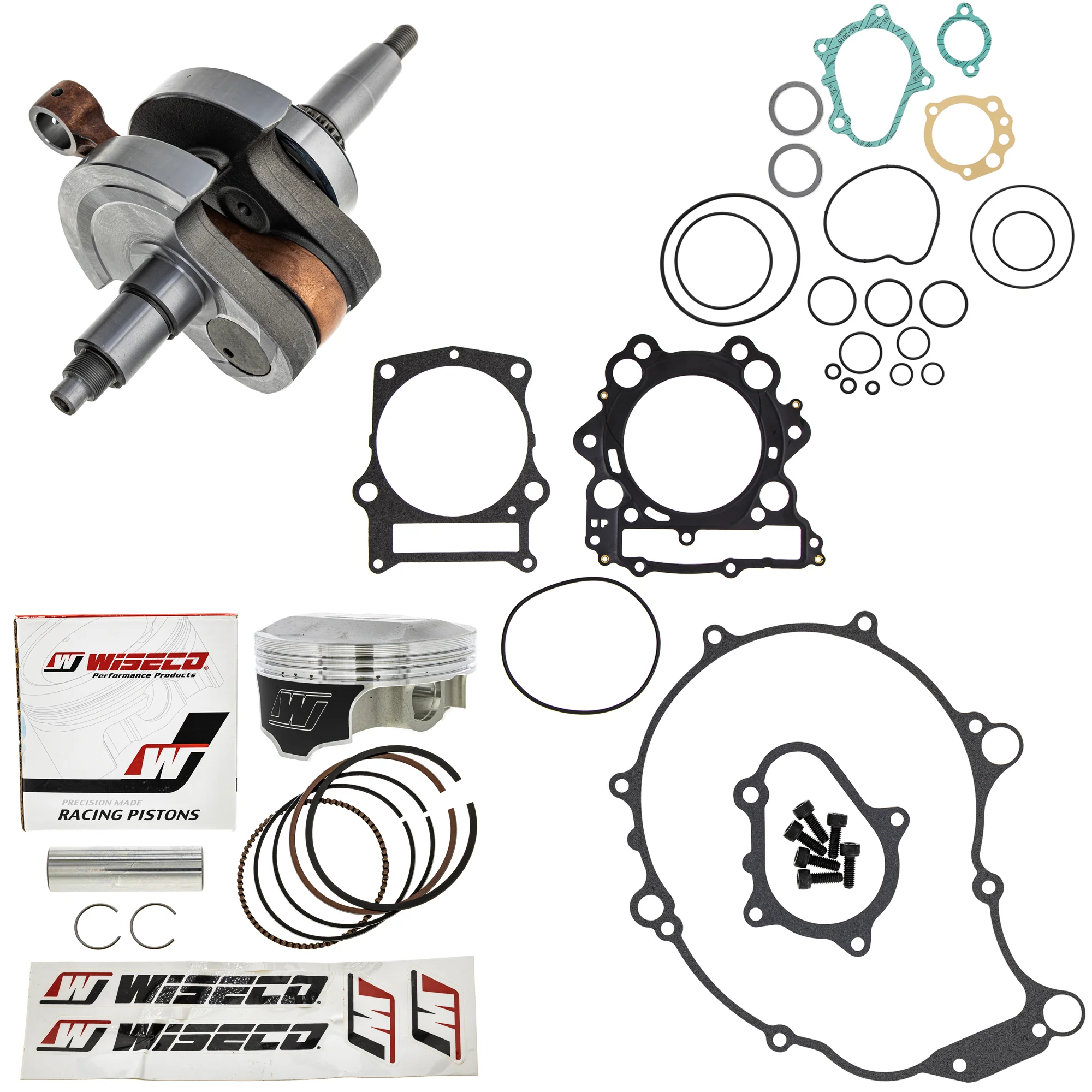

Included in This Kit:

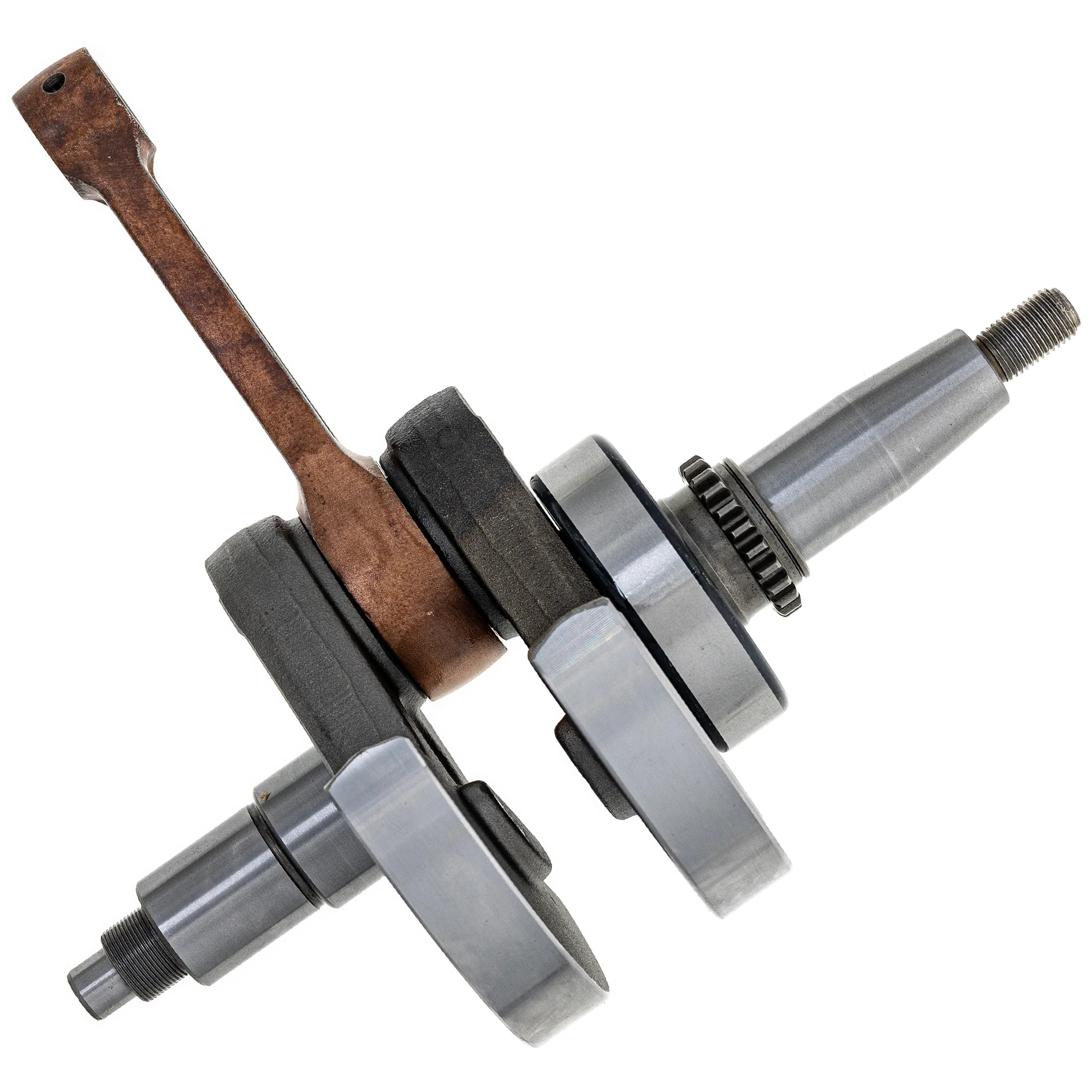

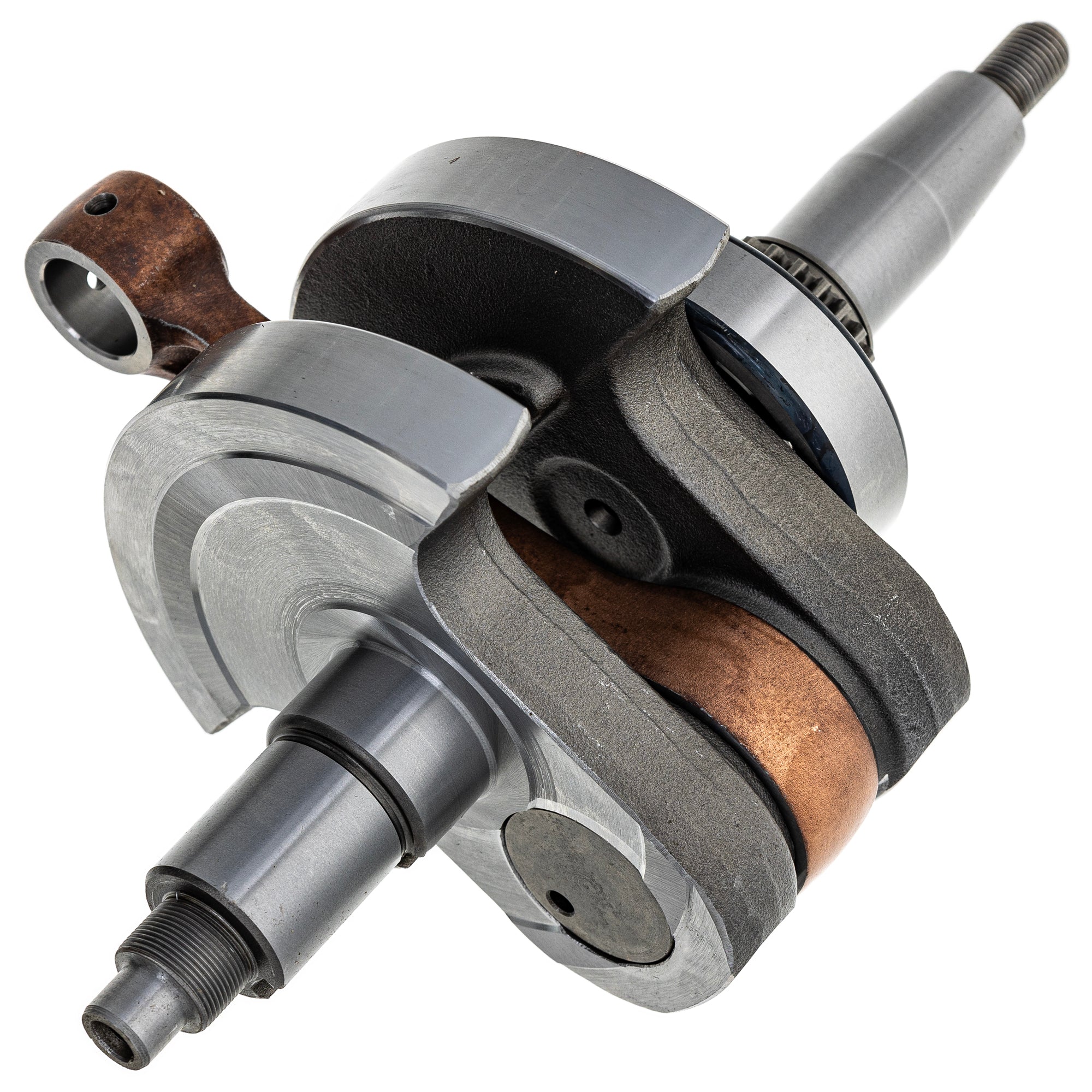

(QTY 1) NICHE 519-CCS2261H Forged Crankshaft Assembly

Substitute For OEM Part Numbers(s): 5LP-11400-11-00, 5LP-11400-10-00

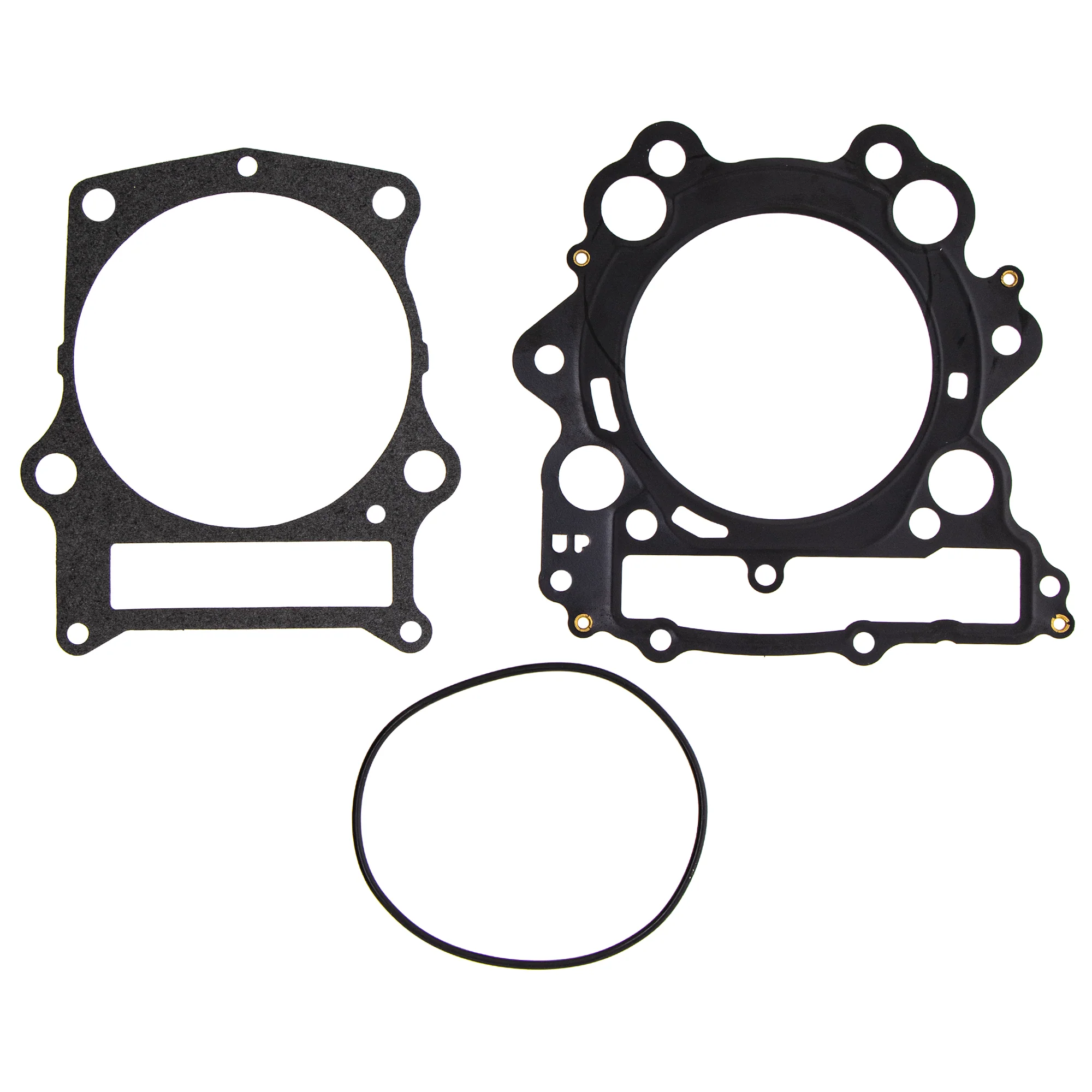

(QTY 1) NICHE 519-KGS2254K Gasket Kit

Substitute For OEM Part Numbers(s): 93211-01467-00, 5KM-11351-00-00, 3YF-11351-00-00, 3YF-11181-00-00

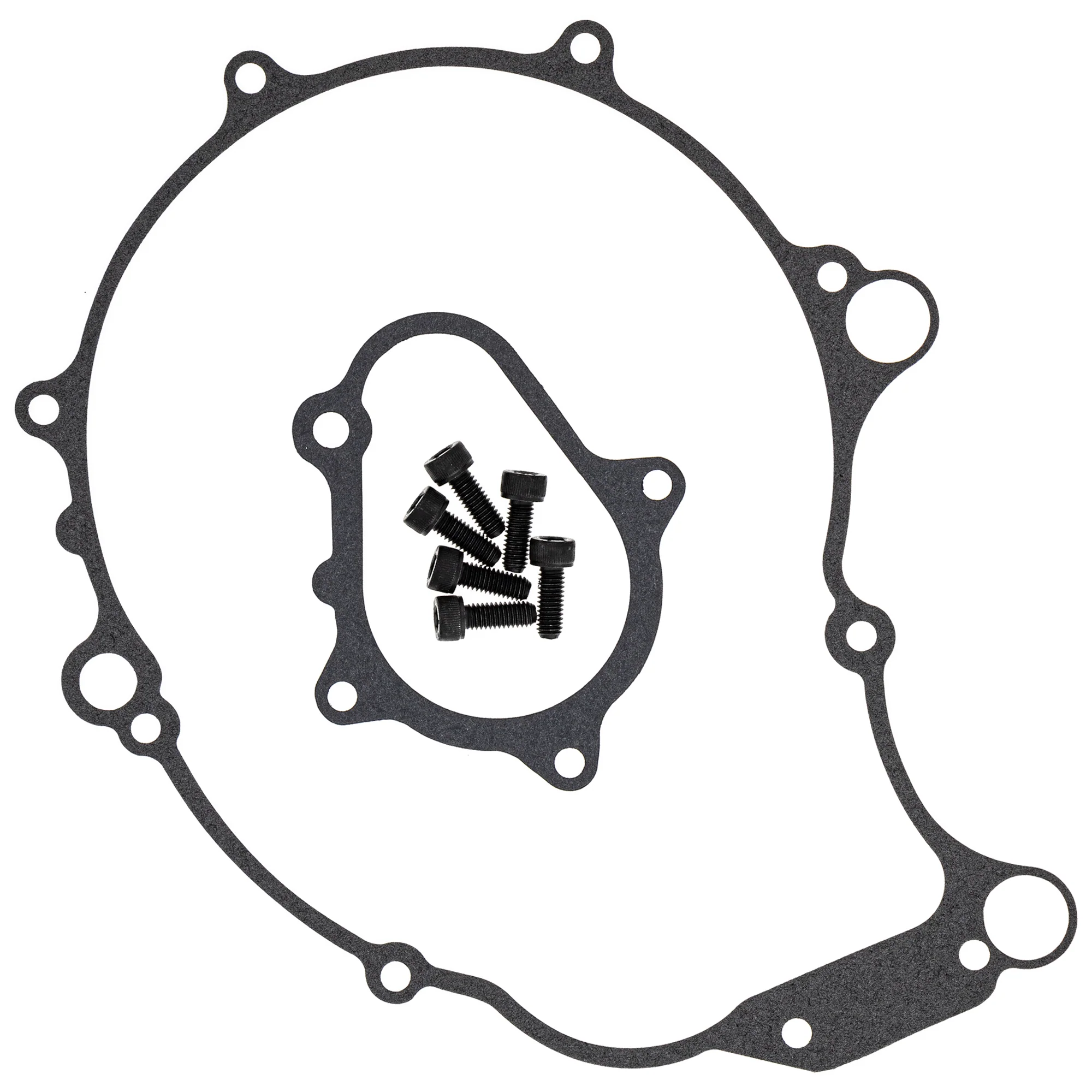

(QTY 1) NICHE 519-KGS2233K Crankcase Gasket & Starter Clutch Screw

Substitute For OEM Part Numbers(s): 91317-06014-00, 91316-06014-00, 90110-06004-00, 5LP-15462-00-00, 5LP-15451-00-00

(QTY 1) NICHE 519-KGS2332K Gasket Kit

Substitute For OEM Part Numbers(s): 5LP-15455-00-00, 1WG-12439-00-00

(QTY 1) NICHE 519-KPS2294T Wiseco Piston Kit

Substitute For OEM Part Numbers(s): 2C6-11638-00-00, 2C6-11636-00-00

Compatible with the Following Vehicles:

Yamaha Raptor 660R Special Edition: 2005
Yamaha Raptor 660R Limited Edition: 2002-2004
Yamaha Raptor 660R: 2001-2005
