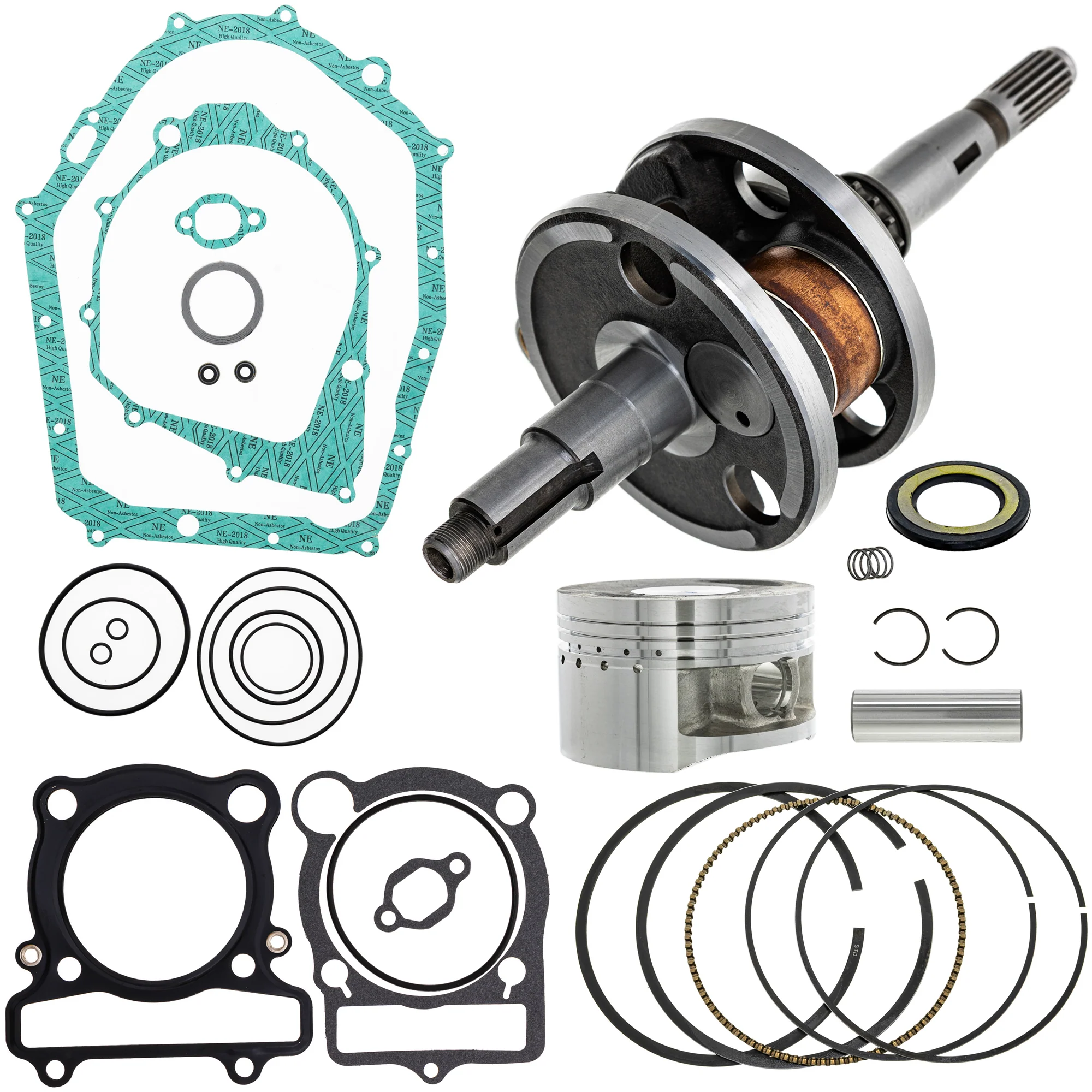

MK1015480 Forged Crankshaft Piston Gasket Kit Product Info:

• Crankshaft Number of Bearings: 2, Number of Seals: 1, Connecting Rod Length (Center to enter)(mm): 112.5mm
• Connecting Rod Big End Width (mm): 20mm, Connecting Rod Big End (Inner Diameter)(mm): 41mm
• Connecting Rod Small End Width (mm): 20mm, Connecting Rod Small End (Inner Diameter)(mm): 19mm
• Piston Standard Bore Size 83mm; Material Aluminum Alloy; Surface Coating None; Type Dish

Included in This Kit:

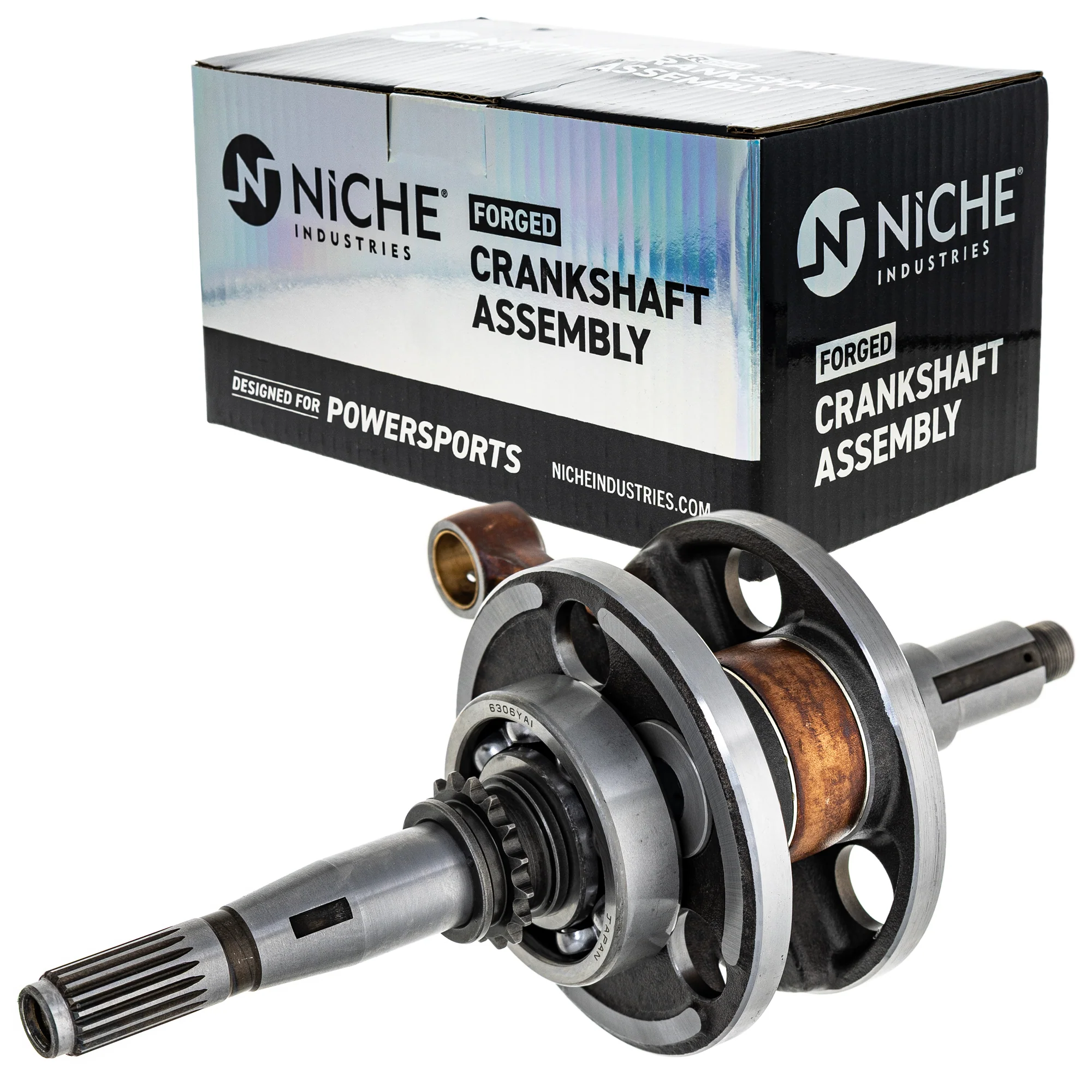

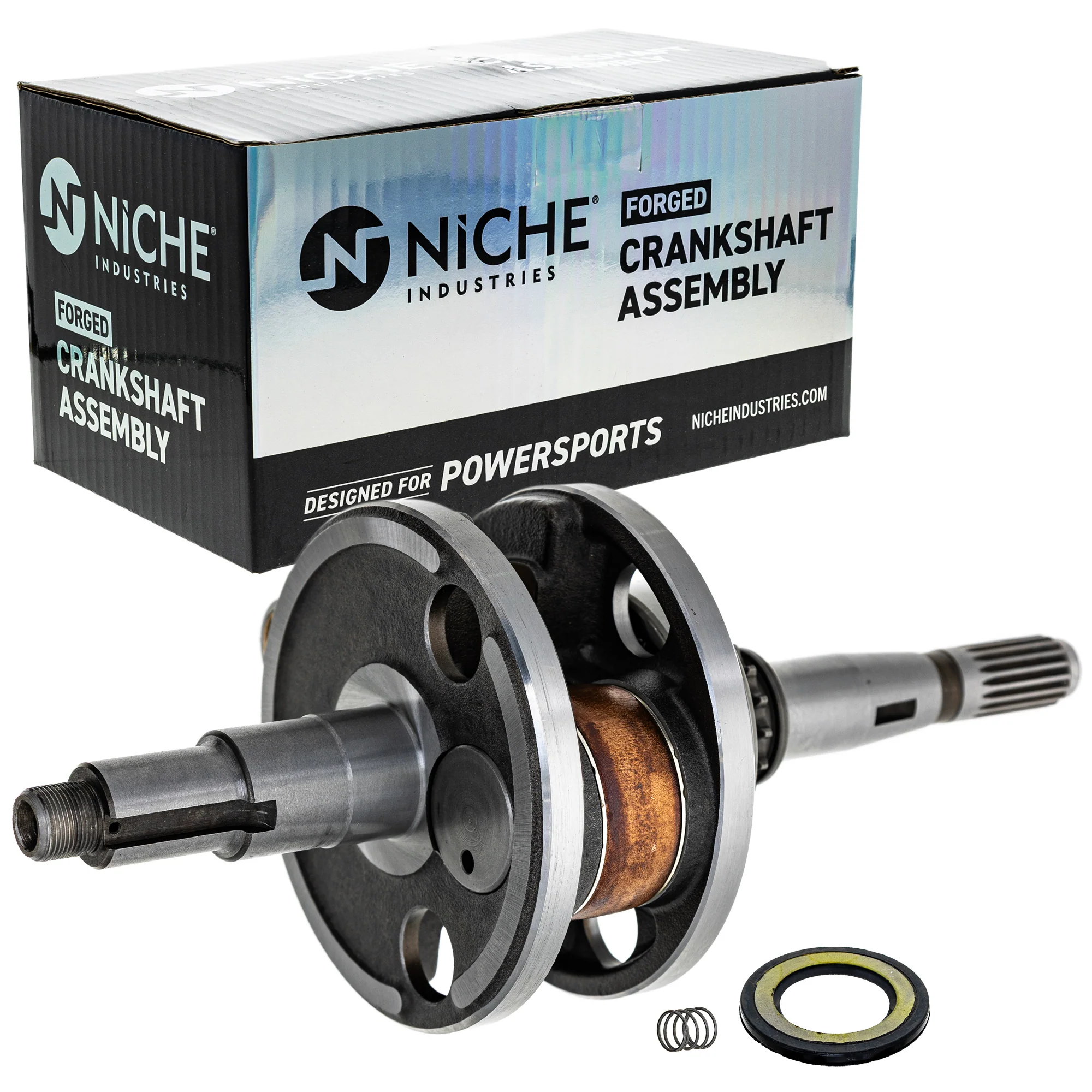

(QTY 1) NICHE 519-CCS2260H Forged Crankshaft Assembly

Substitute For OEM Part Numbers(s): 1UY-11400-00-00

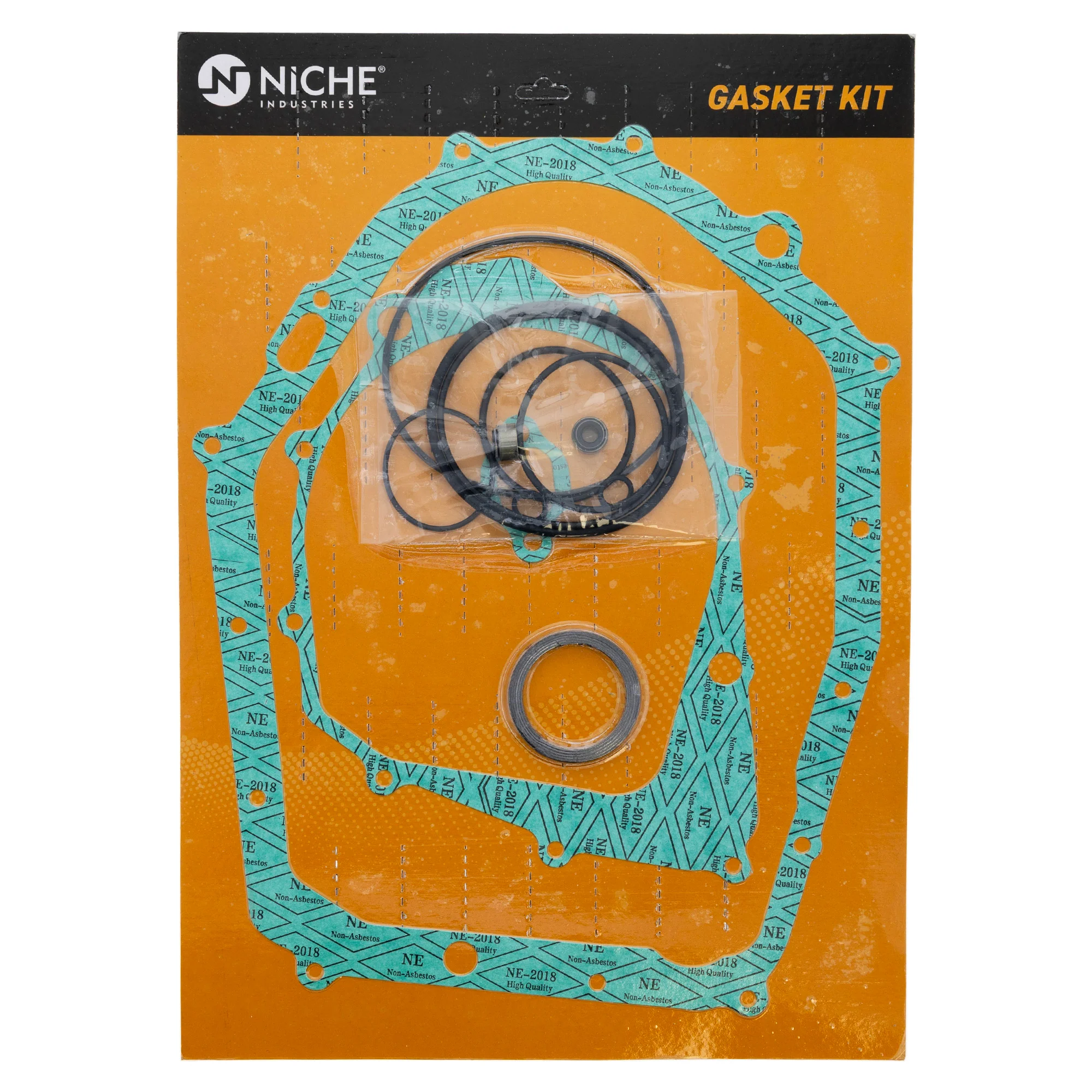

(QTY 1) NICHE 519-KGS2326K Gasket Kit

Substitute For OEM Part Numbers(s): 3GD-15461-00-00, 3GD-15451-00-00

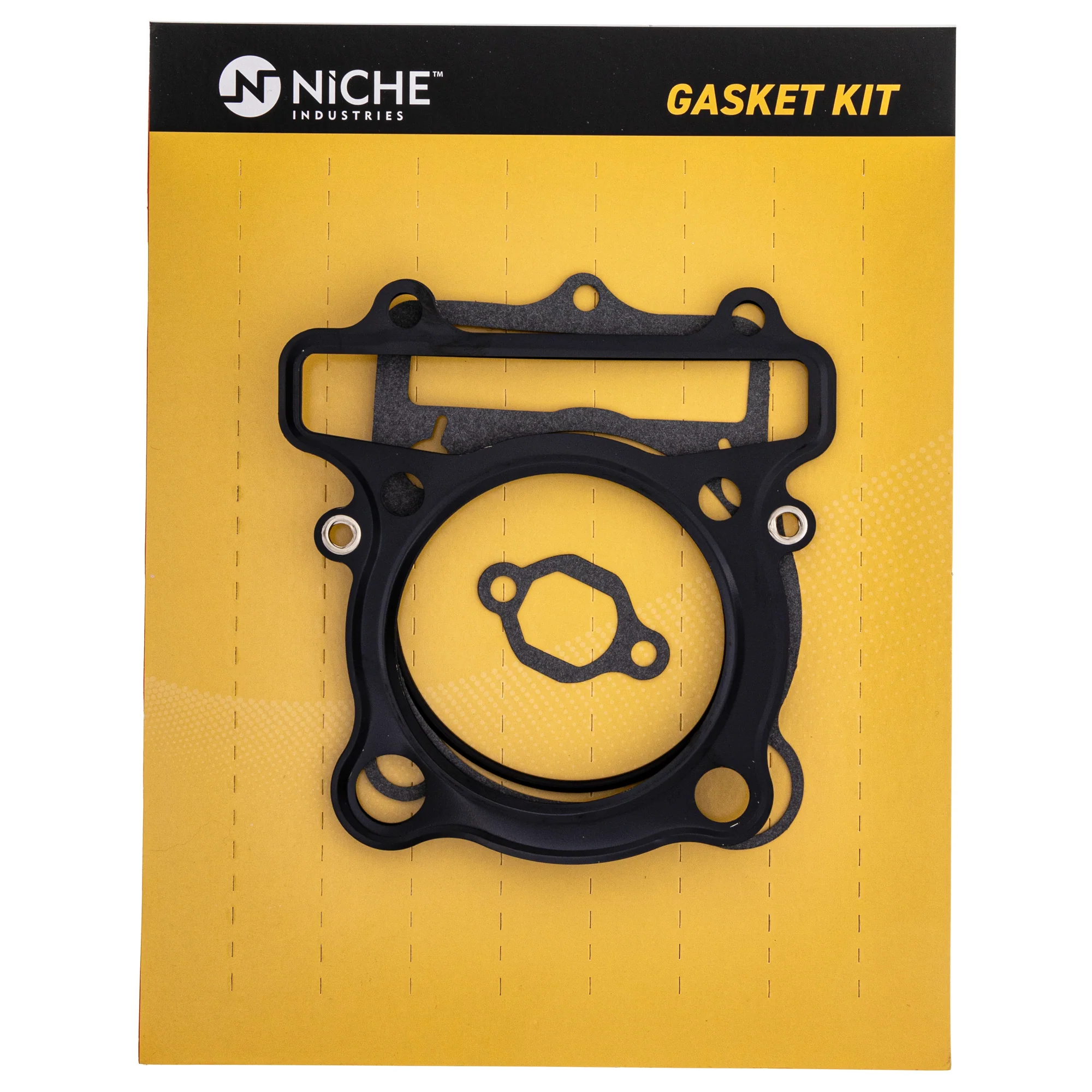

(QTY 1) NICHE 519-KGS2221K Cylinder Head & Base Gasket Kit

Substitute For OEM Part Numbers(s): 93210-86509-00, 4KB-11351-00-00, 3GD-12213-00-00, 3GD-11351-00-00, 1UY-11181-01-00, 1UY-11181-00-00

(QTY 1) NICHE 519-KPS2220T Piston Kit

Substitute For OEM Part Numbers(s): 5UH-11638-00-00, 5UH-11636-00-00, 5UH-11631-00-C0, 1YW-11638-01-00, 1YW-11636-01-00, 1YW-11631-01-Y0, 1UY-11638-01-00, 1UY-11636-01-00, 1UY-11631-01-Y0

Compatible with the Following Vehicles:

Yamaha Warrior 350: 1987-2004
Yamaha Raptor 350 Special Edition II: 2007
Yamaha Raptor 350 Special Edition: 2005-2007
Yamaha Raptor 350: 2004-2013
