MK1009347 Axle with Wheel Bearing and Seal Kit Product Info:

• Rear Axle Compressed Length 19 9/16, Inboard Splines 21T, Inboard Spline Diameter 2 11/16, Outboard Splines 21T, Outboard Spline Diameter 2 3/4, Shaft Diameter 13/16, Thread Measurement M18x1.5

Included in This Kit:

(QTY 2) NICHE 519-CBB2263R Ball Bearing

Substitute For OEM Part Numbers(s): 0402-275, 0402-085

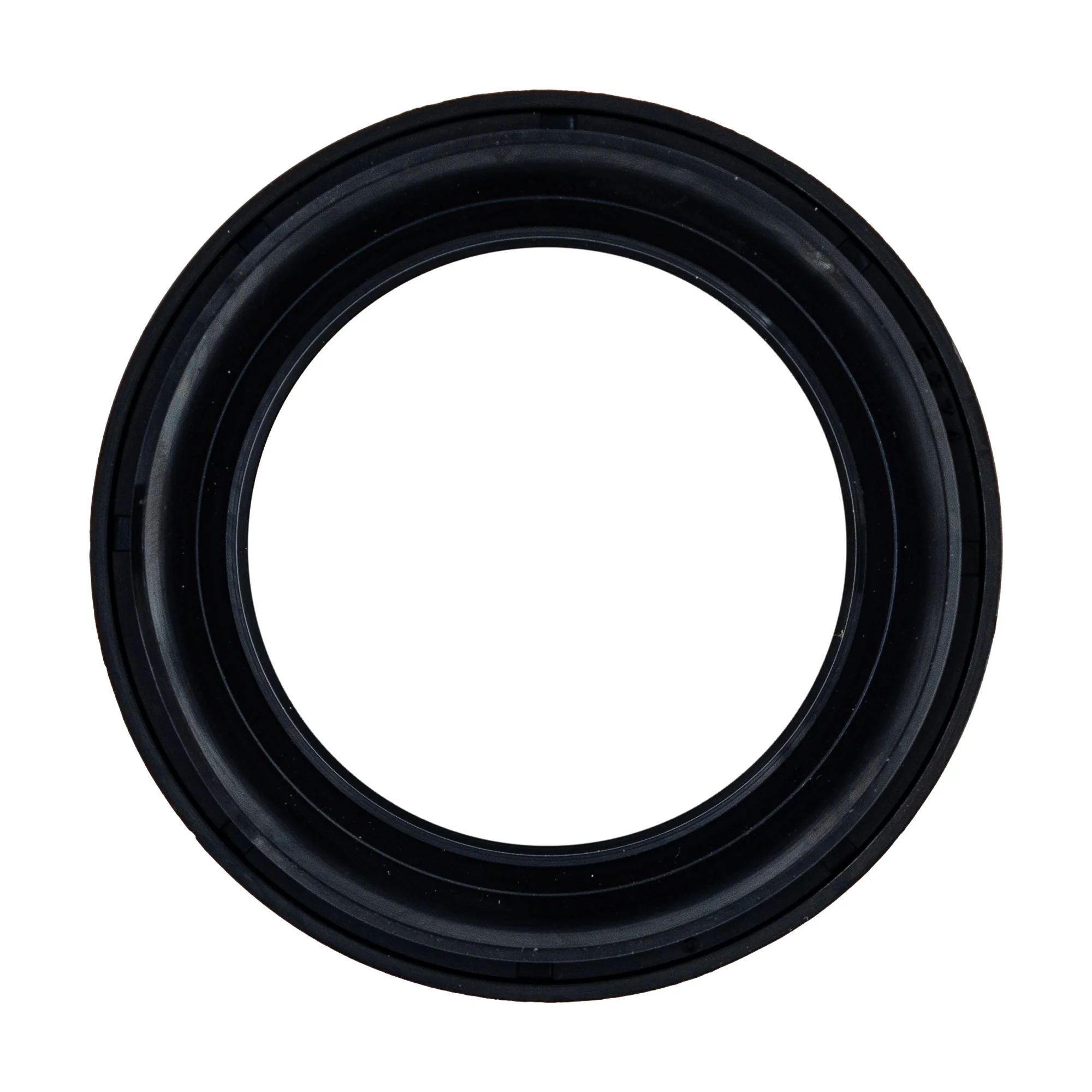

(QTY 2) NICHE 519-CSE2227A Seal Type TCY 40x58x7/12

Substitute For OEM Part Numbers(s): 91209-HN2-003, 91209-HA7-773, 91209-HA7-772, 91209-HA7-771, 2402-610, 09283-40018, 0402-069

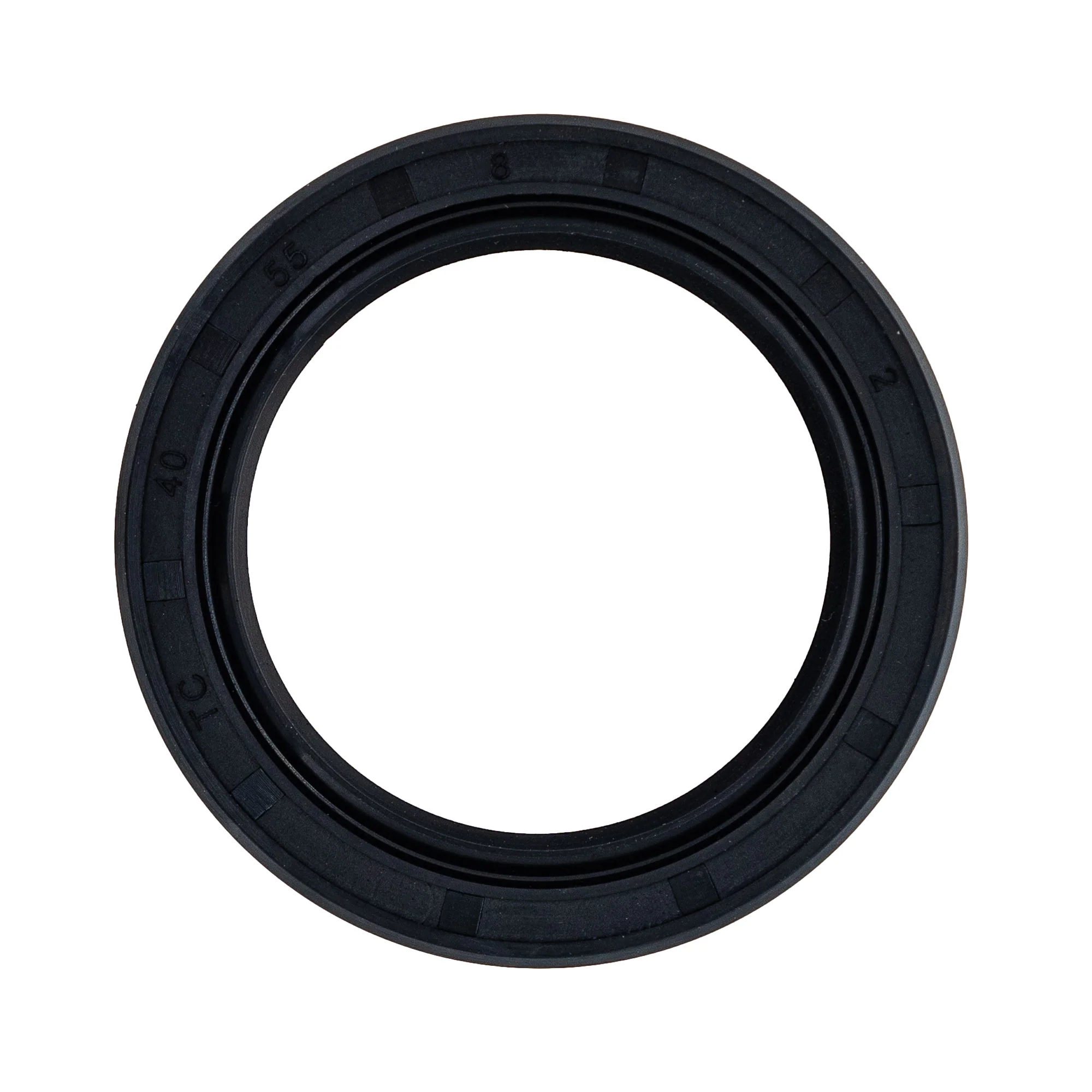

(QTY 2) NICHE 519-CSE2276A Seal Type TC 40x55x8

Substitute For OEM Part Numbers(s): 93110-33022-00, 92049-1376

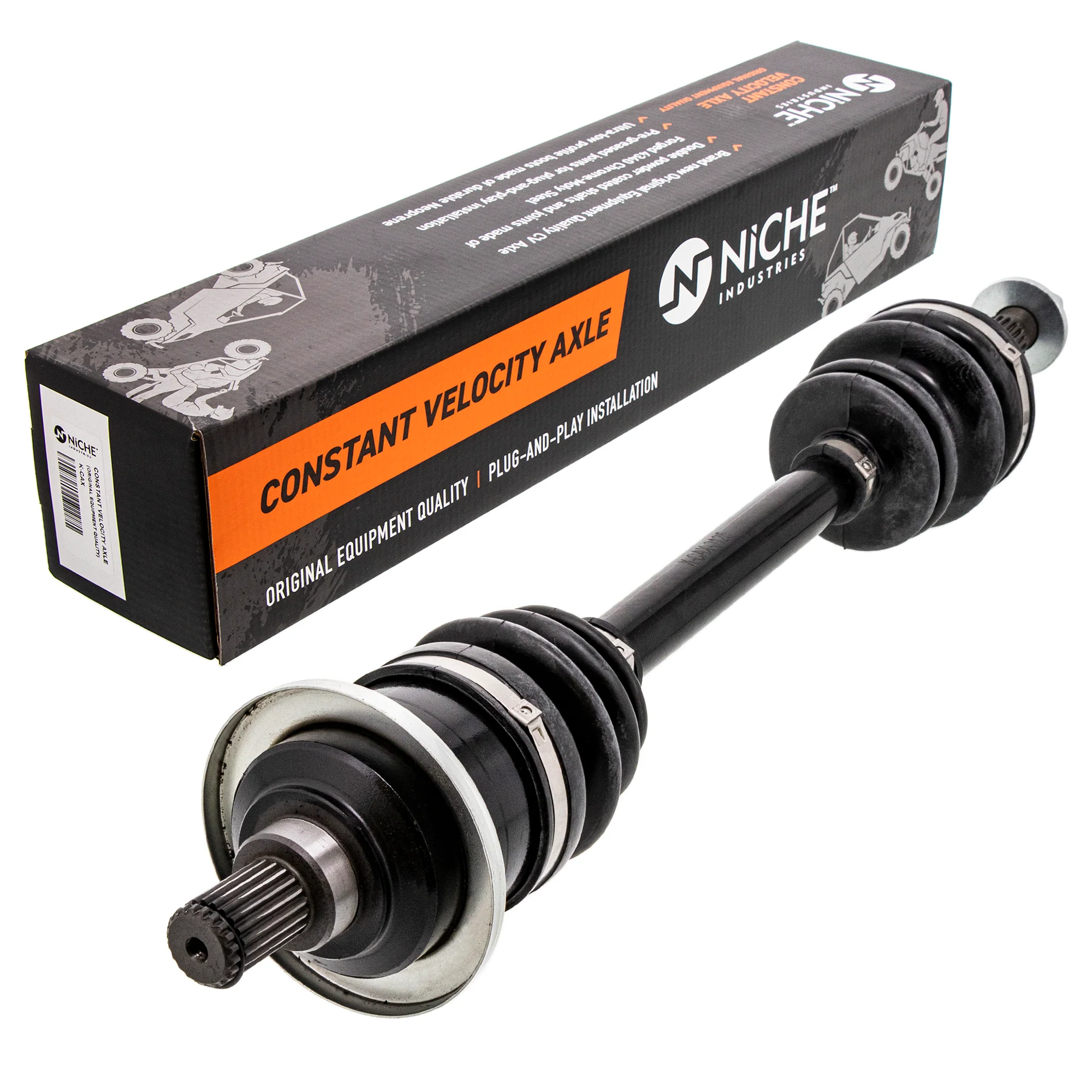

(QTY 2) NICHE 519-KCA2347X Front Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 1502-530, 1502-528, 0402-987, 0402-365

Compatible with the Following Vehicles:

Arctic Cat 500 TBX Automatic: 2002
Arctic Cat 400 MRP Automatic: 2004
Arctic Cat 400 MRP: 2004
Arctic Cat 400 Automatic: 2003-2004
Arctic Cat 400: 2002-2004
Arctic Cat 375 2X4: 2002
Arctic Cat 375: 2002
Arctic Cat 300 MRP: 2004
Arctic Cat 300 2X4: 2002-2003
Arctic Cat 300: 2002-2004
Arctic Cat 250 2X4: 2002-2003
Arctic Cat 250: 2002-2004
