MK1009412 Axle with Wheel Bearing and Seal Kit Product Info:

• NICHE Bearing 30x60x37; Diameters Inner (ID) 30mm; Outer (OD) 60mm; Height 37mm
• Axle Compressed Length 26 13/16, Inboard Splines 24T, Inboard Spline Diameter 3 1/4, Outboard Splines 26T, Outboard Spline Diameter 3 1/8, Shaft Diameter 15/16, Thread Measurement M18x1.5

Included in This Kit:

(QTY 1) NICHE 519-CBB2261R Double Row, Angular Contact, Ball Bearing

Substitute For OEM Part Numbers(s): 92045-0905, 92045-0762, 706000635, 706000320, 705400088, 293370019, 293350150, 293350126, 293350118, 293350040

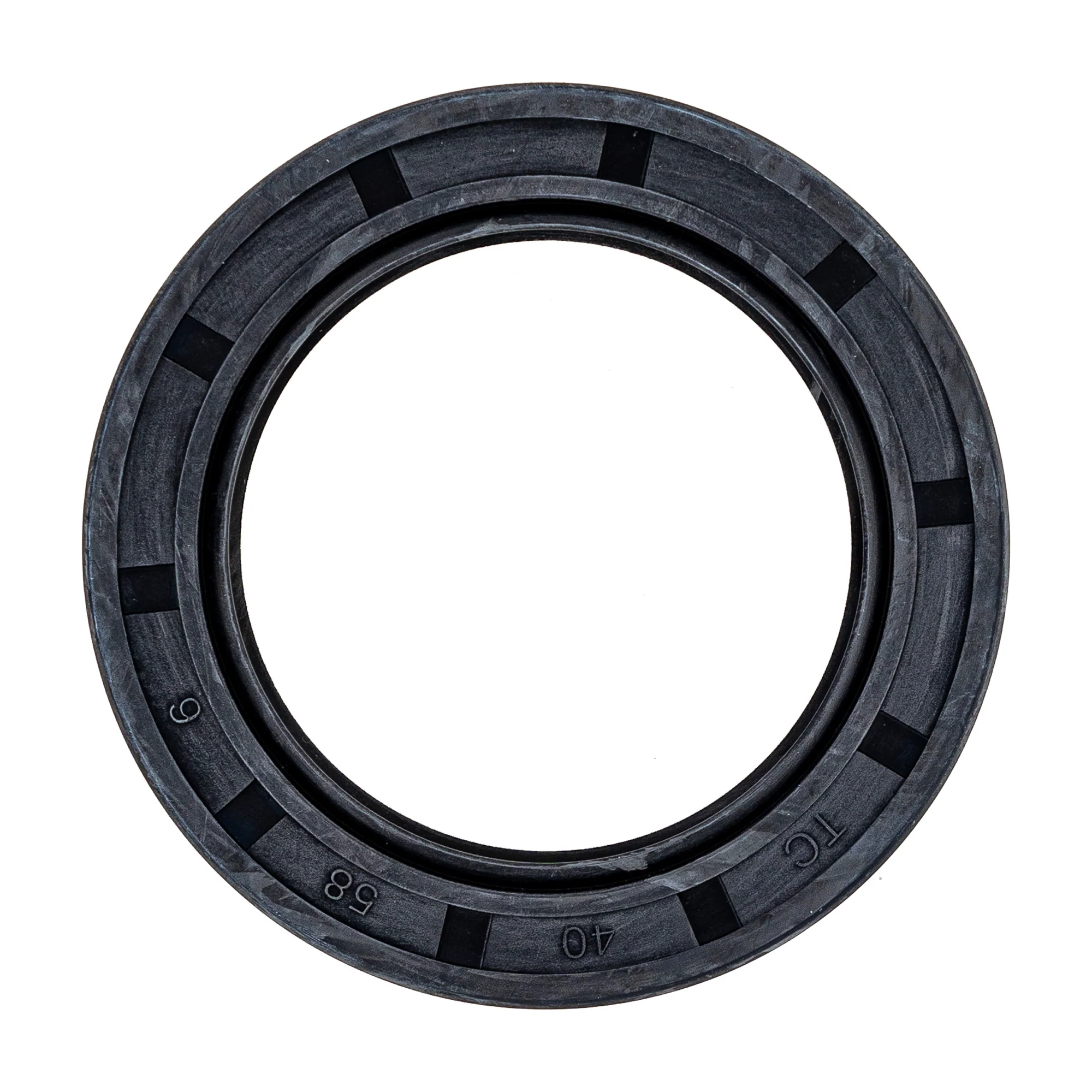

(QTY 1) NICHE 519-CSE2245A Seal Type TC 40x58x6

Substitute For OEM Part Numbers(s): 09283-40018

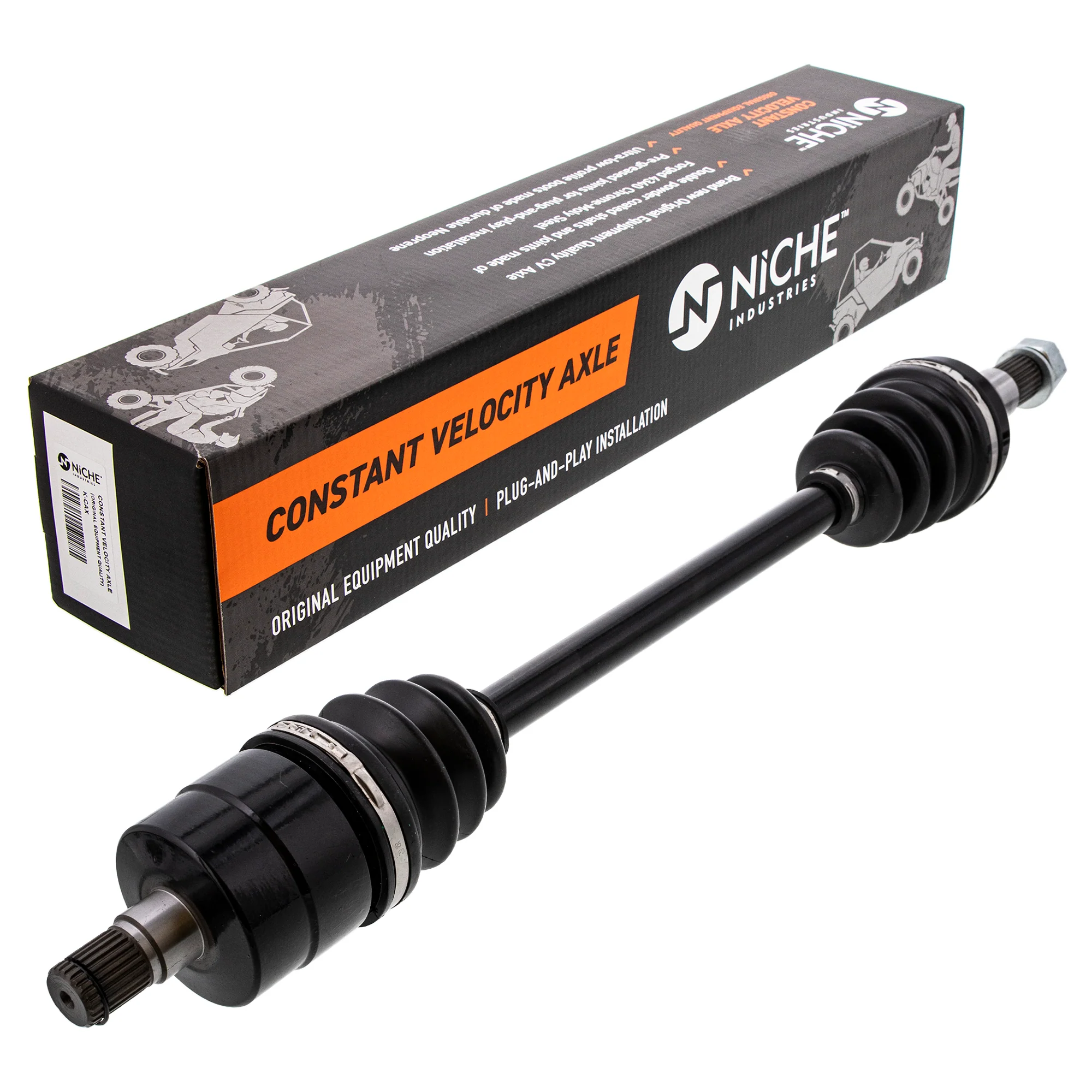

(QTY 1) NICHE 519-KCA2337X Rear Half Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 705502359, 705501481, 705501456, 705500960

Compatible with the Following Vehicles:

Arctic Cat 500 TBX Automatic: 2002
Arctic Cat 400 MRP Automatic: 2004
Arctic Cat 400 MRP: 2004
Arctic Cat 400 Automatic: 2003-2004
Arctic Cat 400: 2002-2004
Arctic Cat 375 2X4: 2002
Arctic Cat 375: 2002
Arctic Cat 300 MRP: 2004
Arctic Cat 300 2X4: 2002-2003
Arctic Cat 300: 2002-2004
Arctic Cat 250 2X4: 2002-2003
Arctic Cat 250: 2002-2004
