MK1009390 Axle and Wheel Bearing Kit Product Info:

• Axle Compressed Length 21 5/8, Inboard Splines 21T, Inboard Spline Diameter 2 11/16, Outboard Splines 27T, Outboard Spline Diameter 2 7/16, Shaft Diameter 7/8, Thread Measurement M18x1.5

Included in This Kit:

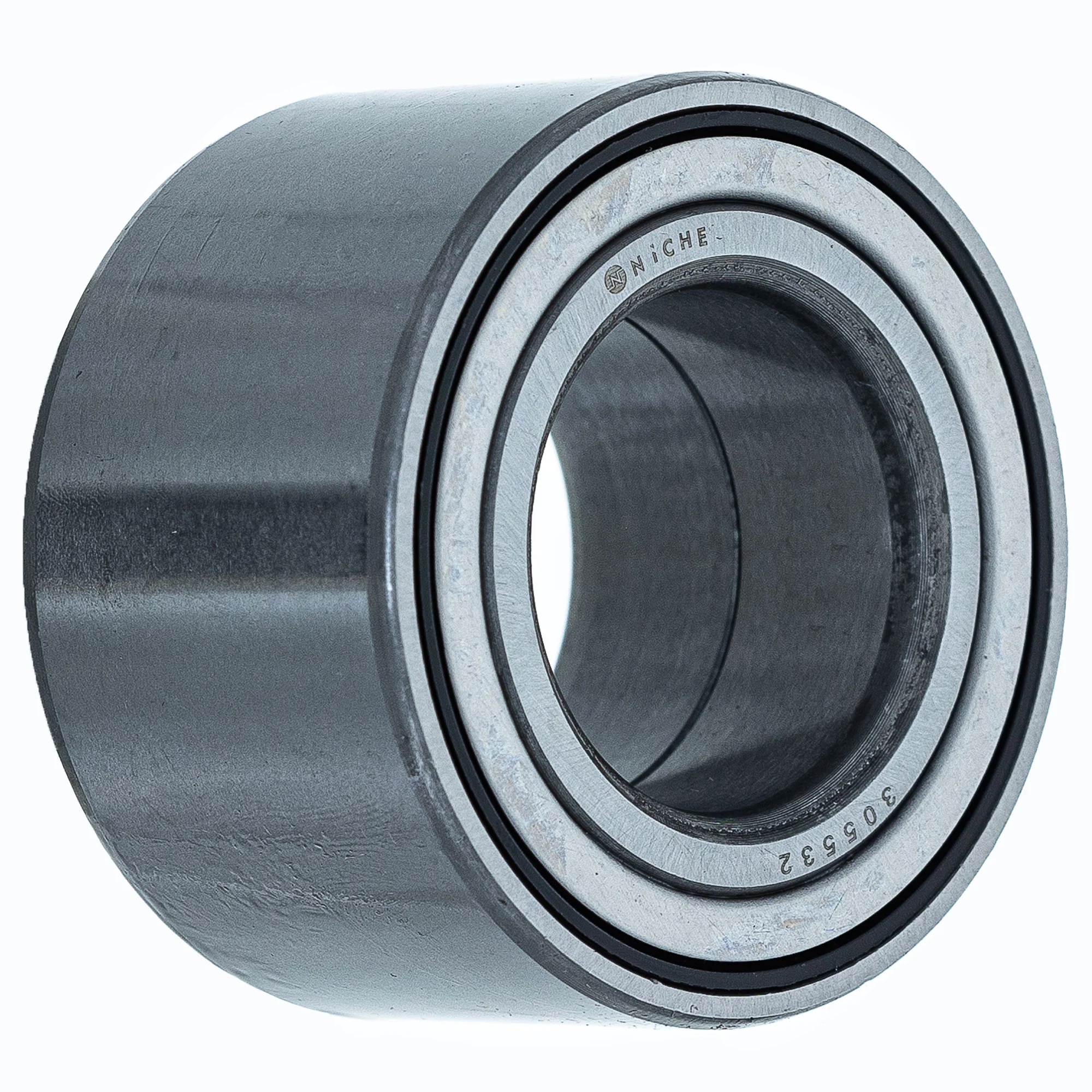

(QTY 1) NICHE 519-CBB2246R Double Row, Angular Contact, Ball Bearing

Substitute For OEM Part Numbers(s): 93305-00602-00, 93305-00601-00, 92045-0800, 92045-0123, 3323-119, 21259-31G00, 1402-809, 1402-027, 109-2064, 103-3303

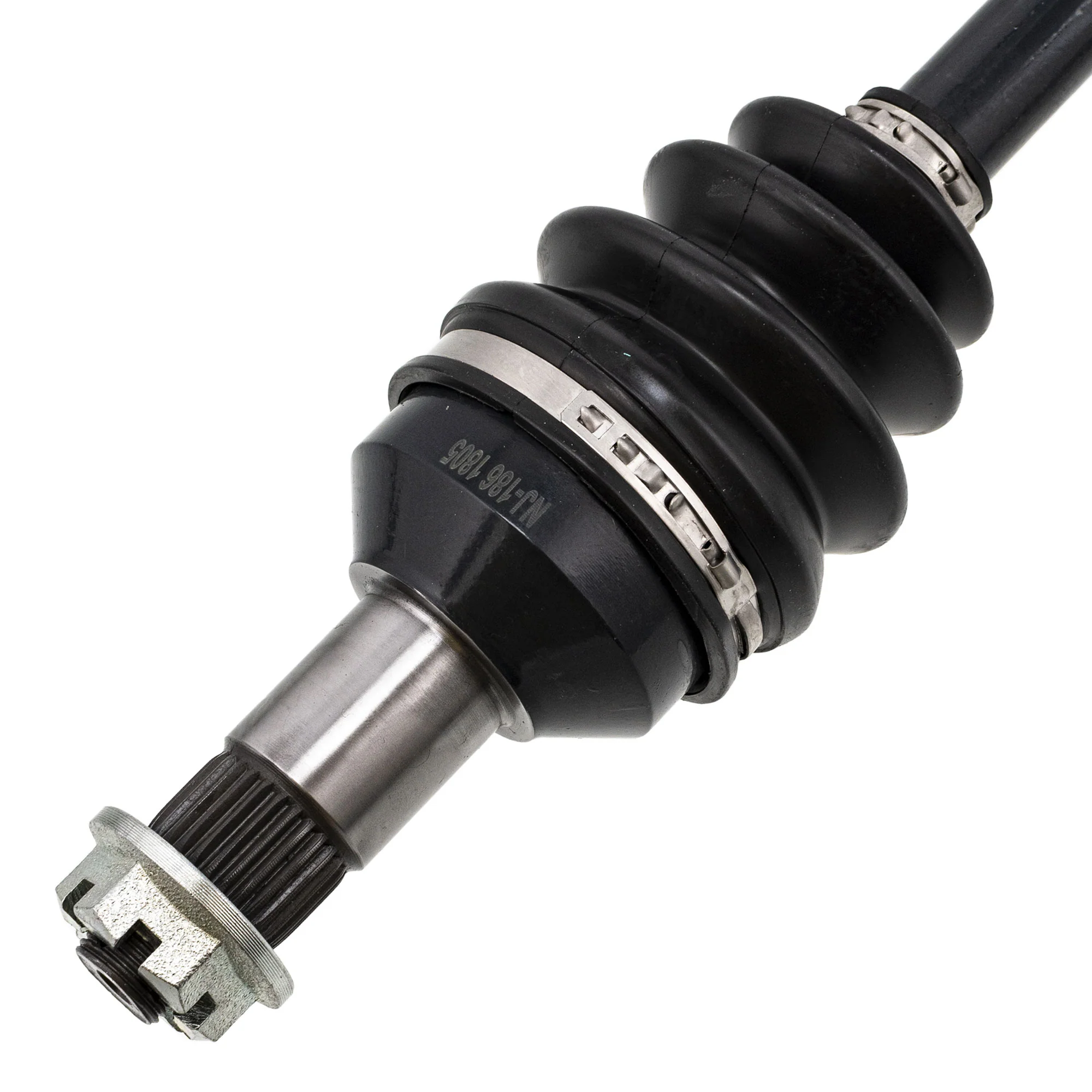

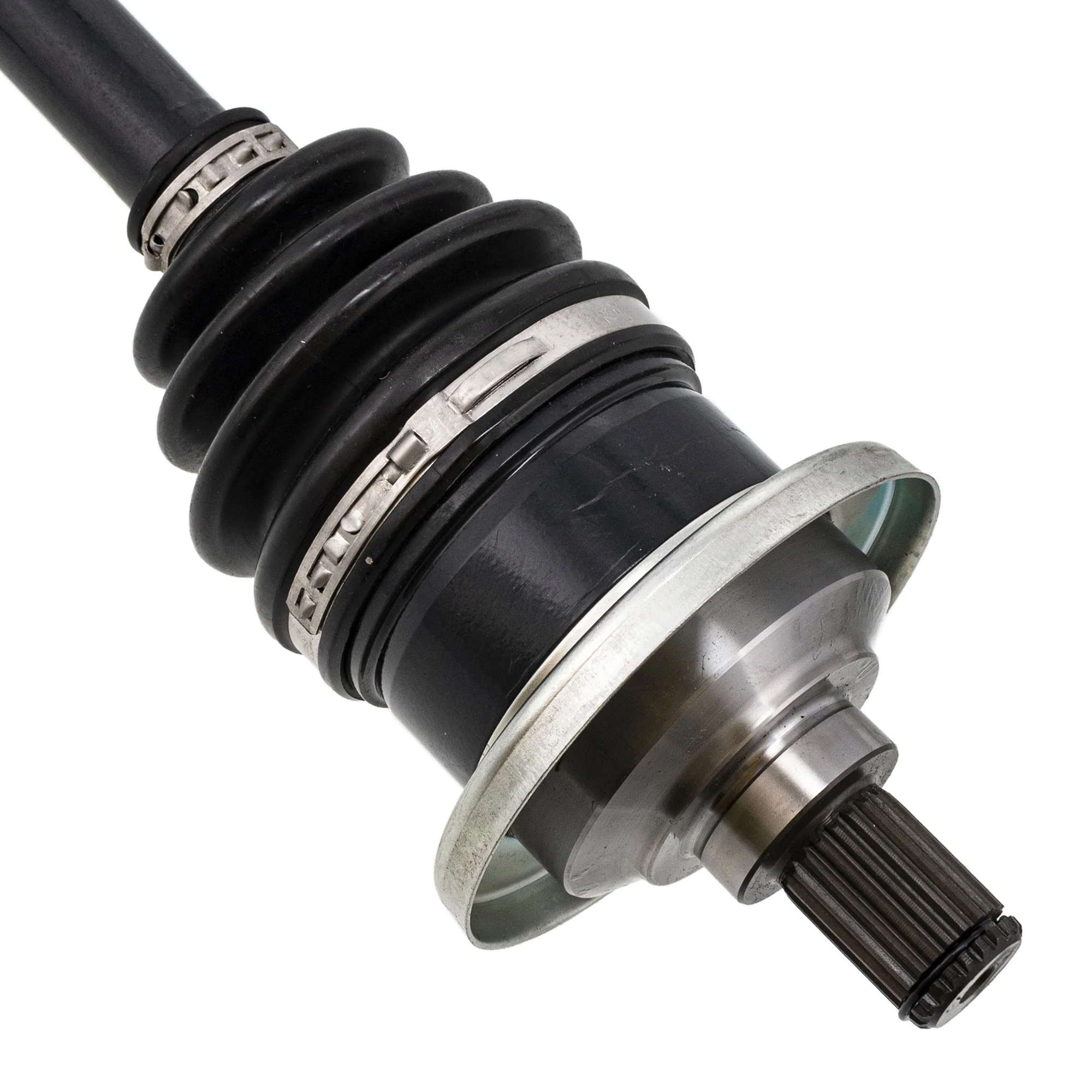

(QTY 1) NICHE 519-KCA2326X Front Right Half Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 1502-539, 1502-533, 0502-542

Compatible with the Following Vehicles:

Yamaha Grizzly 700 Special Edition FI EPS 4X4: 2015
Yamaha Grizzly 700 Hunter Edition FI 4X4: 2014-2015
Yamaha Grizzly 700 FI EPS 4X4: 2014-2015
Yamaha Grizzly 700 FI 4X4: 2014-2015
Arctic Cat 650 V2 Limited: 2005
Arctic Cat 650 V2: 2005
Arctic Cat 650 H1 Limited: 2005
Arctic Cat 500 TRV Automatic: 2005
Arctic Cat 500 TBX Automatic: 2005
Arctic Cat 500 Automatic Limited: 2005
Arctic Cat 500 Automatic: 2005
Arctic Cat 500: 2005
Arctic Cat 400 TBX Automatic: 2005
Arctic Cat 400 Limited Automatic: 2005
Arctic Cat 400 Automatic: 2005
Arctic Cat 400: 2005
