MK1009403 Axle with Wheel Bearing and Seal Kit Product Info:

• NICHE Bearing 30x60x37; Diameters Inner (ID) 30mm; Outer (OD) 60mm; Height 37mm
• Front Left Compressed Length 25 3/4, Inboard Splines 21T, Outboard Splines 26T, Shaft Diameter 13/16; Front Right Compressed Length 25 3/4, Inboard Splines 21T, Outboard Splines 26T, Shaft Diameter 13/16

Included in This Kit:

(QTY 2) NICHE 519-CBB2261R Double Row, Angular Contact, Ball Bearing

Substitute For OEM Part Numbers(s): 92045-0905, 92045-0762, 706000635, 706000320, 705400088, 293370019, 293350150, 293350126, 293350118, 293350040

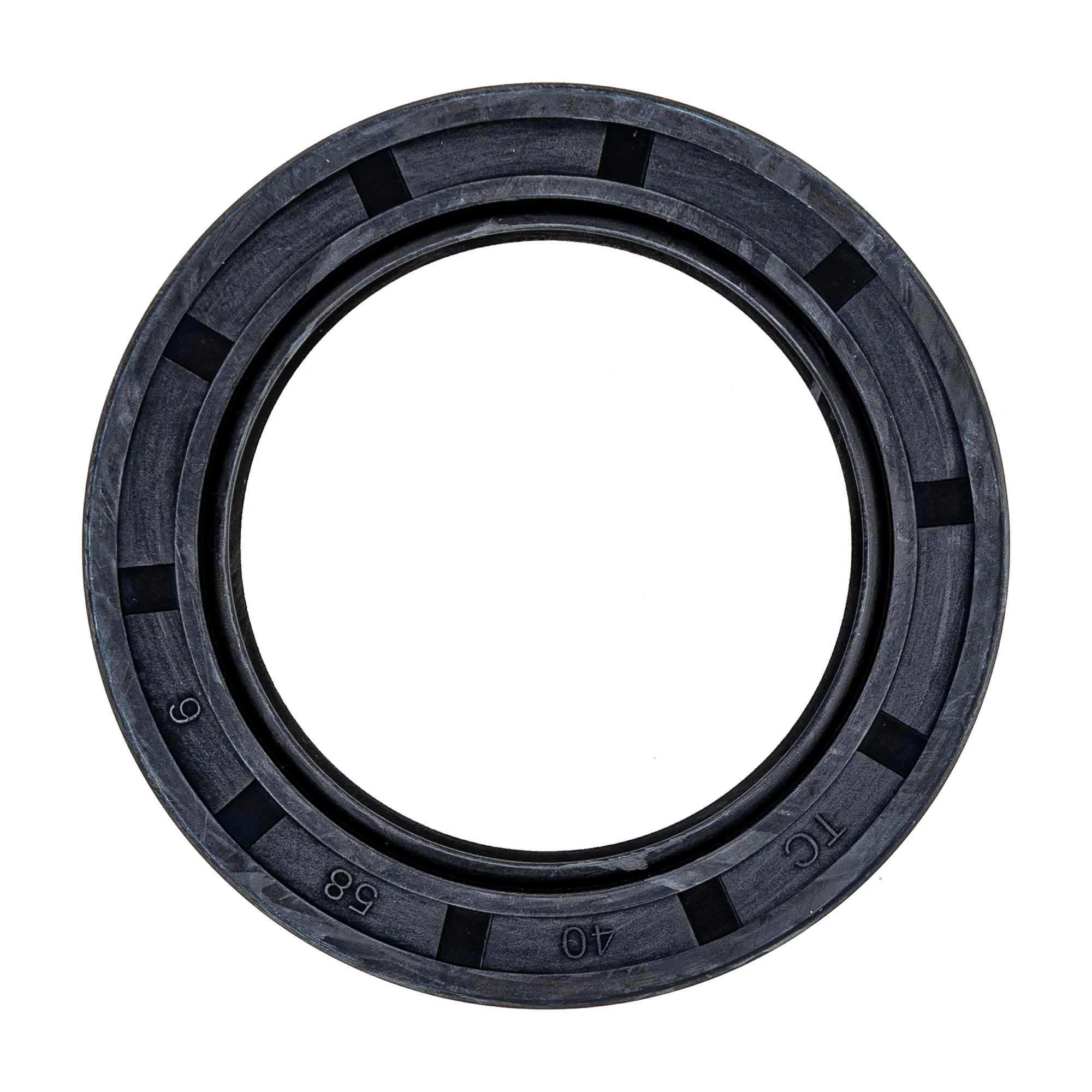

(QTY 2) NICHE 519-CSE2245A Seal Type TC 40x58x6

Substitute For OEM Part Numbers(s): 09283-40018

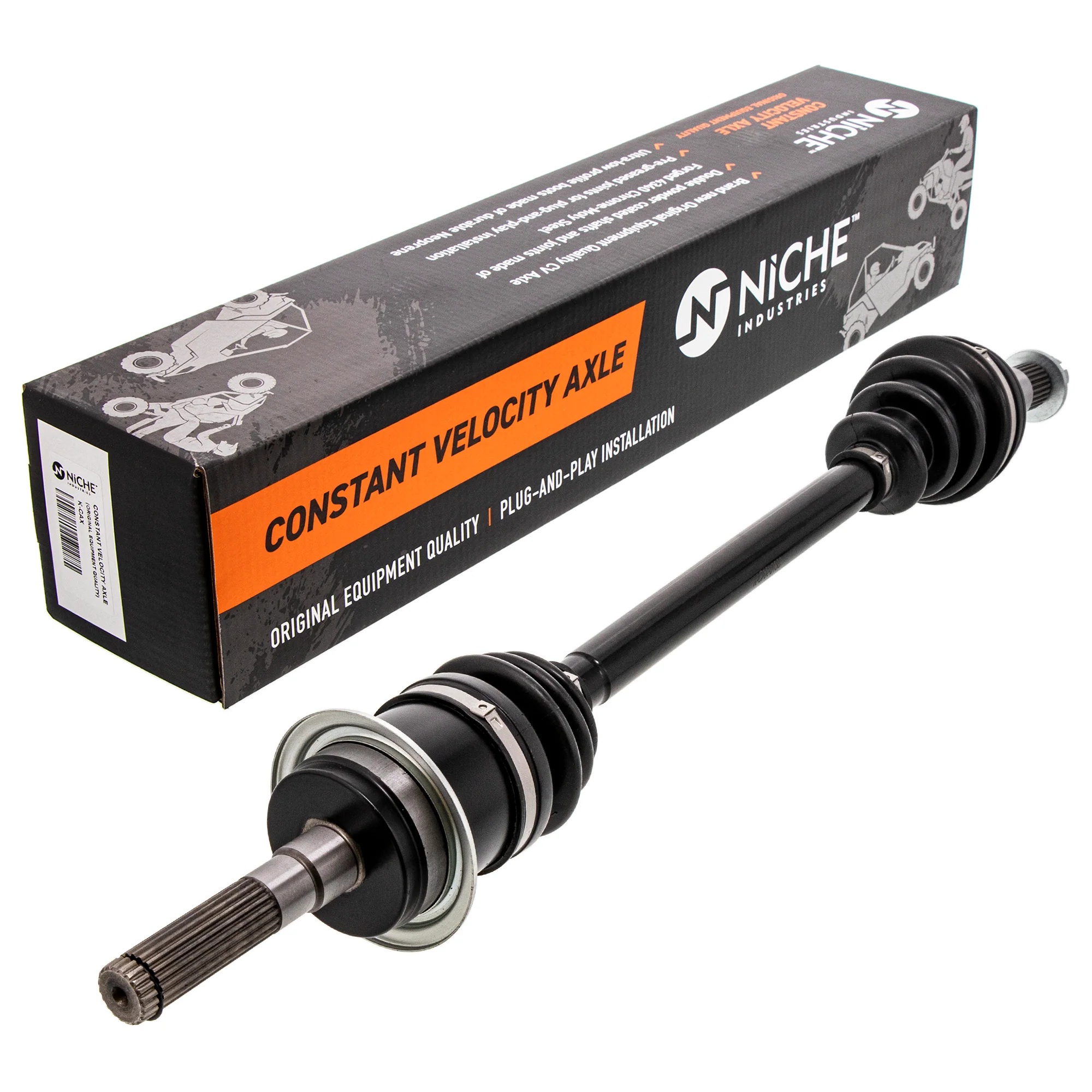

(QTY 1) NICHE 519-KCA2357X Front Left Half Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 705401871, 705401653, 705401105, 705400953

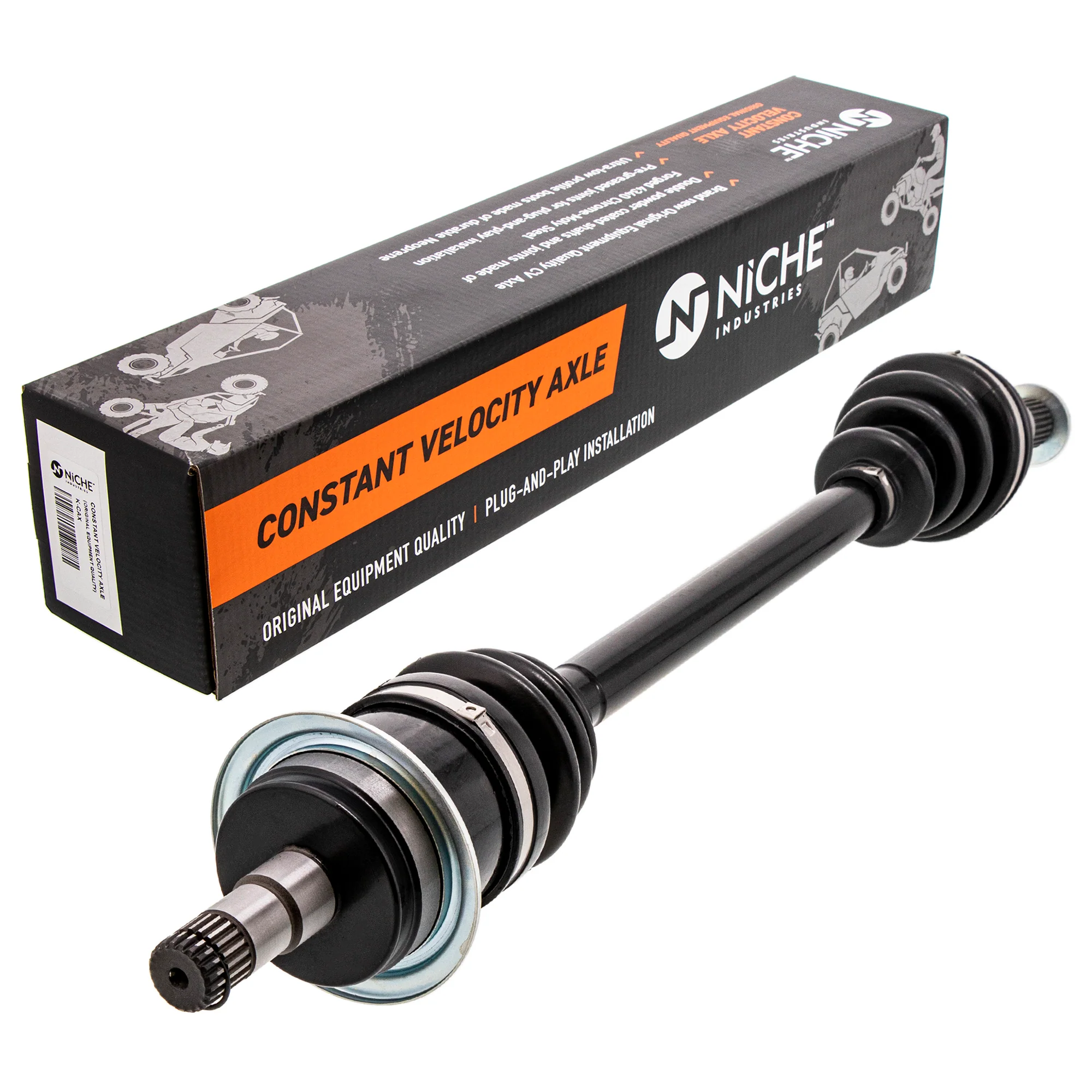

(QTY 1) NICHE 519-KCA2358X Front Right Half Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 705401872, 705401654, 705401106, 705400952

Compatible with the Following Vehicles:

Arctic Cat 650 V2 Limited: 2005
Arctic Cat 650 V2: 2005
Arctic Cat 650 H1 Limited: 2005
Arctic Cat 650 H1: 2005
Arctic Cat 500 TBX Automatic: 2005
Arctic Cat 500 Automatic Limited: 2005
Arctic Cat 500 Automatic: 2005
Arctic Cat 500: 2005
Arctic Cat 400 Limited Automatic: 2005
Arctic Cat 400 Automatic: 2005
Arctic Cat 400: 2005
